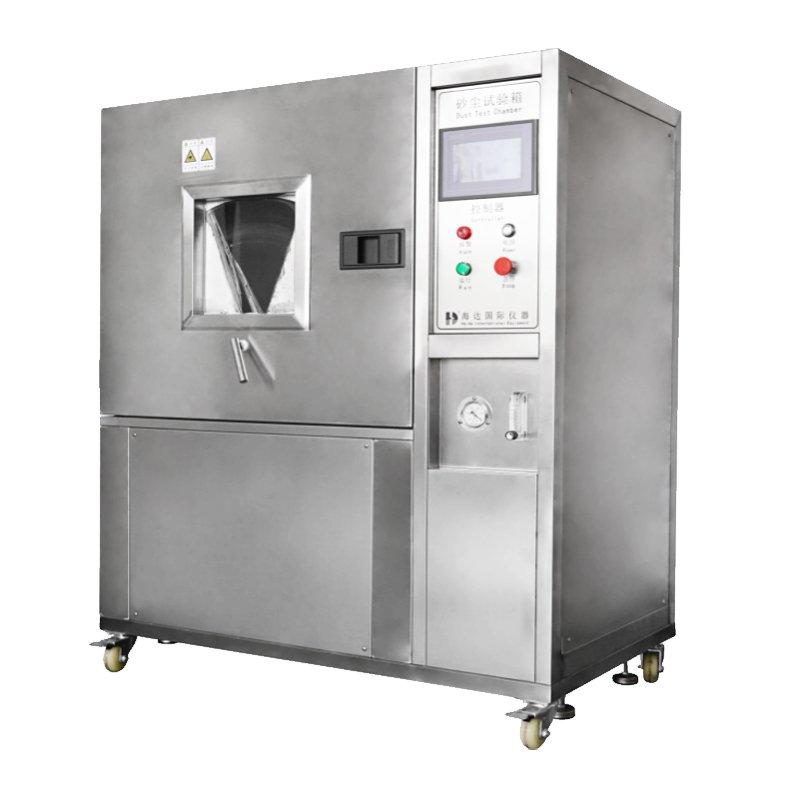

Dust Test Chamber – IP5X/6X

Kategori :

Ruang uji debu dapat secara akurat mensimulasikan kondisi debu di lingkungan alami, dan lingkungan debu yang disimulasikan sesuai dengan persyaratan pengujian IPX5/IPX6. Ruang uji debu pasir terutama digunakan oleh laboratorium atau produsen untuk mendeteksi kemampuan pelindung casing produk terhadap debu dan untuk menentukan tingkat perlindungan debu.

Bagikan Produk

Dust Test Chamber Parameter

ItemSpecification
Internal dimension800W*800D*800Hmm
External dimension1300W*1000D*1700Hmm
Test sampleSize W20cm- L30cm-D15cm, weight 0.5kg
Chamber materialSUS304 Stainless steel
Specifications of square mesh sieveMesh hole 75um, mesh metal wire diameter 50um
Talcum powder amount2kg/ m³
Airflow speedNo more than 2m/s
DoorLeft open door with tempered glass door
ControllerPLC Touch Screen controller, programmable to set as below cycle:

a. Blowing dust time (Stop/Blow) m/s

b. Cycle time: can be adjusted

c. Pre-set test time: 0s ~99m99s

Vacuum systemPressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump
Vacuum pump capacity60-600 L/H
FanCentrifugal fan
Safety protection devicesMeter over-temperature function, Phase shortage protection, Power short-circuit protection



Chamber Design Features

1, Chamber material: SUS #304 stainless steel;

2, Transparent window is convenient to observe specimen during testing;

3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;

4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.
