| No. | technical name | technical parameter |
| 1 | Maximum test force ( kN ) | 1 |
| 2 | Test force measurement range | 0.4%-100% of the maximum test force |
| 3 | Indication error below 200N (N) | ± 2 |
| 4 | Relative error of indication value above 200N | ± 1% |
| 5 | When the test force is long, the relative error of the indication value is automatically maintained | ≤±1%FN |
| 6 | Zero return error of the digital display device of the test force indicating value | ≤±0.2%FN |
| 7 | Determination of the maximum friction torque (N m) | 2.5 |
| 8 | Relative error of friction torque indication | ± 2% |
| 9 | Friction Load Cell (N) | 50 |
| 10 | Friction arm distance (mm) | 50 |
| 11 | Zero return error of digital display device for friction torque display value | ≤±0.2%FN |
| 12 | CVT system (r/min) | 1 2000 _ |
| 13 | Special deceleration system (r/min) | 0.05 20 _ |
| 14 | Spindle speed error above 100r/min | Not more than ±5rpm |
| 15 | Spindle speed error below 100r/min | Not more than ±1rpm |
| 16 | test medium | Oil, water, mud, abrasive, etc. |
| 17 | Heater working range (℃) | Room temperature～260 |
| 18 | Disc heating plate | φ65，220V，250W |
| 19 | Jacket heater | φ70×34，220V，300W |
| 20 | Temperature measurement control accuracy (℃) | ±2 |
| 21 | Testing machine spindle taper | 1 7 _ |
| 22 | The maximum distance between the main shaft of the testing machine and the lower sub-disc (mm) | 75 _ |
| 23 | Testing machine spindle control mode | Manual control Time control Revolution control Friction torque control |
| 24 | Testing machine time display and control range | 1s~9999s（min） |
| 25 | Testing machine revolution display and control range | 0 9999999 _ |
| 26 | The maximum torque output by the main motor of the testing machine (N m) | 5 |
| 27 | Dimensions of the testing machine ( length × width × height ) (mm) | 600×682×1560 |
| 28 | Testing machine mass (kg) | about 450 |

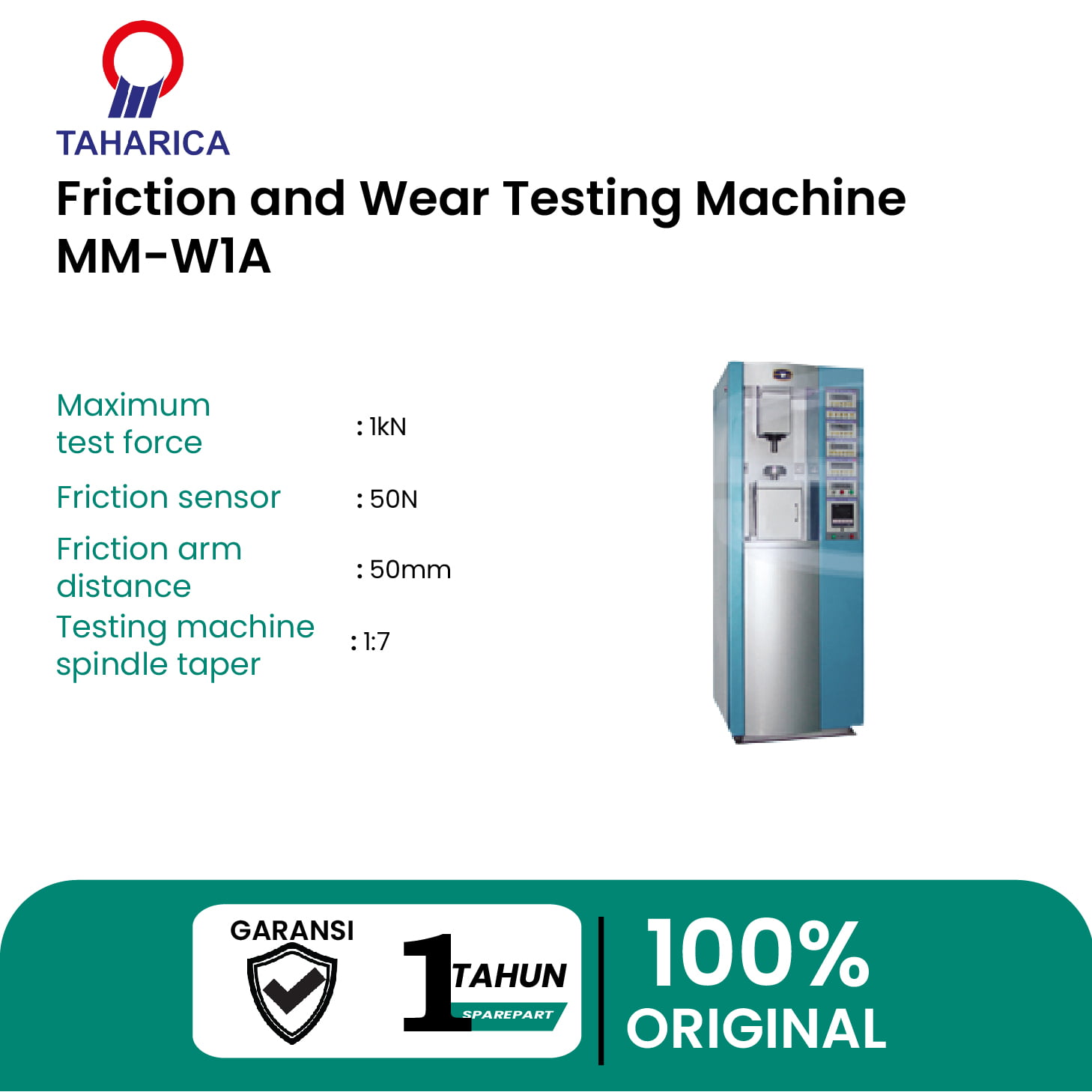

Mesin Uji Gesekan dan Keausan MM-W1A Vertical Universal Friction and Wear Testing Machine
Minta Penawaran
Alat Uji Gesekan, Alat Uji Keausan, Alat Uji Pengujian
MM-W1A mesin uji gesekan dan keausan universal vertikal, kegunaan dan fungsi utamanya mirip dengan mesin uji sampel serbaguna FALEX6 # AS (Mesin Uji Multi-Spesimen), dan perusahaan kami MM-W1 vertikal universal Penggunaan gesekan dan mesin uji keausan pada dasarnya sama.
Di bawah tekanan kontak tertentu, mesin memiliki bentuk gesekan gerakan gabungan rolling, sliding atau sliding-rolling, dan memiliki sistem pengaturan kecepatan stepless, yang dapat digunakan untuk mengevaluasi pelumas, logam, plastik, pelapis, dll. Gesekan dan keausan sifat lapisan, karet, keramik dan bahan lainnya, seperti cakram pin kecepatan rendah (dengan cakram besar dan cakram kecil, jarum tunggal dan tiga jarum) fungsi gesekan, ketahanan aus jangka panjang empat bola dan kelelahan kontak gelinding empat bola , kinerja pelumasan tiga bagian bola-perunggu, dan pengujian sifat gesekan washer dorong, cakram bola, dan selip tongkat.
