Short Description:

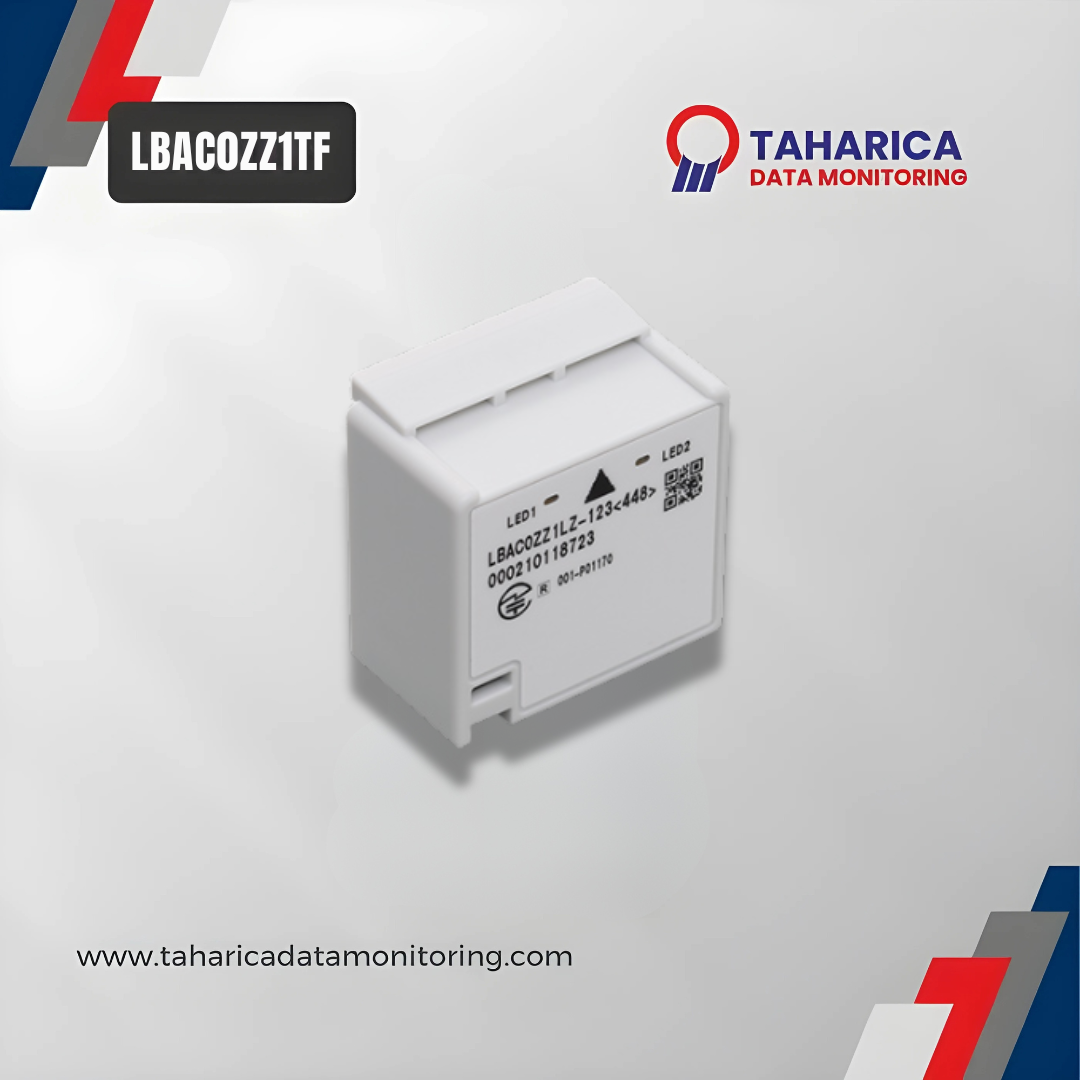

Velocity Vibration Sensor digunakan untuk mendukung pemeliharaan prediktif pada mesin berputar, seperti motor dan pompa, sehingga perawatan peralatan dapat dilakukan lebih efisien
| Spesifikasi | Detail |
|---|---|
| Dimensi | L: 38mm, W: 24mm, H: 38mm |
| Berat | 50g (termasuk baterai) |
| Antarmuka Komunikasi | Proprietary ISM sub-1GHz radio (sesuai regulasi tiap negara) |
| Parameter Pengukuran | Peak Acceleration (top 2), Frequency of Peak Acceleration (top 2), Peak Velocity (top 3), Frequency of Peak Velocity (top 3), Acceleration RMS, Velocity RMS, Kurtosis, Temperature |
| Spesifikasi Pengukuran | Absolute Max Rating: ±30G, Resolution: 28mG Detection Frequency: Acceleration 10~10,000Hz, Velocity 10~1,000Hz Detection Direction: Z axis Temperature: -10℃~85℃, Resolution: 0.1℃@25℃ |
| Akurasi Pengukuran | Vibration: ±3dB Temperature: ±1℃@25℃ |
| Lingkungan Operasional | Body (Ambient): -10℃~60℃, <90%RH (non-condensing) Sensor (Surface): -10℃~85℃, <90%RH (non-condensing) IP65 grade |
| Sumber Daya | 1x Lithium thionyl chloride battery |
| Masa Pakai Baterai | 1.5 tahun (interval laporan 1 jam pada 25℃) |
| Interval Pengukuran | 1, 5, 10, 15, 30 menit / 1, 2, 6, 12, 24 jam |
| Metode Instalasi | Magnet |
