Alat Perekam Data (Data Logger) Suhu Thermocouple 4 Channel Teknologi USB HOBO UX120-014M

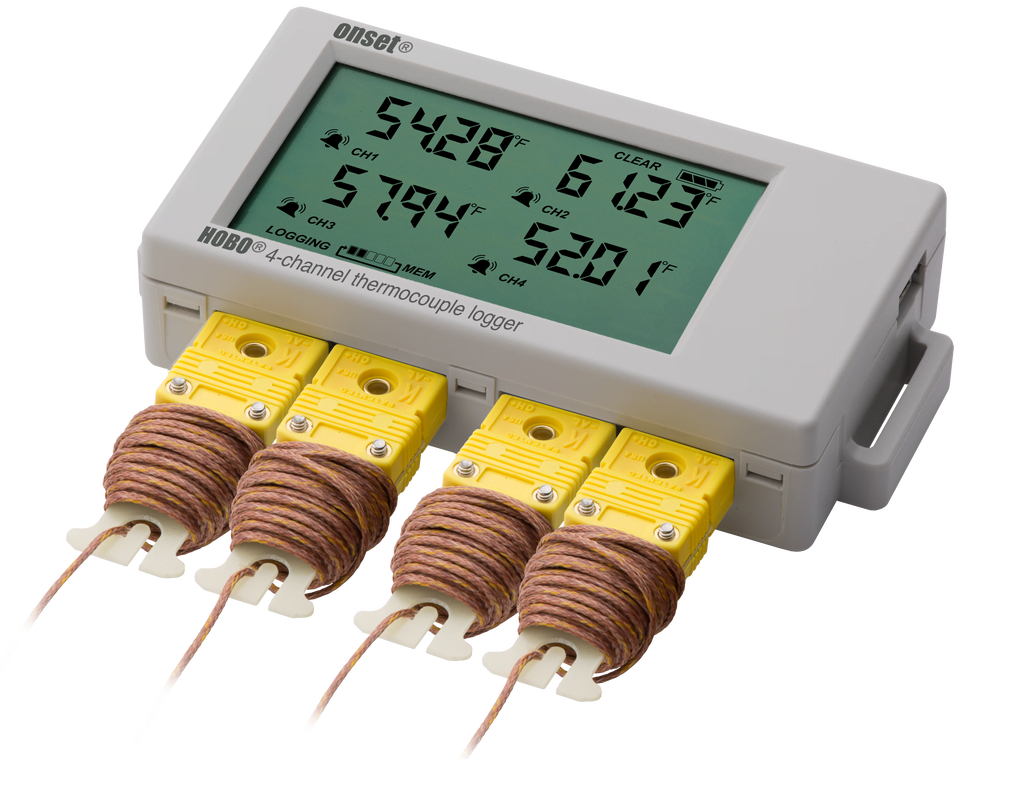

HOBO 4-Channel Thermocouple Data Logger

Data logger LCD termokopel empat saluran untuk mengukur dan merekam suhu dalam berbagai aplikasi pemantauan. Merekam suhu dari -260 hingga 1820⁰ C dan menerima hingga empat probe tipe J, K, T, E, R, S, B, atau N. Logger ini juga dilengkapi sensor suhu internal untuk mencatat suhu sekitar, yang semakin memperluas jangkauan kemungkinan aplikasi.

  • Layar LCD yang mudah dilihat mengonfirmasi operasi perekaman data dan status baterai.
  • Pembacaan suhu real-time, serta statistik deviasi minimum, maksimum, rata-rata, dan standar.
  • Alarm di layar memberi tahu Anda jika suhu melebihi ambang batas tinggi atau rendah.
  • Kapasitas memori besar yang mampu menyimpan 1,6 juta data pengukuran.
  • Firmware yang dapat diupgrade pengguna.
  • Casing pelindung opsional memungkinkan penggunaan logger di lingkungan luar ruangan.

Di lingkungan apa pencatat data ini beroperasi?
Pencatat data ini beroperasi di lingkungan dalam ruangan.

Pengukuran apa yang didukung oleh pencatat data ini?
Data logger UX120-014M mendukung pengukuran berikut: Suhu dan Termokopel

Thermocouple


TypeRangeAccuracyResolution
J-210° to 760°C (-346° to 1,400°F)±0.6°C (±1.08°F) ± thermocouple probe accuracy0.03°C (0.06°F)
K-260° to 1,370°C (-436° to 2,498°F)±0.7°C (±1.26°F) ± thermocouple probe accuracy0.04°C (0.07°F)
T-260° to 400°C (-436° to 752°F)±0.6°C (±1.08°F) ± thermocouple probe accuracy0.02°C (0.03°F)
E-260° to 950°C (-436° to 1,742°F)±0.6°C (±1.08°F) ± thermocouple probe accuracy0.03°C at (0.05°F)
R-50° to 1,550°C (-58° to 2,822°F)±2.2°C (±3.96°F) ± thermocouple probe accuracy0.08°C (0.15°F)
S-50° to 1,720°C (-58° to 3,128°F)±2.2°C (±3.96°F) ± thermocouple probe accuracy0.08°C (0.15°F)
B550° to 1,820°C (1,022° to 3,308°F)±2.5°C (±4.5°F) ± thermocouple probe accuracy0.1°C (0.18F)
N-260° to 1,300°C (-436° to 2,372°F)±1.0°C (±1.8°F) ± thermocouple probe accuracy0.06°C (0.11°F)





Internal 10K Thermistor (Temperature):


Plot A Time AccuracyRange: Logging: -20° to 70°C (-4° to 158°F)
Acuracy: ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A
Resolution: 0.024°C at 25°C (0.04°F at 77°F); see Plot A
Drift: <0.1°C (0.18°F) per year





Logger


Logger Operating Range
Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing); logger accuracy from 0° to 50°C (32° to 122°F)
Launch/readout: 0° to 50°C (32° to 122°F) per USB specification

Logging rate: 1 second to 18 hours, 12 minutes, 15 seconds
Logging modes: Normal, Burst or Statistics
Memory modes: Wrap when Full or Stop when Full
Start modes: Immediately, Push Button, Date & Time or Next Interval
Stop modes: When Memory Full, Push Button, or Date & Time
Restart mode: Push Button
Time Accuracy - UX120-014MTime accuracy: ±1 minute per month at 25°C (77°F), see Plot B
Battery life: 1 year, typical with logging rate of 1 minute and sampling interval of 15 seconds or greater
Battery type: Two AAA 1.5V alkaline batteries, user replaceable
Memory: 4 MB (1.6 million measurements, maximum)
Download type: USB 2.0 interface
Full memory download time: Approximately 1.5 minutes
LCD: LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Size: 10.8 x 5.41 x 2.54 cm (4.25 x 2.13 x 1 in.)
Weight: 107.5 g (3.79 oz)
Environmental rating: IP50

Apa yang Anda dapatkan jika membeli HOBO Thermocouple USB UX120-014M ?



  • HOBO UX120-014M 4-Channel Thermocouple Data Logger
  • Command™ strip
  • Double-sided tape
  • Hook & loop strap
  • Two AAA 1.5 V alkaline batteries
