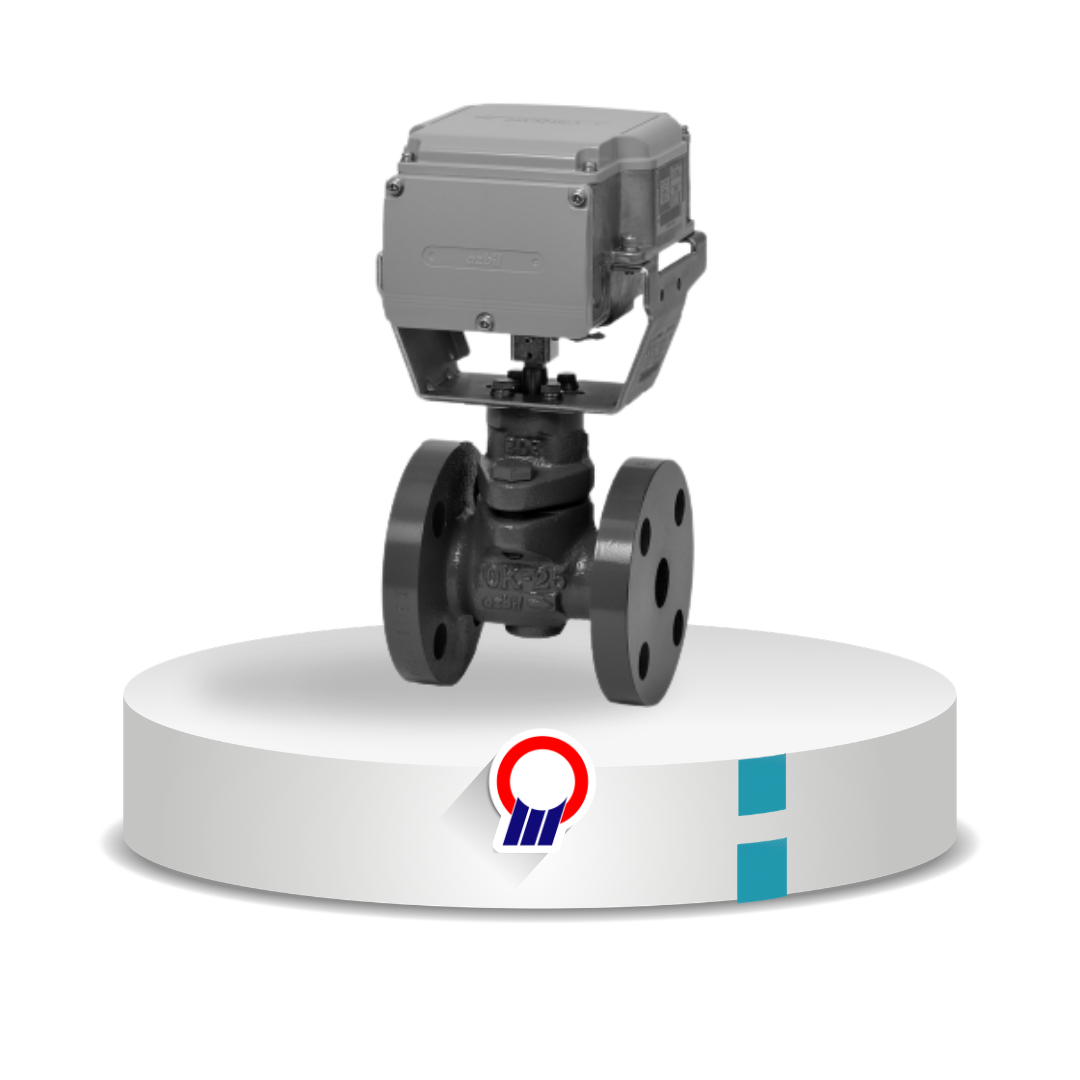

ACTIVAL Model VY51_ _ adalah seri katup rotasi dua arah terintegrasi dengan koneksi flensa berstandar JIS 10K untuk ukuran DN15 hingga DN80. Perangkat ini digerakkan oleh motor sinkron reversibel bertegangan rendah. Sistem ini mendukung empat jenis sinyal kontrol proporsional.
| Item | Specification | ||
|---|---|---|---|
| Operating conditions | Rated operating conditions | Ambient temperature | -20–50 °C (when temperature of fluid is 0–150 °C) -20–45 °C (when temperature of fluid is 150–200 °C) |
| Ambient humidity | 5–95 % RH | ||
| Vibration | 4.9 m/s² (10–150 Hz) | ||
| Transportation/storage conditions (in packed state) | Ambient temperature | -20–70 °C | |
| Ambient humidity | 5–95 % RH | ||
| Vibration | 19.6 m/s² (10–150 Hz) | ||
| Installation location | Indoor use Note: Salt air, corrosive gas, flammable gas, and organic solvent must be avoided. |
||
| Outdoor use Note: Salt air, corrosive gas, flammable gas, and organic solvent must be avoided. And, use the outdoor cover (to be ordered separately) etc. to avoid direct sunlight. |
|||
| Mounting position | Refer to “■ Installation,” “● Mounting position.” | ||
| Manual operation | Available Refer to “■ Installation,” “● Manual open/close operation.” |
||
| Insulation resistance | Between terminals and case | 5 MΩ or more at 500 V DC | |
| Withstand voltage | Between terminals and case | 500 V AC / 1 min with leak current 5 mA or less | |
| Weight | Model VY51_ _ J00 | 11 | 4.6 kg |
| 12 | |||
| 13 | |||
| 14 | |||
| 15 | |||
| 21 | 6.6 kg | ||
| 22 | |||
| 41 | 10 kg | ||
| 42 | |||
| 51 | 11.5 kg | ||
| 61 | 16.0 kg | ||
| 81 | 18.5 kg | ||
Untuk konsultasi model produk lainnya atau untuk mendapatkan informasi spesifikasi yang lebih lengkap, silakan hubungi tim kami. Kami siap membantu Anda memilih solusi yang paling sesuai dengan kebutuhan aplikasi Anda.
