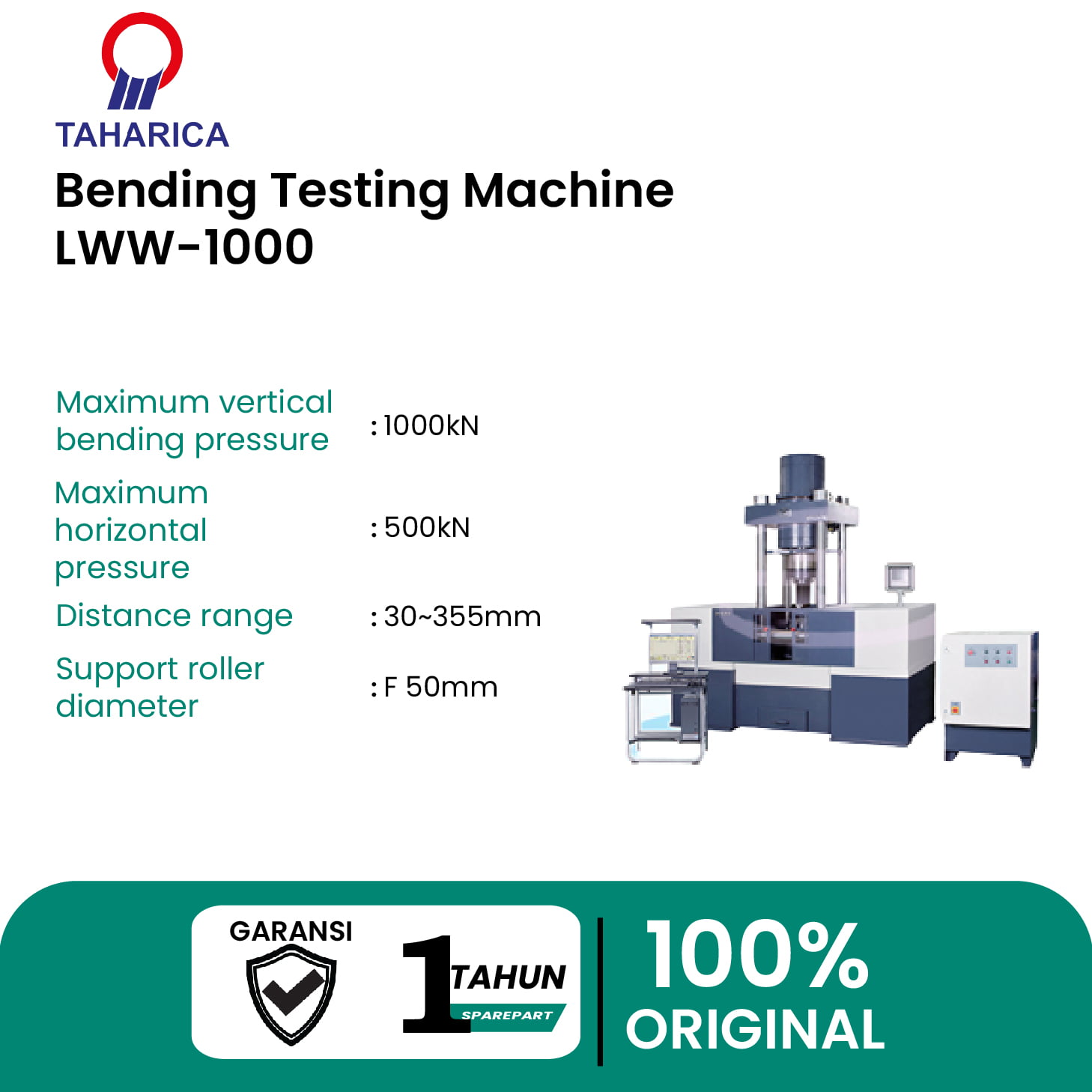

Alat Uji Bending LWW-1000 Microcomputer Controlled Electro-hydraulic Servo Sheet Bending Machine

Alat Uji Bending

Bagikan Produk

Parameter            specification modelLWW-1000LWW-2000
Maximum vertical bending pressure kN10002000
Maximum horizontal pressure kN5001000
Distance range mm30~35550-500
Support roller diameter mm50100
Roller length mm170170
Roller length mm210220
Piston stroke mmvertical300350
horizontal160230
maximum test speedVertical mm/min240170
Horizontal mm/min160160
Machine power kW7.511
Bending roller diameter series40 46 _

50 56 _

60 70 _

80 90 _

100 150 _

60 70 _

80 90 _

100 110 _

120 128 _

160、180 _

Horizontal cylinder synchronization accuracy± 2%
Bend angle control and display0-180 °
Determined by the user according to the test requirements
