| Specifications / Testing Machine Model |
LW-1000 |
LW-2000 |
LW-3000 |
| Maximum test force ( KN ) |
1000 |
2000 |
3000 |
| Relative error of test force indication |
≤± 1% of the indicated value |
||
| Test force measuring range |
4%-100%FN |
||
| Stretching space ( mm ) |
1000 , 5000 , 10000 , 30000 can be customized according to user requirements |
||
| space adjustment |
Pin fixing, adjustment spacing 500mm or 800mm |
||
| Piston loading speed ( mm/min ) |
0-100 |
||
| Piston no-load maximum speed ( mm/min ) |
200 |
||
| Piston stroke ( mm ) |
500 , 1000 , 1500 , 2000 can be customized according to user requirements |
||
| Pre-tensioning stroke ( mm ) |
500 , 1000 , 1500 can be customized according to user requirements |
||
| Round Specimen Tensile Attachment ( mm ) |
Φ 13- Φ 60 |
Φ 15- Φ 70 |
Φ 15- Φ 70 |
| Bolt-type stretch attachment |
Customized according to user requirements |
||
| Cast attachment |
Customized according to user requirements |
||
| Dimensions of the host about mm |
According to the stretching space *1300*900 |
According to the stretching space *1400*1050 |
According to the stretching space *1450*1100 |

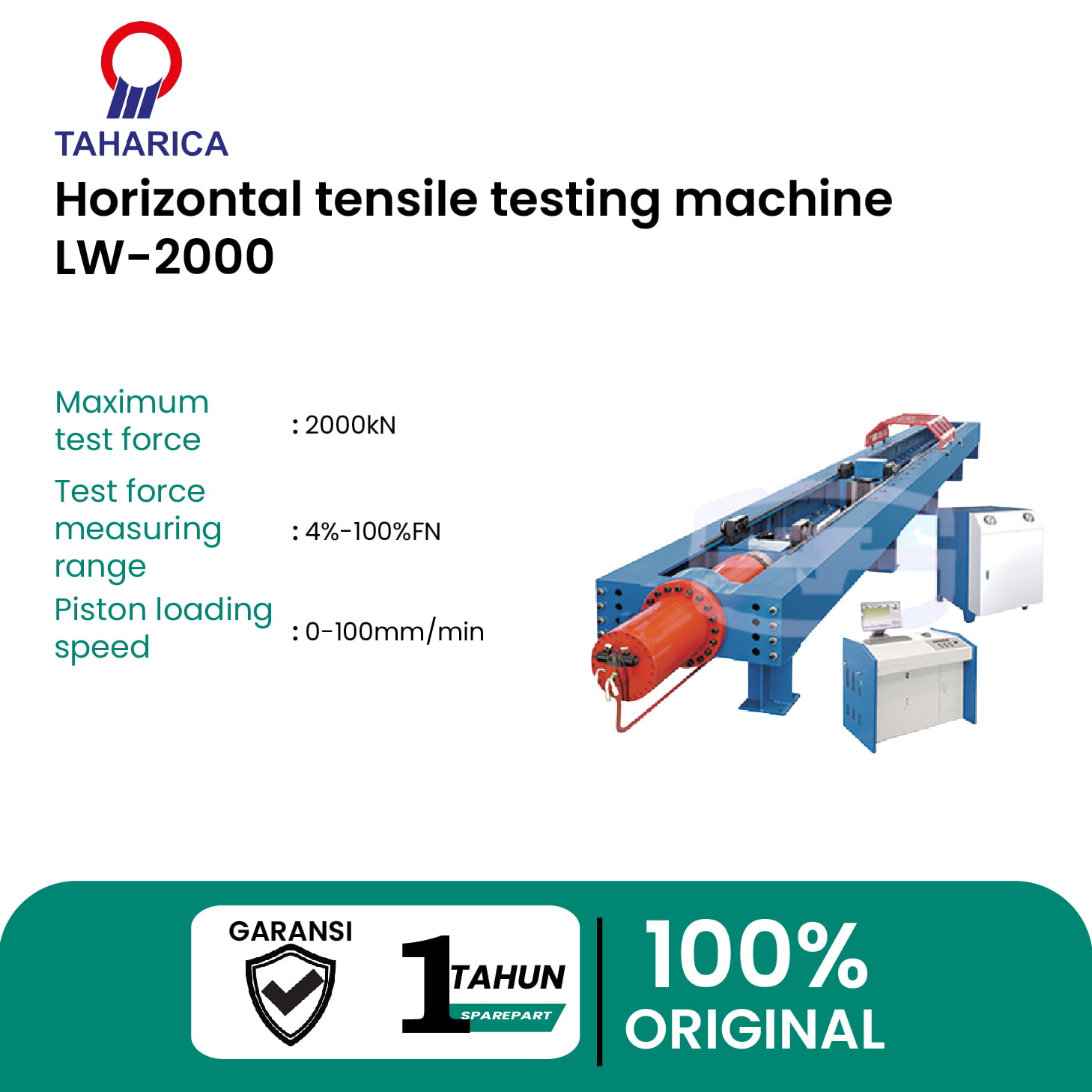

Alat Uji Tarik Horizontal LW-2000 Horizontal tensile testing machine
