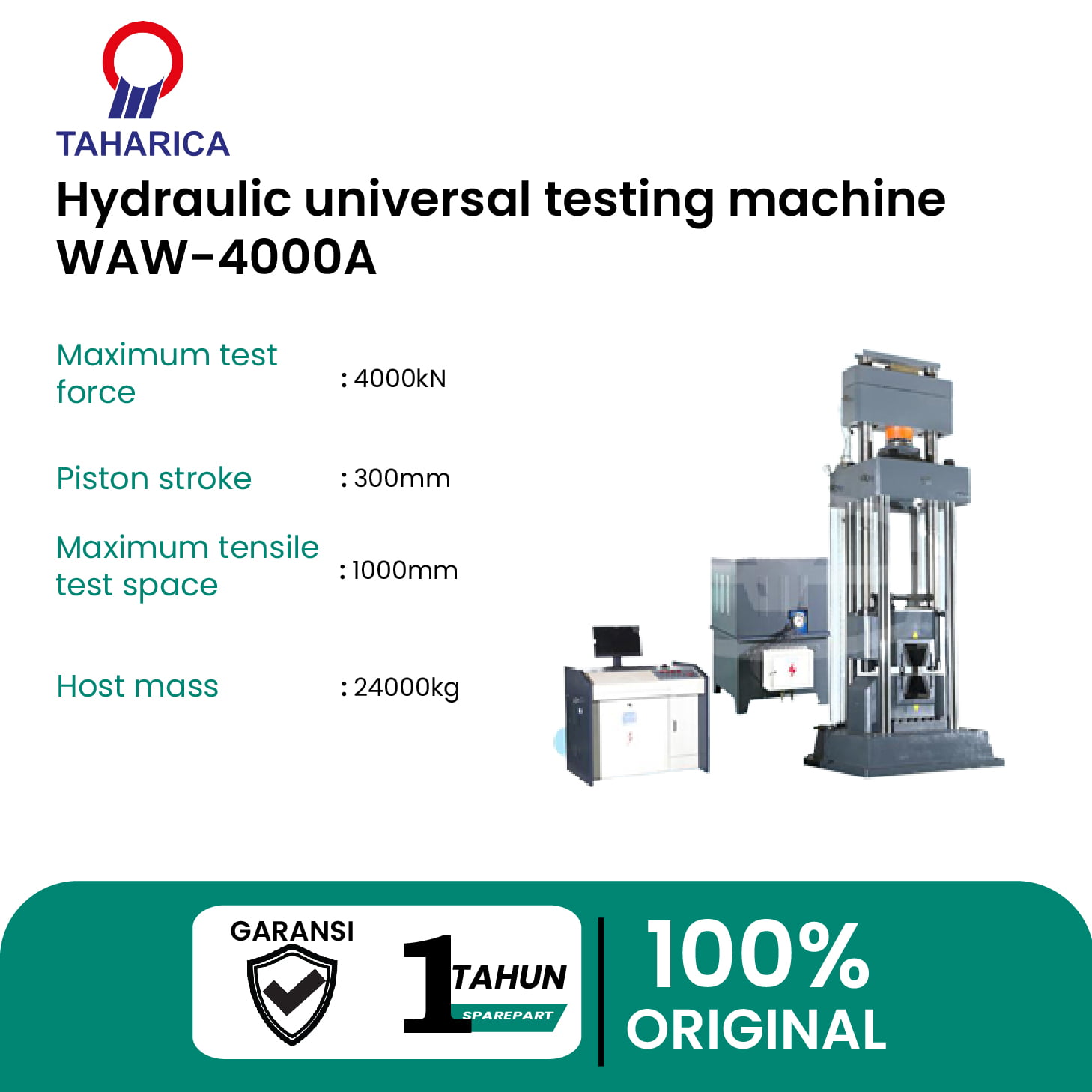

| Product number |
WAW-3000A |
WAW-4000A |
WAW-5000A |
| Maximum test force ( kN ) |
3000 |
4000 |
5000 |
| Test force measurement range |
2%~100%Fn |
| Relative error of test force indication |
≤± 1% of the indicated value |
| Piston stroke ( mm ) |
300 |
300 |
300 |
| Maximum tensile test space ( mm ) |
800 |
1000 |
1000 |
| Maximum distance between bending rolls ( mm ) |
300 |
300 |
300 |
| The maximum moving speed of the piston is about ( mm/min ) |
50 |
50 |
50 |
| Test space adjustment speed about ( mm/min ) |
100 |
100 |
100 |
| Mining chain clamping diameter series ( mm ) |
Φ 22 , Φ 24 , Φ 26 , Φ 30 , Φ 34 , Φ 38 |
Φ 22 , Φ 24 , Φ 26 , Φ 30 , Φ 34 , Φ 38 , Φ 42 , Φ 48 |
Φ 22 , Φ 24 , Φ 26 , Φ 30 , Φ 34 , Φ 38 , Φ 42 , Φ 48 , Φ 56 |
| Four-column spacing (length × width) mm |
800 × 600 |
1000 × 800 |
1000 × 800 |
| Main engine lift motor power ( kW ) |
3 |
4 |
4 |
| Oil pump motor power ( kW ) |
5.5 |
7.5 |
7.5 |
| Host mass ( kg ) |
19000 |
24000 |
26000 |
| Dimensions of the main unit (L×W×H) mm |
1700 × 1400 × 4500 ( 5500 ) |
2000 × 1600 × 4800 ( 6100 ) |
2000 × 1600 × 4900 ( 6300 ) |
