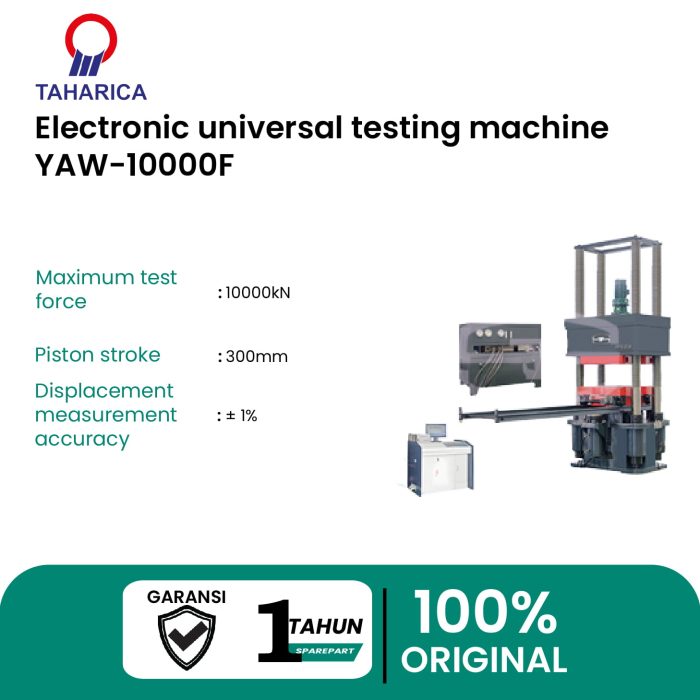

Alat Uji Tekan YAW-10000F Microcomputer Controlled Electro-hydraulic Servo Pressure Testing Machine

Mesin Uji Tekanan Material Semen, Mesin Uji Tekanan Semen Elektro-Hidraulik, Universal Testing Machine, Alat Uji , Alat Pengujian



Bagikan Produk

Specifications / Testing Machine ModelYAW-5000FYAW-10000FYAW-15000FYAW-20000FYAW-30000F
Maximum test force ( KN )500010000150002000030000
Relative error of test force indication≤± 1% of the indicated value
Test force measuring range2%-100%FN
Compression space ( mm )15001500150015001500
Piston no-load maximum speed ( mm/min )5040404040
Piston stroke ( mm )150300300300300
Displacement measuring range ( mm )0-1500-3000-3000-3000-300
Displacement measurement accuracy± 1%
Upper and lower platen size (L * W) mm700*8001050*10501200*12001350*13501500*1500
Beam lifting speed ( mm/min )170200200200200
Dimensions of the host about mm1255*1145*39003700*1900*49005000*2340*50005000*2340*51505000*2500*5300
