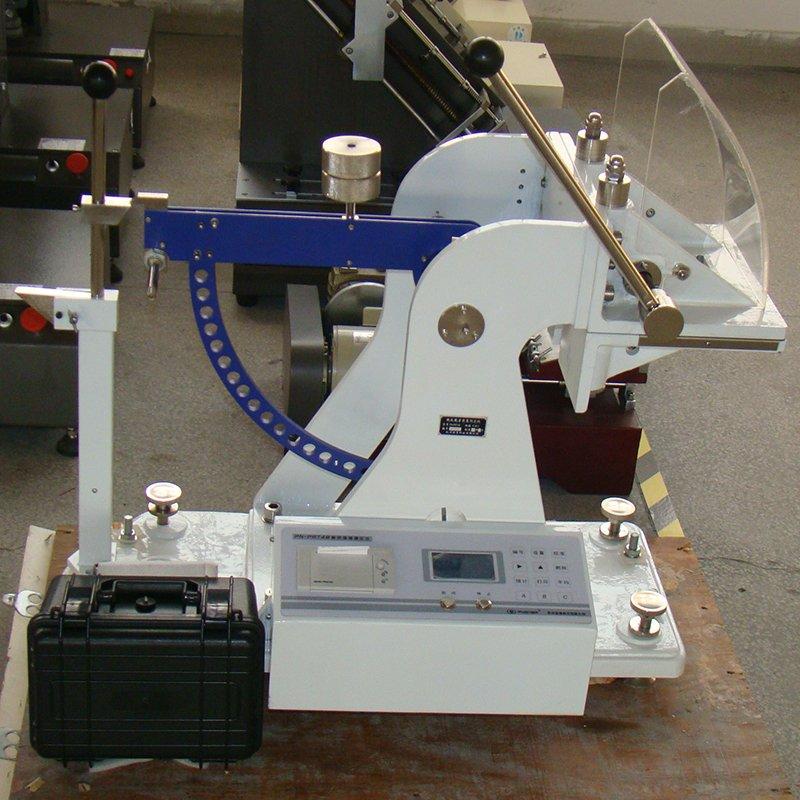

Cardboard puncture resistance testing equipment

Cardboard puncture resistance testing equipment

Cardboard puncture resistance testing equipment is applicable to testing the puncture resistance strength of all kinds of corrugated cardboard. The cardboard puncture resistance tester parameter conforms to the related regulation. Cardboard puncture tester has the characteristics of swift compaction, handle resetting automatically and safety protection, the testing result is highly precise and reliable. Also, it has the function of calculation and can print the testing quantitative data and average value. Cardboard puncture resistance tester is dispensable equipment of paper-making factory, research, and quality supervision department.

Hubungi Kami

Specifications

cardboard puncture resistance tester
1. microcomputer control technology, LCD display
2. functions of test data processing



The main technical parameters



cardboard puncture resistance tester
Capacity A) Scale 0~26.75 kg-cm
B) Scale 0~53.5 kg-cm
C) Scale 0~107 kg-cm
D) Scale 0~214 kg-cm
E) Scale 0~428 kg-cm
Unit ( optional) kg-cm, Joule, or designated
Sample 175×175mm, 300×300mm
Impale Cone height: 1″
Radius of Curvature 1.5 mm
Outside Dimension (L×W×H) 86×43×80 mm
Weight 135 kg





Main features:

  1. Computer-controlled technology, open structure, high automation procedures, simple and convenient operation, safe and reliable.
  2. Automatic measurement, intelligent judgment, real-time display of clamping pressure for sample by operation system.
  3. Automatically measure, count, print the test results, and data can be stored.
  4. Micro-high-speed thermal printer, high-speed print, low noise, no need for ink and ribbons, and it is easy to use and has a low failure rate.
  5. Modern design concept of electro-mechanical integration, has a compact structure, elegant appearance, and convenient maintenance.
