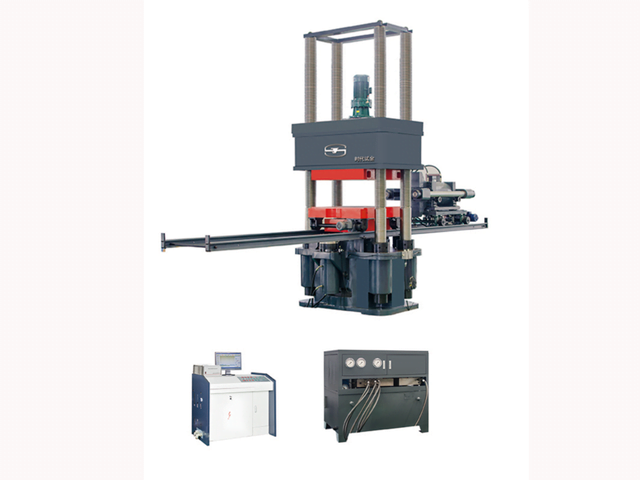

Specifications
|
vertical direction loading part |
||||||
|
item |
YAW-5000J |
YAW-10000J |
YAW-15000J |
YAW-20000J |
YAW-30000J |
|
| Max. Test Load (kN) |
5000 |
10000 |
15000 |
20000 |
30000 |
|
| Load Measuring Range(kN) |
1%-100% of max capacity (kN) |
|||||
| Test Load Indicating Accuracy |
≤±1% of Indicating Value |
|||||
| Compression testing space |
900 |
1500 |
1500 |
1500 |
1500 |
|
| Max speed for piston empty loading (mm/min) |
50 |
40 |
40 |
40 |
40 |
|
| Piston stroke (mm) |
150 |
300 |
300 |
300 |
300 |
|
| Displacement measuring scope (mm) |
0-150 |
0-300 |
0-300 |
0-300 |
0-300 |
|
| Crosshead moving speed (mm/min) |
170 |
200 |
200 |
200 |
200 |
|
| Compression plate(mm) | 700×800 1050×1050 1200×1200 |
1350×1350 |
1500×1500 |
|||
| Deformation measurement |
Measurement of vertical deformation of specimen with four grating ruler digital displacement sensors |
|||||
| Load Frame Dimension（mm） |
4100x1145x3200 |
7000x1900x4900 |
7600x2340x5000 |
8000x2340x5150 |
9000x2500x5300 |
|
|
horizontal shearing part |
|||||
|
item |
YAW-5000J |
YAW-10000J |
YAW-15000J |
YAW-20000J |
YAW-30000J |
| Max. Test Load (kN) |
1000 |
2000 |
3000 |
4000 |
6000 |
| Load Measuring Range(kN) |
2%-100% of max capacity (kN) |
||||
| Test Load Indicating Accuracy |
≤±1% of Indicating Value |
|
|
||
| Piston stroke (mm) |
200 |
200 |
300 |
300 |
300 |
| Displacement measurement accuracy |
±1% |
||||
| Displacement measuring scope (mm) |
0-200 |
0-200 |
0-300 |
0-300 |
0-300 |
| Deformation measurement |
Measurement of vertical deformation of specimen with four grating ruler digital displacement sensors |
||||
| Deformation measurement scope |
0-150mm |
||||
|
corner part |
|||||
|
item |
YAW-5000J |
YAW-10000J |
YAW-15000J |
YAW-20000J |
YAW-30000J |
| Max. load for corner (kN) |
300 |
600 |
1000 |
1500 |
2000 |
| Load Measuring Range(kN) |
4%-100% of max capacity (kN) |
||||
| Test Load Indicating Accuracy |
≤±1% of Indicating Value |
|
|
||
| Piston stroke (mm) |
150 |
150 |
200 |
200 |
200 |
| Displacement measurement accuracy |
±1% |
||||
| Displacement measuring scope (mm) |
0-150 |
0-150 |
0-200 |
0-200 |
0-200 |
| Deformation measurement |
Measurement of vertical deformation of specimen with four grating ruler digital displacement sensors |
||||
| Deformation measurement scope |
0-20mm |
||||
