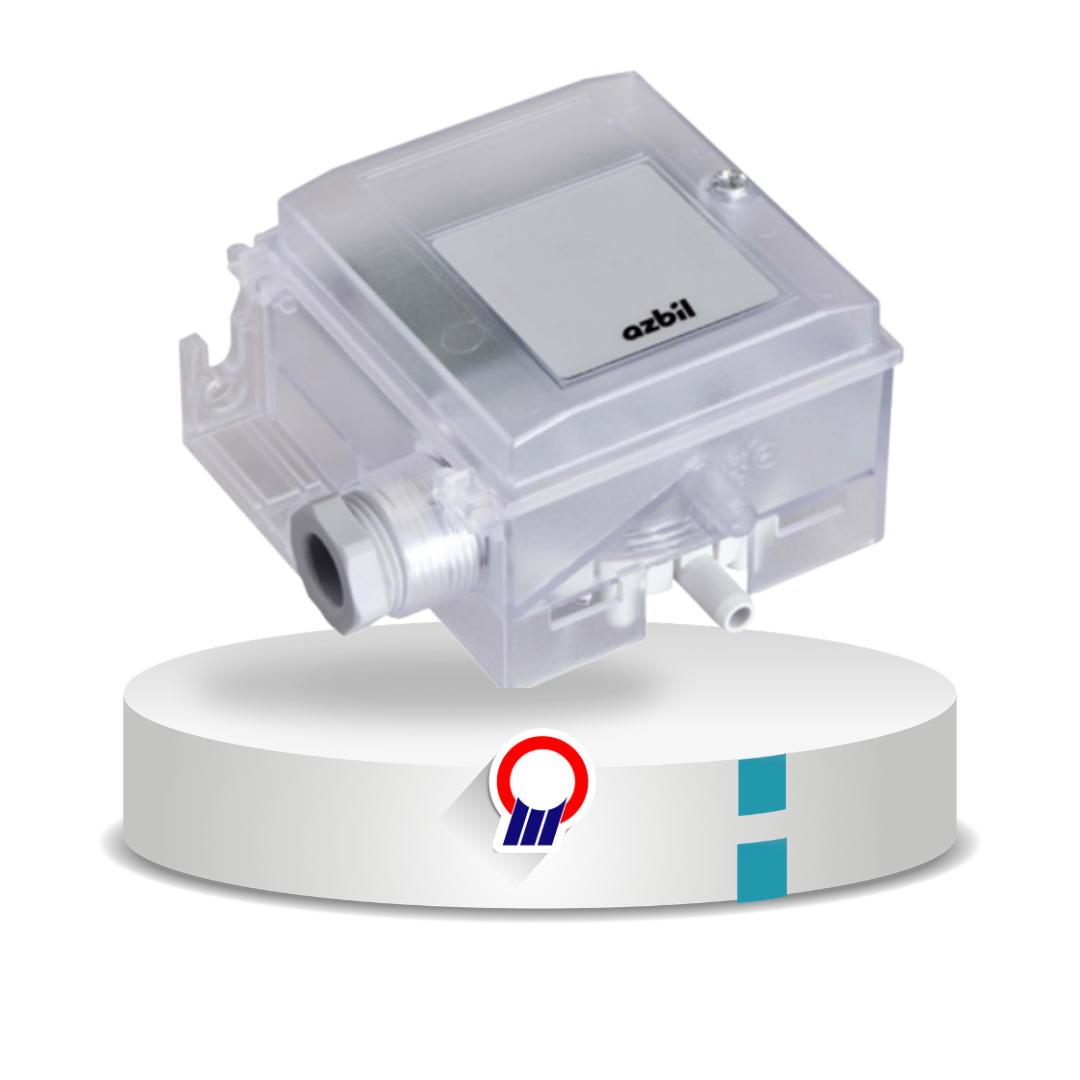

Model PY9000D adalah transmitter tekanan diferensial yang menggunakan sensor cantilever keramik. Defleksi pada cantilever keramik yang disebabkan oleh tekanan diferensial dideteksi sebagai perubahan hambatan listrik, yang kemudian dikonversi menjadi sinyal arus yang sebanding bahkan dengan tekanan diferensial yang sangat kecil. Tekanan diferensial yang terdeteksi kemudian ditransmisikan sebagai sinyal 4–20 mA DC.
Model PY9000D digunakan untuk pengukuran dan pengendalian tekanan ruangan, tekanan statis duct, dan lain-lain, pada clean room maupun aplikasi tata udara (air conditioning) umum.
| Item | Specification |
|---|---|
| Measuring range | Refer to Model Numbers |
| Measuring accuracy | ±2.0 % F.S. |
| Measuring method | Semiconductor ceramic cantilever |
| Allowable differential pressure | Model PY9000D 1005, 1010, 2005, 2010: Max. 5000 Pa / Min. -400 Pa Model PY9000D 1050, 1100, 1250: Max. 10000 Pa / Min. -400 Pa |
| Applicable gases | Air, neutral gases (Note) Measured gas When ambient temperature decreases rapidly, high-humidity gas may condense into water. Do not use where condensation occurs. |
| Temperature characteristics | Refer to Table 1 Ambient temperature characteristics |
| Output signal | 4–20 mA DC (linear) |
| Time constant | 0.02 s |
| Damping time | 0.2 s |
| Supply power | 24 V DC ±20% ( output short-circuit protection should be provided) |
| Power consumption | Max. 0.6 VA |
| Load resistance | Max. 800 Ω |
| Size of pressure inlet | Outside diameter 6.2 mm |
| Installation location | Wall mounting |
| Mounting orientation | Vertical (pressure inlet facing downward) |
| Environment Conditions | |
| Ambient temperature | 0 to 70 °C (rated operation conditions)
-10 to 70 °C (transportation/storage conditions) |
| Ambient humidity | Without condensation |
| Enclosure protection | Splash-proof indoor use (IP54) |
| Color (Housing, cover) | Semi-transparent |
| Major materials (Housing, cover) | Polycarbonate |
| Weight | Approx. 90 g |
| Item | Unit | 1005 | 1010 | 1050 | 1100 | 1250 | 2005 | 2010 |
|---|---|---|---|---|---|---|---|---|
| Zero point | Typ. (% F.S./°C) | ±0.02 | ±0.01 | ±0.01 | ±0.01 | ±0.02 | ±0.02 | ±0.02 |
| Max. (% F.S./°C) | ±0.10 | ±0.04 | ±0.04 | ±0.04 | ±0.10 | ±0.10 | ±0.10 | |
| Sensitivity | Typ. (% F.S./°C) | ±0.03 | ±0.01 | ±0.01 | ±0.01 | ±0.03 | ±0.03 | ±0.03 |
| Max. (% F.S./°C) | ±0.06 | ±0.05 | ±0.02 | ±0.02 | ±0.06 | ±0.06 | ±0.06 |
