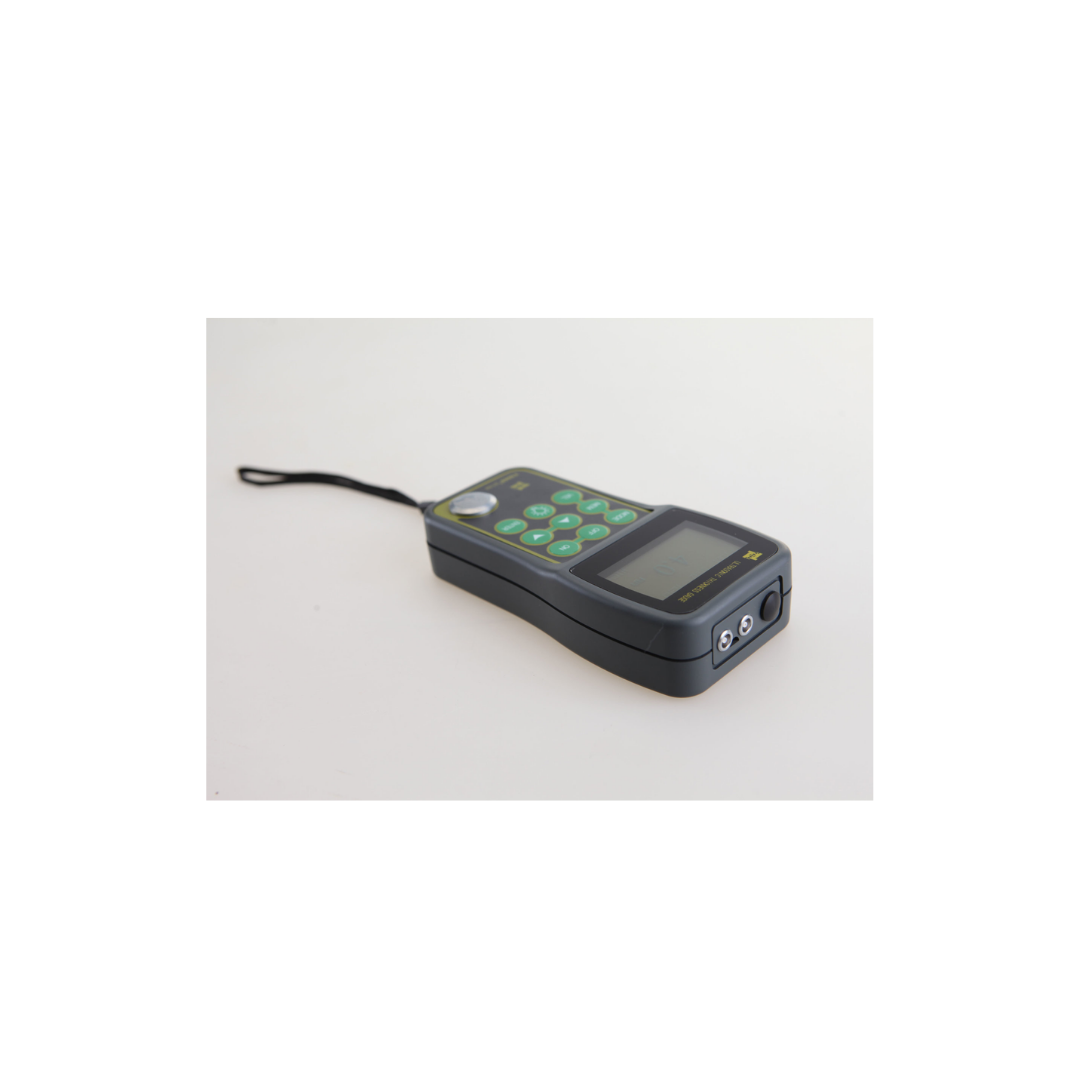

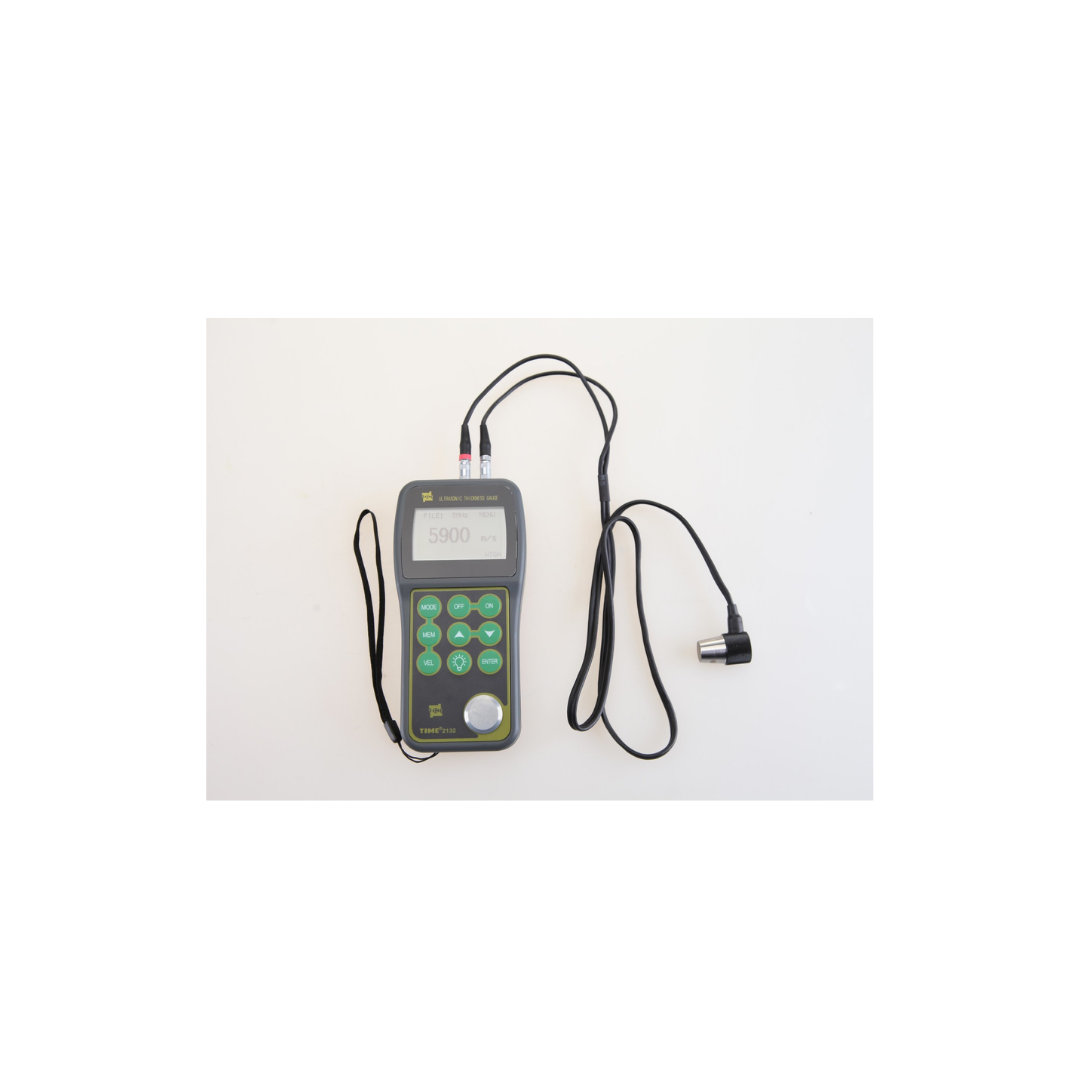

TIME®2130 memiliki port RS232 untuk koneksi ke printer dan PC serta mendukung transduser umum dan besi cor. TIME®2132 tahan suhu hingga 300°C, sedangkan TIME®2134 khusus dilengkapi transduser untuk pengujian besi cor.
| Specification | TIME®2130 | TIME®2132 | TIME®2134 |
|---|---|---|---|
| Measuring Range | 0.75 mm – 300.00 mm (steel) (depend on probe) |
1.2 mm – 225.0 mm (steel) 5.0 mm – 80.0 mm (steel high-temp) |
1.2 mm – 300.00 mm 5.0 mm – 40.0 mm (casting iron) |
| Measuring Accuracy | ±(1%H + 0.1) mm (H means the real thickness) |
±(1%H + 0.1) mm (H means the thickness of tested piece) |
±(1%H + 0.1) mm |
| Lower Limits of Steel Pipes | φ20 mm × 3.0 mm | φ20 mm × 3.0 mm | — |
| Display Resolution | 0.1 mm / 0.01 mm or 0.01 / 0.001 inch |
0.1 mm or 0.01 inch | — |
| Data Output | RS232 Output for printer or PC | — | — |
| Sound Velocity | 1000 m/s – 9999 m/s | 1000 m/s – 9999 m/s | 1000 m/s – 9999 m/s |
| Power Supply | AA batteries (2 pcs) 1.5 V | ||
| Battery Life | 100 hours without backlight | ||
| Unit Scales | mm / inch | ||
| Operating Temperature | -10℃ ~ +60℃ | -10℃ ~ +300℃ | -10℃ ~ +60℃ |
| Dimensions (mm) | 152 × 74 × 35 | ||
| Weight (g) | 370 | ||
