| Item |
Specification |
| Model number |

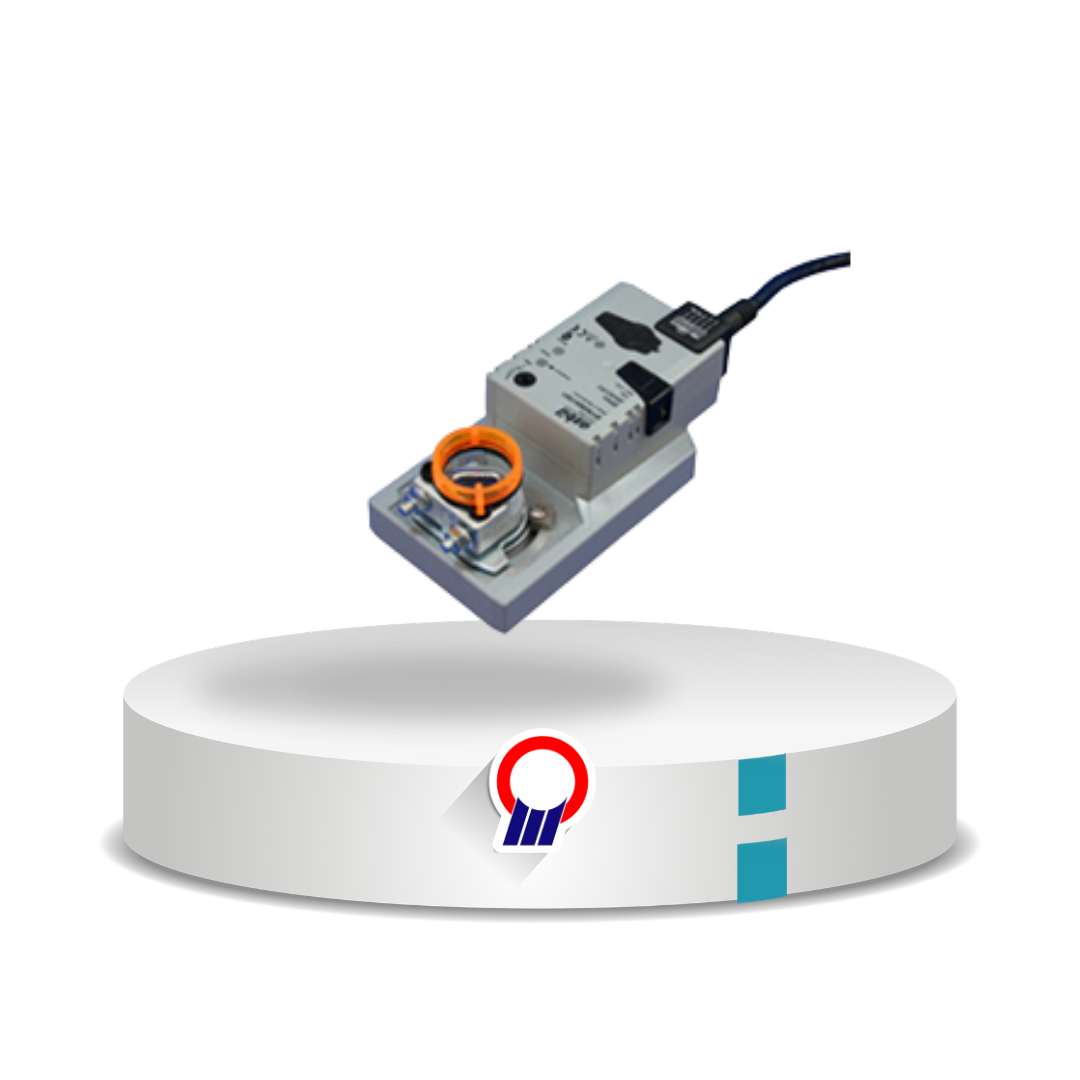

MY9050A1001 |
| Action |
Proportional action |
| Power supply voltage |
24 V AC ± 20 %, 50 Hz/60 Hz |
| Power consumption |
6 VA (in operation) |
| Rotating angle |
Max. 95° (mechanical limit) |
| Operating time |
Approx. 150 s |
| Torque at the rated voltage |
20 N·m |
| Ambient operating conditions |
-20 °C to 50 °C, 95 %RH or less (non-condensing)
(This product is not rain-proof and thus is for indoor use only.) |
| Transport/storage conditions |
-20 °C to 60 °C, 95 %RH or less |
Indicator LED /
Adaption switch |
| Name |
Description |
Power LED /
Adaption switch |
Red LED is ON during power ON.
While the power LED is ON, actuator operation mode is
switched to Adaption mode*1 by pressing the power LED. |
| Operation LED |
Yellow LED is ON while the actuator operation is in
Adaption mode or in Synchronisation mode*1. |
|
| Enclosure rating |
Dust proof and drip-proof equivalent to IEC IP54
(Cable conduit must be facing downward.) |
| Cable |
0.75 mm² × 3-cores, 1 m long |
| Material / Color |
PC-GF10 / Silver gray |
| Weight |
Approx. 910 g |
| Applicable damper shaft |
Circular: φ10 mm to φ20 mm, 42 mm long or longer
Square: 10 mm diagonal to 20 mm diagonal, 42 mm long or longer |
| Accessories |
• M4 tapping screws × 2
• Position indicator ring × 1
• Universal bracket × 1
• Installation instruction sheet × 1 |
Auxiliary devices
(Separate order is required.) |
• Power transformer: Model AT72-J1
• Auxiliary potentiometer*2: Model QY9010A1014
• Auxiliary switch (SPDT × 1)*2: Model QY6051A1001
• Auxiliary switch (SPDT × 2)*2: Model QY6051B1001
• Mounting bracket for replacement (for replacing Model MY9040A)*3: Model Z-SMA |
| Requirements for order |
• Product model number (Model MY9050A1001)
• Auxiliary device model number (if necessary) |
