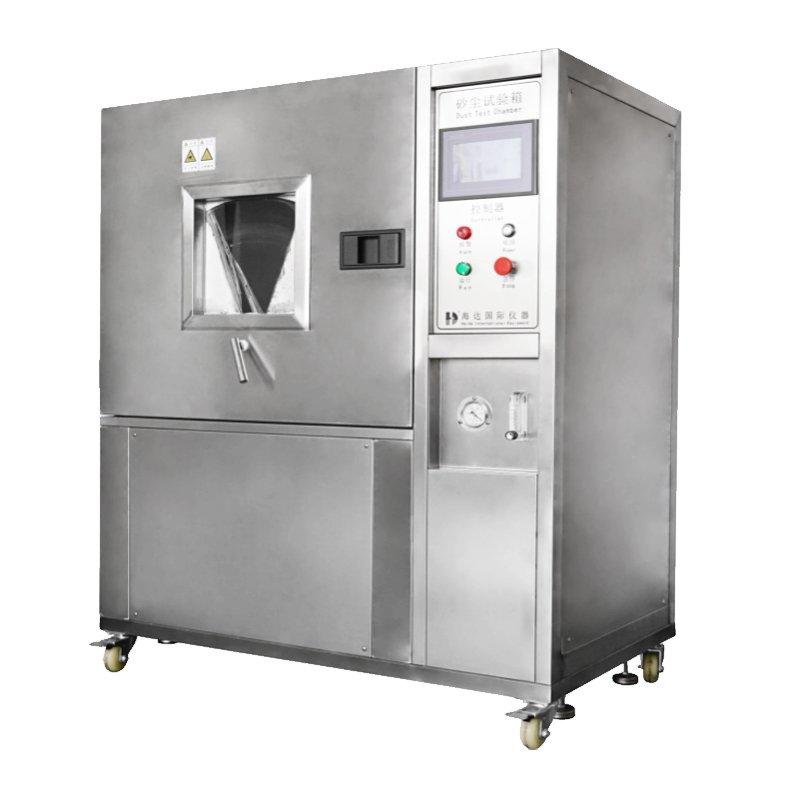

Dust Test Chamber – IP5X/6X

Deskripsi Ruang Uji Debu

Ruang uji debu dapat secara akurat mensimulasikan kondisi debu di lingkungan alami, dan lingkungan debu simulasi sesuai dengan persyaratan pengujian IPX5 / IPX6. Ruang uji pasir-debu terutama digunakan oleh laboratorium atau produsen untuk mendeteksi kemampuan perlindungan casing produk terhadap debu dan untuk menentukan tingkat perlindungan debu.

Kategori:
Minta Inquiry

Aplikasi

Otomotif, suku cadang kendaraan

Produk kabinet elektronik

Produk LED &pencahayaan

Perangkat seluler dan komunikasi

Fasilitas luar ruangan…

Standar pengujian

IEC 60529, Klausul 13.4, IP5X /6X (dengan mode underpressure opsional)

SAE J575, Klausul 4.5, Uji Paparan Debu

DIN 40050, Kode IP 5K dan 6K

IEC 60068-2-68, LA2, aliran debu vertikal

Dust Test Chamber Parameter

ItemSpecification
Internal dimension800W*800D*800Hmm
External dimension1300W*1000D*1700Hmm
Test sampleSize W20cm- L30cm-D15cm, weight 0.5kg
Chamber materialSUS304 Stainless steel
Specifications of square mesh sieveMesh hole 75um, mesh metal wire diameter 50um
Talcum powder amount2kg/ m³
Airflow speedNo more than 2m/s
DoorLeft open door with tempered glass door
ControllerPLC Touch Screen controller, programmable to set as below cycle:

a. Blowing dust time (Stop/Blow) m/s

b. Cycle time: can be adjusted

c. Pre-set test time: 0s ~99m99s

Vacuum systemPressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump
Vacuum pump capacity60-600 L/H
FanCentrifugal fan
Safety protection devicesMeter over-temperature function, Phase shortage protection, Power short-circuit protection

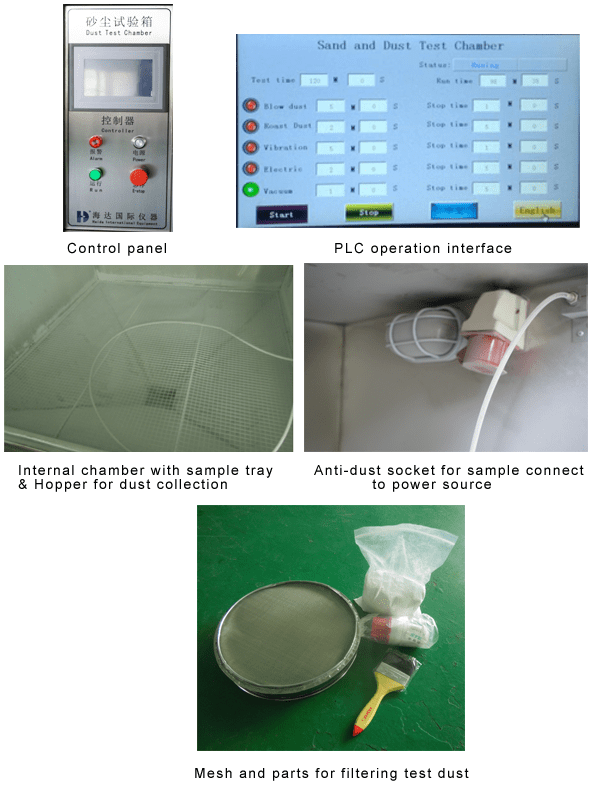

Chamber Design Features

1, Chamber material: SUS #304 stainless steel;

2, Transparent window is convenient to observe specimen during testing;

3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;

4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.
