Fitur
●Mengadopsi rangka beban dengan silinder oli di bagian bawah
● Piston silinder oli mengadopsi penyegelan izin, penggunaan yang lebih lama
●Pergerakan crosshead bawah mengadopsi motor pelat, roda cacing dan cacing, yang dikendarai oleh wrom
●Mengadopsi pompa oli impor
● Mengadopsi katup servo impor, akurasi tinggi untuk kontrol
● TIME pengontrol dan perangkat lunak sendiri

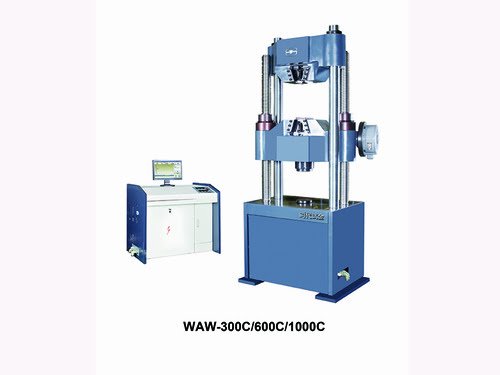

| Item | WAW-300C | WAW-600C | WAW-1000C | WAW-2000C | WAW-3000C |
| Max. Test Load (kN) | 300 | 600 | 1000 | 2000 | 3000 |
| Load Measuring Range(kN) | 2%-100% of max capacity (kN) | ||||
| Test Load Indicating Accuracy | ≤±1% of Indicating Value | ||||
| Distance between two columns | 530 | 650 | 650 | 700 | 760 |
| Displacement Accuracy | ≤±1% of Indicating Value | ||||
| Deformation Resolution（mm） | 0.01 | ||||
| piston Stroke（mm） | 250 | ||||
| Max. Jaws Distance（mm）tension
（Including piston stroke） |
600 | 600 | 600 | 1000 | 850 |
| Max. Jaws Distance（mm）compression | 500 | 500 | 500 | 900 | 720 |
| Deformation Measuring Accuracy | ≤±0.5% of Indicating Value | ||||
| Overload Protection | ≥5% of Full Range | ||||
| Round Specimen Clamping Range（mm） | φ10-φ32 | φ13-φ40 | φ12-φ60 | φ15-φ70 | φ15-φ90 |
| Flat Specimen Clamping Range（mm） | 0-15 | 0-30 | 0-55 | 2-70 | 2-90 |
| Compression plate | φ125 | φ125 | φ160 | Φ220 | Φ250 |
| Bending span(mm) | 350 | 600 | 800 | 390 | |
| Bending width and bending degree(mm) | 140/100 | 140/150 | 160/190 | ||
| Shearing specimen (mm) | φ10 | ||||
| Piston moving speed(mm/min) | ≥70 | ≥70 | ≥50 | ≥70 | |
| Testing space adjustment | Plate motor, worm and worm wheel transmission | motor | motor | ||
| Load Frame Dimension（mm） | 1000x600x2330 | 1180x750x2633 | 1200x780x2870 | 1300x1090x3900 | 1300x1100x3500 |
| Oil source controlled cabinet | 1100x700x930 | 1300x1100x3500 | |||
| Power（kW） | 3 | 3 | 3 | 7 | 10 |
| Load Frame Weight（kg） | Approx. 2300 | Approx. 3000 | Approx. 4200 | 10000 | 10000 |
