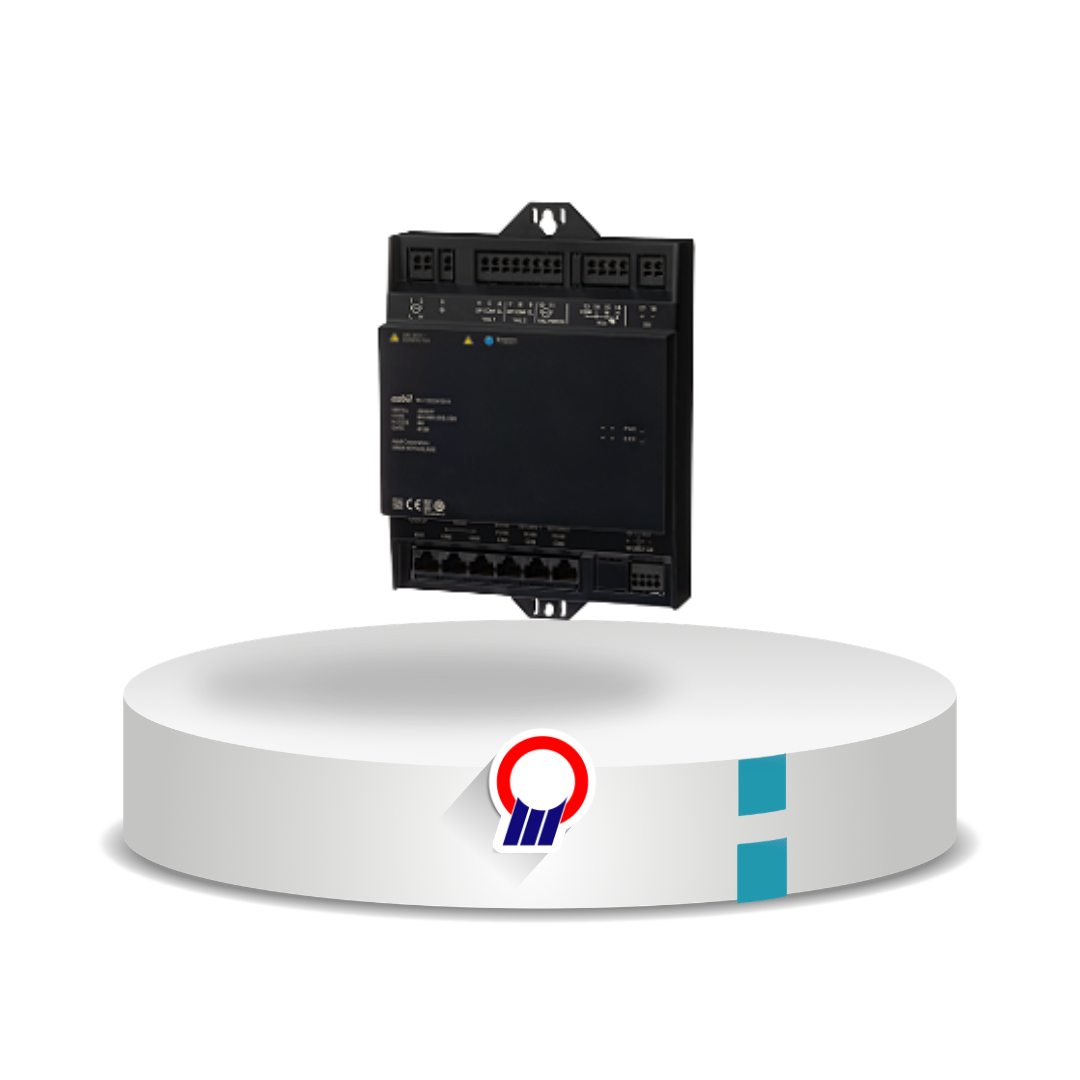

Produk ini mengontrol ON/OFF FCU, aliran udara, dan katup, serta mendukung mode setback dan interlock dengan unit udara luar. FCU dapat dioperasikan melalui terminal pengguna dan kompatibel dengan BACnet MS/TP.
| Item | Specification | |
|---|---|---|
| Power | Voltage | Model WJ-1202W: 100–240 V AC (85–264 V AC) |
| Frequency | 50/60 Hz ±3 Hz | |
| Consumption | Model WJ-1202W1_01 & WJ-1202W4_01: 6 VA max. Other than the above: 7 VA max. |
|
| Inrush current | 15 A max. (for 100 V AC) 30 A max. (for 240 V AC) |
|
| Leakage current | Model WJ-1202W1_01: 0.5 mA max. (for 240 V AC) | |
| Insulation resistance | Between power terminals and ground terminal: 100 MΩ min. (at 500 V DC) |
|
| Central processing unit | – | 32-bit |
| Communication | RS-485 | Method: BACnet MS/TP |
| Speed: 9.6, 19.2, 38.4, 76.8 kbps (default: 76.8 kbps) | ||
| Distance: 1000 m max. | ||
| Neopanel2 / Neopanel | Method: Dedicated serial communication (requires 12 V DC power) | |
| Speed: 100 bps | ||
| Distance: 50 m max. | ||
| Number of connectable units: 2 | ||
| Materials | Base | Modified PPE resin |
| Cover | Modified PPE resin | |
| Terminal cover | Modified PPE resin | |
| Mass | Models WJ-1202W1_01 & WJ-1202W4_01: 0.23 kg Other than the above: 0.52 kg |
|
| Environment | Operating conditions | Ambient temperature: 0–50°C |
| Ambient humidity: 10–90 % RH (without condensation) | ||
| Elevation: 2000 m max. | ||
| Vibration: 3.2 m/s² max., 10–150 Hz | ||
| Transportation / storage conditions | Ambient temperature: –20–60°C | |
| Ambient humidity: 5–95 % RH (without condensation) | ||
| Vibration (storage): 3.2 m/s² max., 10–150 Hz | ||
| Vibration (transport): 9.8 m/s² max., 10–150 Hz | ||
| Other | – | • No corrosive gas should be detected. • No exposure to direct sunlight. • Do not let the product get wet. |
| Installation location*2 | – | In the equipment or above the ceiling |
| Installation method | – | Screws or ceiling suspension bolts |
