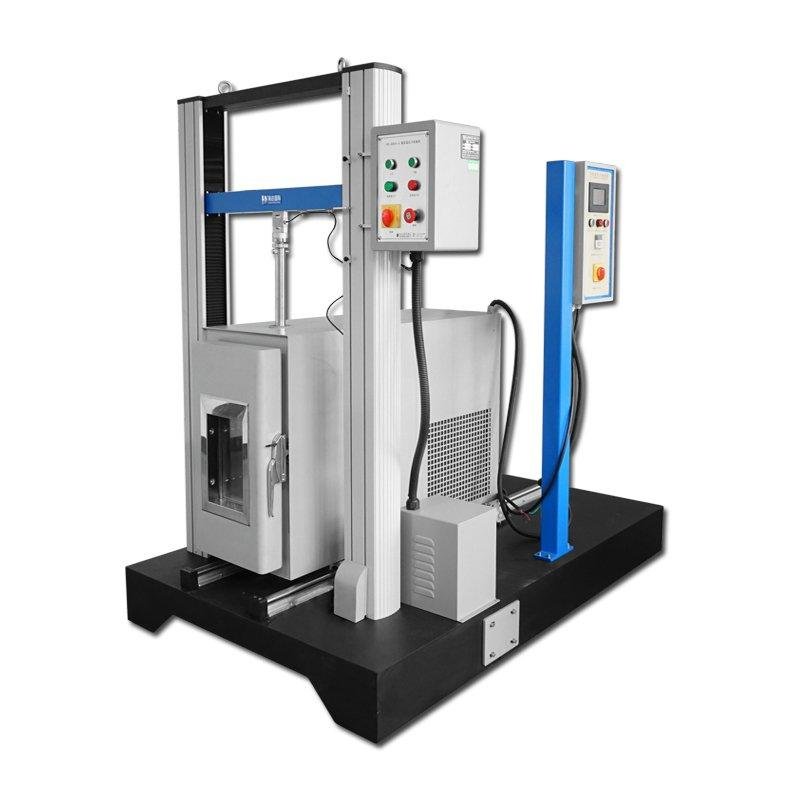

High Low Temperature Universal Test Machine
Perkenalan:
Mesin uji universal suhu rendah tinggi dikendalikan oleh komputer dan banyak digunakan dalam karet, plastik, kawat dan kabel, tekstil, bahan tahan air, kain non-woven dan bahan non-logam lainnya dan kawat logam, foil logam, lembaran logam dan batang logam dari sifat mekanik tes, dengan perlengkapan khusus juga berlaku untuk berbagai produk jadi yang membentang, kompresi, mengupas, mencukur, merobek, menekuk (lipat) tes. Dapat mencetak sejumlah data, sesuai dengan data yang berbeda untuk membuat perbandingan output grafis, akurasi kontrol tinggi, mudah dioperasikan, desain modular, berbagai rangkaian aksesori aksesori, dengan fleksibel.
Standard Features:
| Tensile Tester | |
| Frame capacity | 2000kg |
| Load cell brand | Germany brand load cell for high accuracy |
| Load accuracy | 0.5% F.S |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 1200mm including fixture |
| Test speed | 0.1~300mm/min (adjustable) |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Internal dimension(W*D*H) | 400*500*500mm |
| High & Low Temperature Chamber | |
| Temperature range | -40~+150℃ |
| Temperature Accuracy | ±1℃ |
| Cooling speed | 1℃/min in average (without loading) |
| Heating speed | 3℃/min in average (without loading) |
| Internal chamber material | SUS#304 stainless steel, mirror finished |
| External chamber material | Stainless steel with paint spray |
| Cooling method | Air cooling |
| Controller | LCD touch screen, programmable control temperature and humidity can set different parameter for cyclic test |
| Insulation material | 50mm high density rigid Polyurethane foam |
| Heater | Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
| Compressor | France Tecumseh compressor |
| Lighting | Heat resistance |
| Temperature sensor | PT-100 dry and wet bulb sensor |
| Observation window | Tempered glass |
| Testing hole | Diameter 50mm, for cable routing |
| Sample tray | SUS#304 stainless steel, 2pcs |
