HOBO Carbon Dioxide – Temp – RH Data Logger

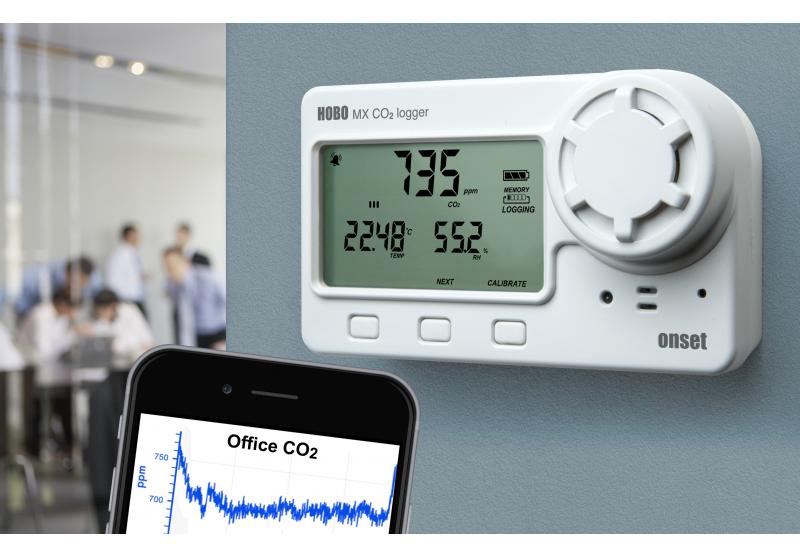

HOBO MX1102 CO2 logger Onset membuatnya lebih nyaman dari sebelumnya untuk mengukur dan merekam CO2 di gedung dan lingkungan non-kondensasi lainnya. Ini mengukur CO2 dari 0–5.000 bagian per juta (ppm) – dan aplikasi HOBOconnect gratis kami memungkinkan Anda mengakses data langsung dari ponsel, tablet, atau komputer Windows Anda saat berada dalam jarak 100 kaki dari logger.

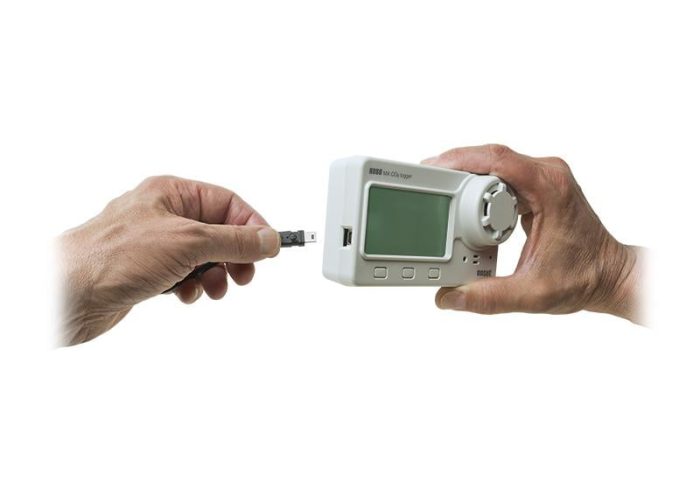

MX1102 juga dilengkapi port USB sehingga dapat digunakan dengan komputer yang menjalankan perangkat lunak grafik & analisis HOBOware.
Tambahkan MX Gateway untuk akses jarak jauh ke data Anda di perangkat lunak HOBOlink berbasis cloud Onset.
Keunggulan :
-Komunikasi nirkabel melalui teknologi Bluetooth
-Masa pakai baterai enam bulan dengan tingkat pencatatan CO2 5 menit
-Mudah untuk digunakan dan dibongkar menggunakan aplikasi HOBOconnect gratis
-Ambang batas alarm tinggi & rendah yang visual dan terdengar
-Teknologi sensor NDIR CO2 yang mengkalibrasi sendiri memastikan akurasi optimal dan biaya perawatan yang lebih rendah
-Teknologi konektivitas yang dipatenkan
| Temperature Sensor | |
| Range | 0° to 50°C (32° to 122°F) |
| Accuracy | ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F) |
| Resolution | 0.024°C at 25°C (0.04°F at 77°F) |
| Drift | <0.1°C (0.18°F) per year |
| RH Sensor | |
| Range |
1% to 90% RH (non-condensing) |
| Accuracy | ±2% from 20% to 80% typical to a maximum of ±4.5% including hysteresis at 25°C (77°F); below 20% and above 80% ±6% typical |
| Resolution | 0.01% |
| Drift | <1% per year typical |
| CO2 Sensor | |
| Range | 0 to 5,000 ppm |
| Accuracy |
±50 ppm ±5% of reading at 25°C (77°F), less than 90% RH non-condensing and 1,013 mbar |
| Warm-up Time | 15 seconds |
| Calibration | Auto or manual to 400 ppm |
| Non-linearity | <1% of FS |
| Pressure Dependence | 0.13% of reading per mm Hg (corrected via user input for elevation/altitude) |
| Operating Pressure Range | 950 to 1,050 mbar (use Altitude Compensation for outside of this range) |
| Compensated Pressure Range | -305 to 5,486 m (-1,000 to 18,000 ft) |
| Sensing Method | Non-dispersive infrared (NDIR) absorption |
| Response Time | |
| Temperature | 12 minutes to 90% in airflow of 1 m/s (2.2 mph) |
| RH | 1 minute to 90% in airflow of 1 m/s (2.2 mph) |
| CO2 | 1 minute to 90% in airflow of 1 m/s (2.2 mph) |
| Logger | |
| Radio Power | 1 mW (0 dBm) |
| Transmission Range | Approximately 30.5 m (100 ft) line-of-sight |
| Wireless Data Standard | Bluetooth Smart (Bluetooth Low Energy, Bluetooth 4.0) |
| Logger Operating Range | 0° to 50°C (32° to 122°F); 0 to 95% RH (non-condensing) |
| Logging Rate | 1 second to 18 hours |
| Logging Modes | Fixed interval (normal, statistics) or burst |
| Memory Modes | Wrap when full or stop when full |
| Start Modes | Immediate, push button, date & time, or next interval |
| Stop Modes | When memory full, push button, date & time, or after a set logging period |
| Time Accuracy | ± 1 minute per month at 25°C (77°F) |
| Power Source | 4 AA 1.5 Volt batteries (user replaceable) or USB power source (5 V DC, 2 Watts) |
| Battery Life | 6 months, typical with logging and sampling intervals of 5 minutes or slower; 6 months or less with logging and sampling intervals faster than 5 minutes while logging CO2. Entering burst logging mode will impact battery life. With app use, battery life can be reduced by remaining connected, excessive readouts, audible alarms, and paging. Visual/audible alarms and other events can have a marginal impact on battery life. |
| Memory | 128 KB (84,650 measurements, maximum) |
| Download Type | USB 2.0 interface or via Bluetooth Smart |
| Full Memory Download Time | 20 seconds via USB; approximately 60 seconds via Bluetooth Smart, may take longer the further the device is from the logger |
| LCD | LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
| Size | 7.62 x 12.95 x 4.78 cm (3.0 x 5.1 x 1.88 inches) |
| Weight | 267.4 g (9.43 oz) |
| Environmental Rating | IP50 |
