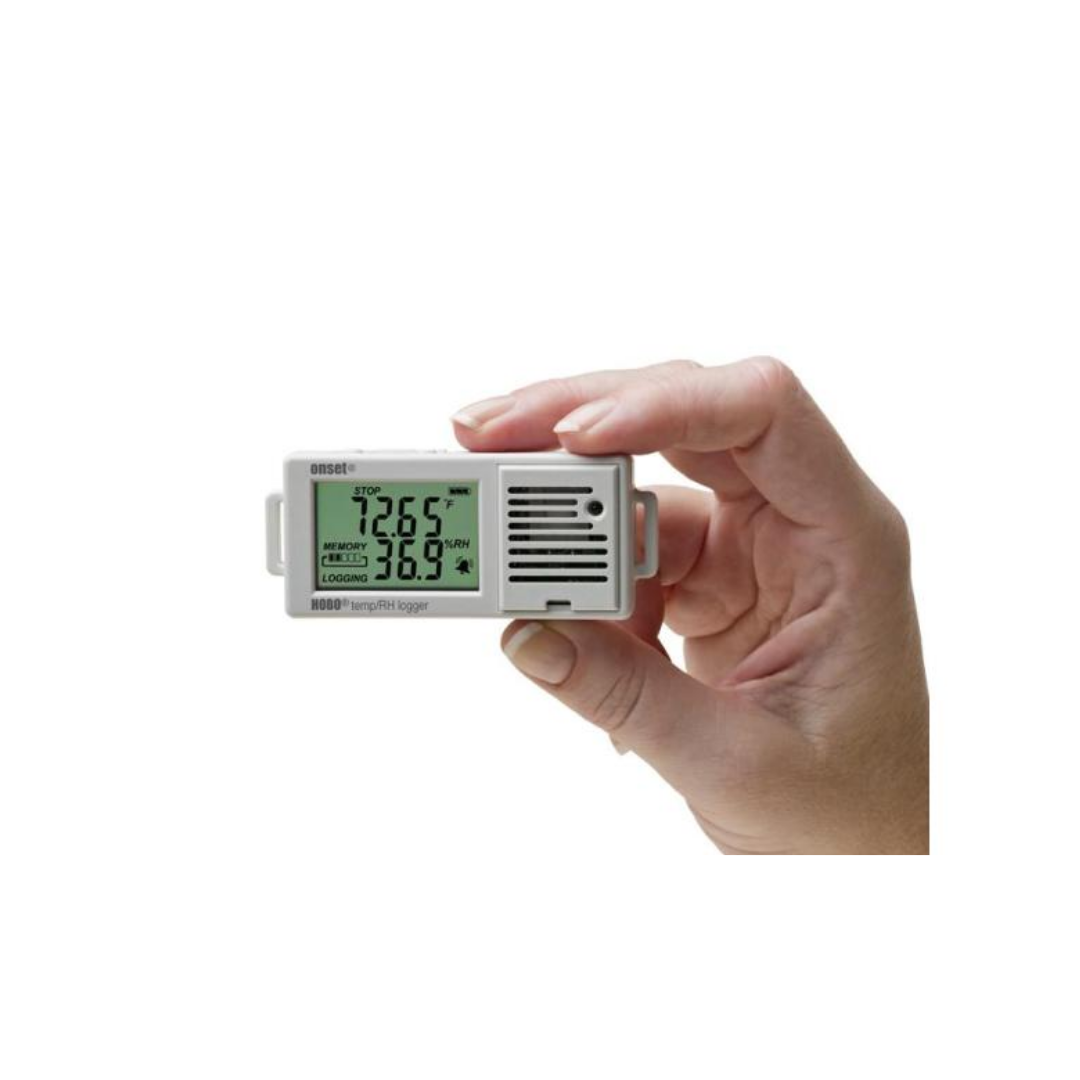

HOBO Temperature/Relative Humidity 3.5% Data Logger

Overview

Dilengkapi sensor terintegrasi untuk mengukur dan merekam suhu serta kelembapan relatif dengan tingkat akurasi hingga ±3,5% untuk penggunaan di dalam ruangan.

Informasi Penting
Penggunaan alat ini memerlukan perangkat lunak HOBOware dan kabel USB. (Catatan: Kabel USB-A ke USB-B mini sudah termasuk dalam pembelian perangkat lunak HOBOware Pro USB Drive). Silakan lihat daftar perangkat yang kompatibel di bawah ini.

Features

  • Layar LCD yang mudah dibaca
  • Kapasitas memori besar untuk menyimpan banyak data
  • Dilengkapi indikator alarm batas atas dan bawah secara visual
  • Mendukung mode pencatatan Burst dan Statistik
  • Sensor kelembapan relatif (RH) dapat diganti oleh pengguna
  • Kompatibel dengan perangkat lunak HOBOware dan HOBOware Pro untuk pengaturan alat serta pembuatan grafik dan analisis data
Hubungi Kami

Specification

Temperature Sensor

Range -20° to 70°C / -4° to 158°F
Accuracy ±0.21°C from 0° to 50°C
±0.38°F from 32° to 122°F
Resolution 0.024°C at 25°C
0.04°F at 77°F
Response Time 4 minutes in air moving 1 m/s (2.2 mph)
Drift <0.1°C per year
0.18°F per year

RH Sensor

Range 15% to 95% RH (non-condensing)
Accuracy ±3.5% from 25% to 85% including hysteresis at 25°C (77°F); below 25% and above 85% ±5% typical
Resolution 0.07% at 25°C (77°F) and 30% RH
Response Time 43 seconds to 90% in airflow of 1 m/s (2.2 mph)
Drift <1% per year typical

Logger

Logger Operating Range Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing) Launch/Readout: 0° to 50°C (32° to 122°F)
Logging Rate 1 second to 18 hours, 12 minutes, 15 seconds
Logging Modes Fixed interval (normal), burst, or statistics
Memory Modes Wrap when full or stop when full
Start Modes Immediate, push button, date & time, or next interval
Stop Modes When memory full, push button, or date & time
Restart Mode Push button
Time Accuracy ±1 minute per month at 25°C (77°F)
Power Source One 3V CR2032 lithium battery and USB cable
Battery Life 1 year typical with logging rate 1 minute
and sampling interval 15 seconds or greater
Memory 128 KB (84,650 measurements maximum)
Download Type USB 2.0 interface
Full Memory Download Time 20 seconds
LCD LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Size 3.66 x 8.48 x 1.52 cm
Weight 30 g (1.06 oz)
Environmental Rating IP50
