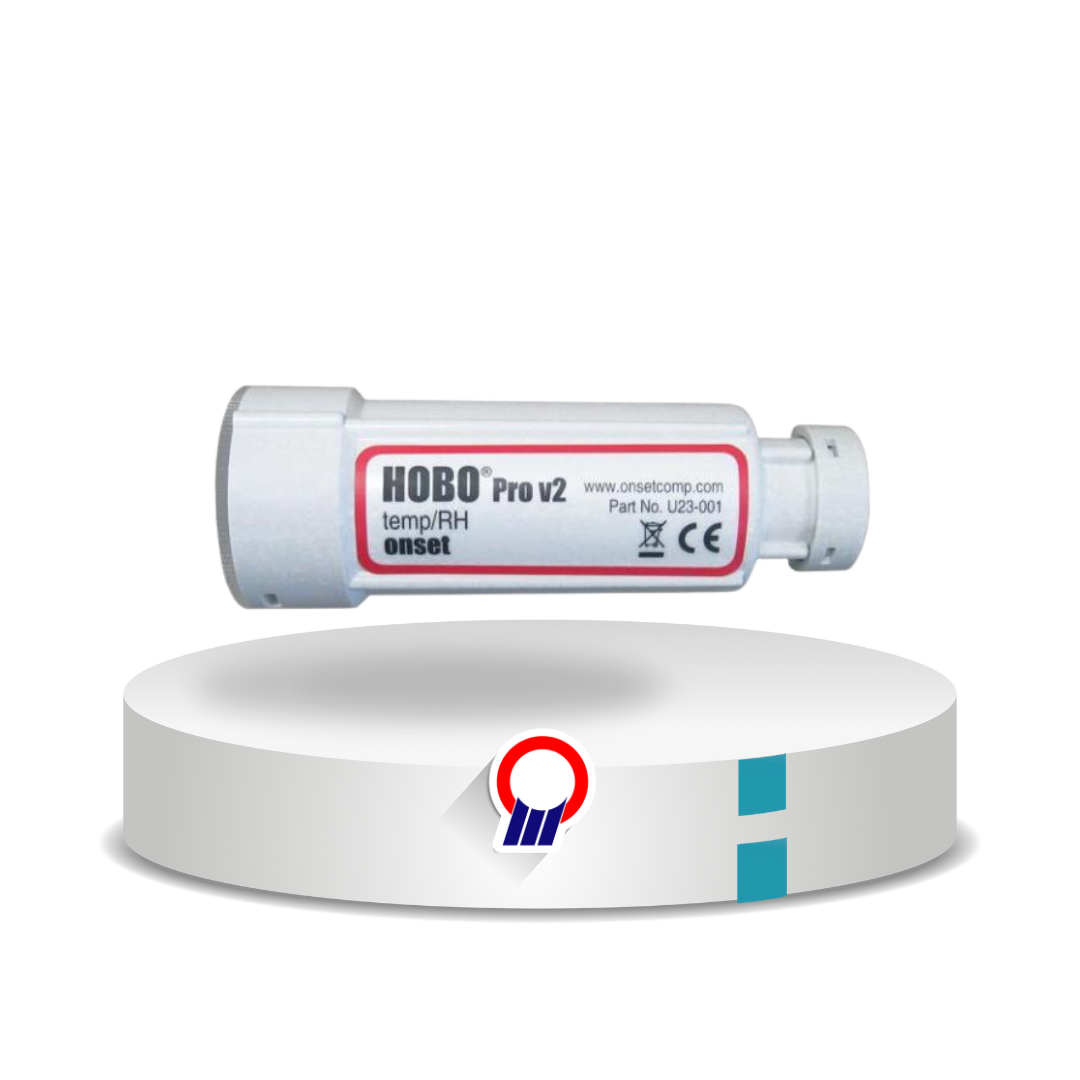

HOBO U23 Pro v2 Temperature/Relative Humidity Data Logger
HOBO U23 Pro v2 Temperature/Relative Humidity Data Logger
HOBO U23 Pro v2 Temperature/Relative Humidity Data Logger

HOBO U23 Pro v2 Temperature/Relative Humidity Data Logger

Overview

Discontinued

Data logger tahan cuaca yang dilengkapi sensor suhu dan kelembaban relatif bawaan. Sensor kelembaban relatif dirancang lebih tahan lama dan andal saat digunakan di lingkungan dengan tingkat kelembaban tinggi.

Informasi Penting
Memerlukan software HOBOware serta salah satu perangkat berikut: Optic USB Base Station atau HOBO Waterproof Shuttle (U-DTW-1). Khusus penggunaan HOBO Waterproof Shuttle, diperlukan HOBOware Pro. Silakan lihat daftar perangkat yang kompatibel di bawah ini.

Data logger tahan cuaca yang dilengkapi sensor suhu dan kelembaban relatif bawaan. Sensor kelembaban relatif memiliki daya tahan yang sangat baik sehingga tetap andal digunakan pada lingkungan dengan tingkat kelembaban tinggi.

Diagram of data retrieval from U23 data logger using optic base station.

Features

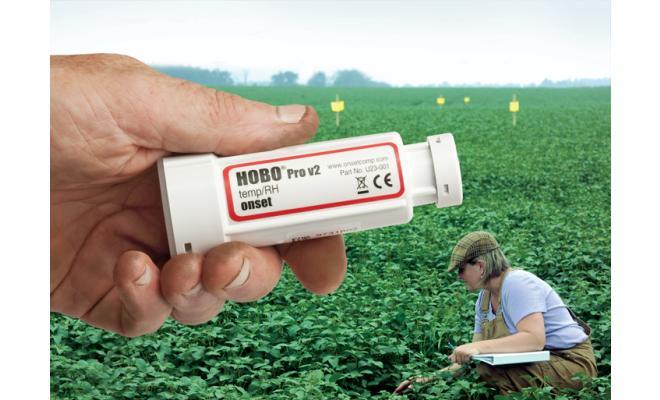

  • Casing tahan cuaca untuk penggunaan di luar ruangan atau lingkungan dengan kondisi lembap/berembun
  • Akurasi tinggi untuk hasil pengukuran yang andal
  • Sensor kelembaban relatif dengan respons cepat dan kemampuan pemulihan yang sangat baik setelah terkena embun
  • Versi sensor eksternal berdiameter kecil, cocok untuk pengukuran di ruang sempit
  • Antarmuka Optic USB untuk proses pengunduhan data yang cepat dan stabil
  • Kompatibel dengan software HOBOware dan HOBOware Pro untuk pengaturan data logger serta pembuatan grafik dan analisis data
Hubungi Kami

Specification

Temperature Sensor

Operation Range U23-001A internal sensor: -40 to 70°C (-40 to 158°F)
U23-002A external sensor: -40 to 70°C (-40 to 158°F)
U23-003 & U23-004 external sensors: -40 to 100°C (-40 to 212°F)
with tip and cable immersion in fresh water up to 50°C (122°F) for one year
Accuracy U23-001A & U23-002A: ±0.25°C (-40 to 0°C), ±0.2°C (0 to 70°C)
U23-003 & U23-004: ±0.21°C from 0° to 50°C (lihat Plot A)
Resolution U23-001A & U23-002A: 0.04°C
U23-003 & U23-004: 0.02°C at 25°C
Response Time (90%)

U23-001A internal sensor: 10 minutes in air moving 1 m/sec
U23-002A external temperature sensor: 3 minutes, 45 seconds in air moving 1 m/sec
U23-003 and U23-004 external sensors: 3 minutes in air moving 1 m/sec; 30 seconds in stirred water
Drift U23-001A and U23-002A: <0.01°C (0.018°F) per year
U23-003 and U23-004: <0.1°C (0.18°F) per year

Relative Humidity Sensor (U23-001A, U23-002A only)

Operation Range

0 to 100% RH, -40° to 70°C (-40° to 158°F)
Exposure to conditions below -20°C (-4°F) or above 95% RH may temporarily increase the maximum RH sensor error by an additional 1%
Accuracy ±2.5% from 10% to 90% RH typical to a maximum of ±3.5% including hysteresis at 25°C (77°F); below 10% and above 90% ±5% typical
Resolution 0.05%
Response Time (90%)

U23-001A: 40 minutes in air moving 1 m/sec with protective cap
U23-002A: 15 seconds in air moving 1 m/sec
Drift <1% per year typical

Logger

Operation Range -40° to 70°C (-40° to 158°F)
Real-time Clock
±1 minute per month 0° to 50°C
32° to 122°F
Battery 1/2 AA, 3.6 Volt lithium, user-replaceable (HP-B)
Battery Life 3 years with 1 minute or greater logging interval
Memory 64K bytes memory (approx. 21,000 temperature and RH measurements)
Materials

All models: ASA styrene polymer housing and mounting clamp; polypropylene protective cap; Buna-N o-ring(s); U23-001A,
U23-002A only: ASA styrene polymer RH sensor cap; modified hydrophobic polyethersulfone membrane
Cables

U23-001A: No cables
U23-002A: One 184 cm (6 ft) PVC cable; sensor diameter 1 cm (0.38 in.)
U23-003: Two 184 cm (6 ft) PVC cables; sensor diameter 0.5 cm (0.20 in.)
U23-004: One 184 cm (6 ft) PVC cable; sensor diameter 0.5 cm (0.20 in.)
Environmental Rating

Electronics housing is NEMA 6P equivalent (tolerant of brief submergence);
Units with RH sensors are NEMA 4 equivalent (splash-resistant)
Launch Modes Immediate start atau delayed start
Logging Interval Fixed-rate or multiple logging intervals, with up to 8 user-defined logging intervals and durations; logging intervals from 1 second to 18 hours
Offload Modes Offload while logging; stop and offload
Battery Indication Battery voltage can be viewed in status screen and optionally logged in datafile. Low battery indication in datafile.
Weight U23-001A: 57 g (1.5 oz); U23-002A: 118 g (3.1 oz); U23-003: 138 g (3.7 oz); U23-004: 102 g (2.7 oz)
Dimensions
Housing measures 10.2 × 3.8 cm
(4.0 × 1.5 in)
NIST Certificate Temperature certificate available for additional charge
