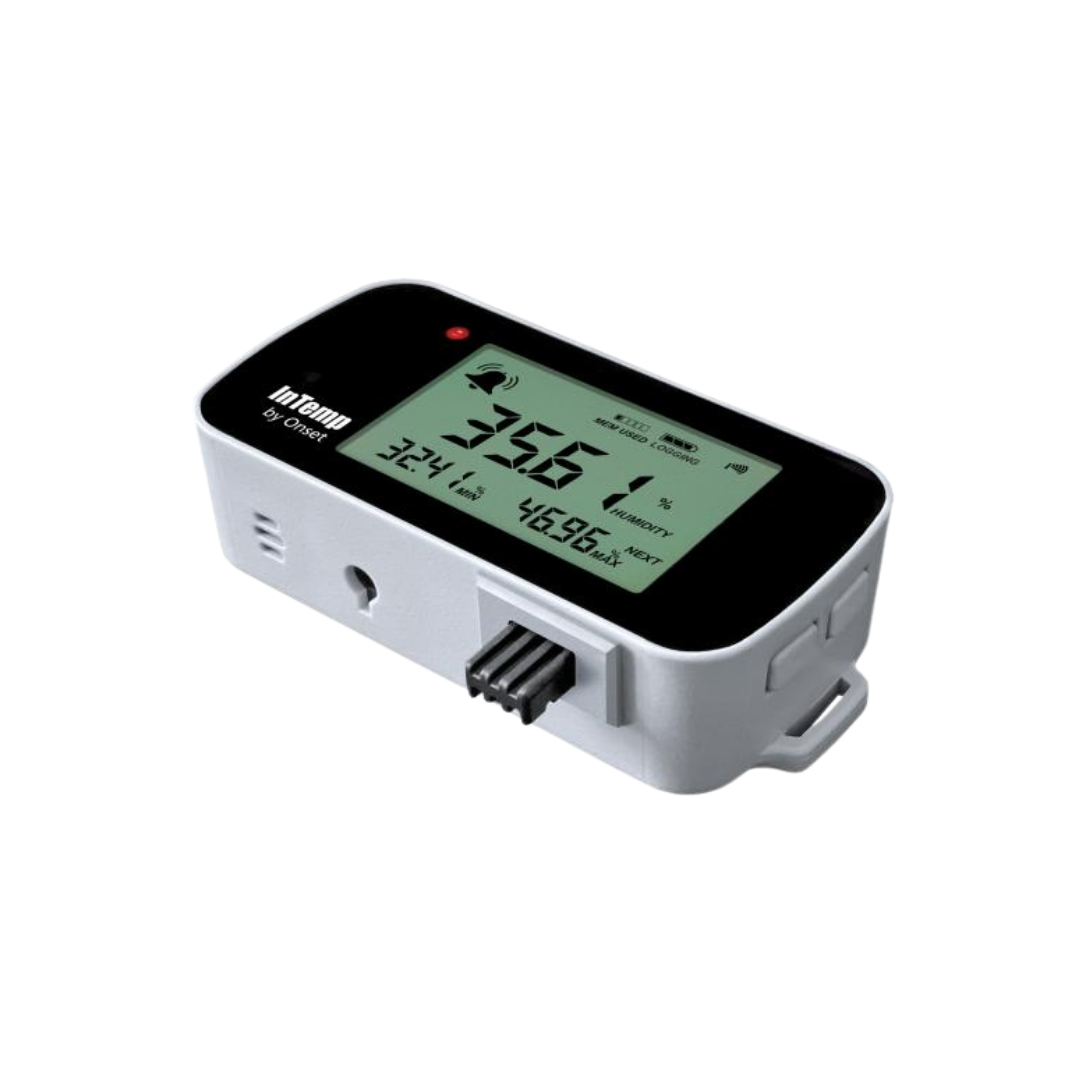

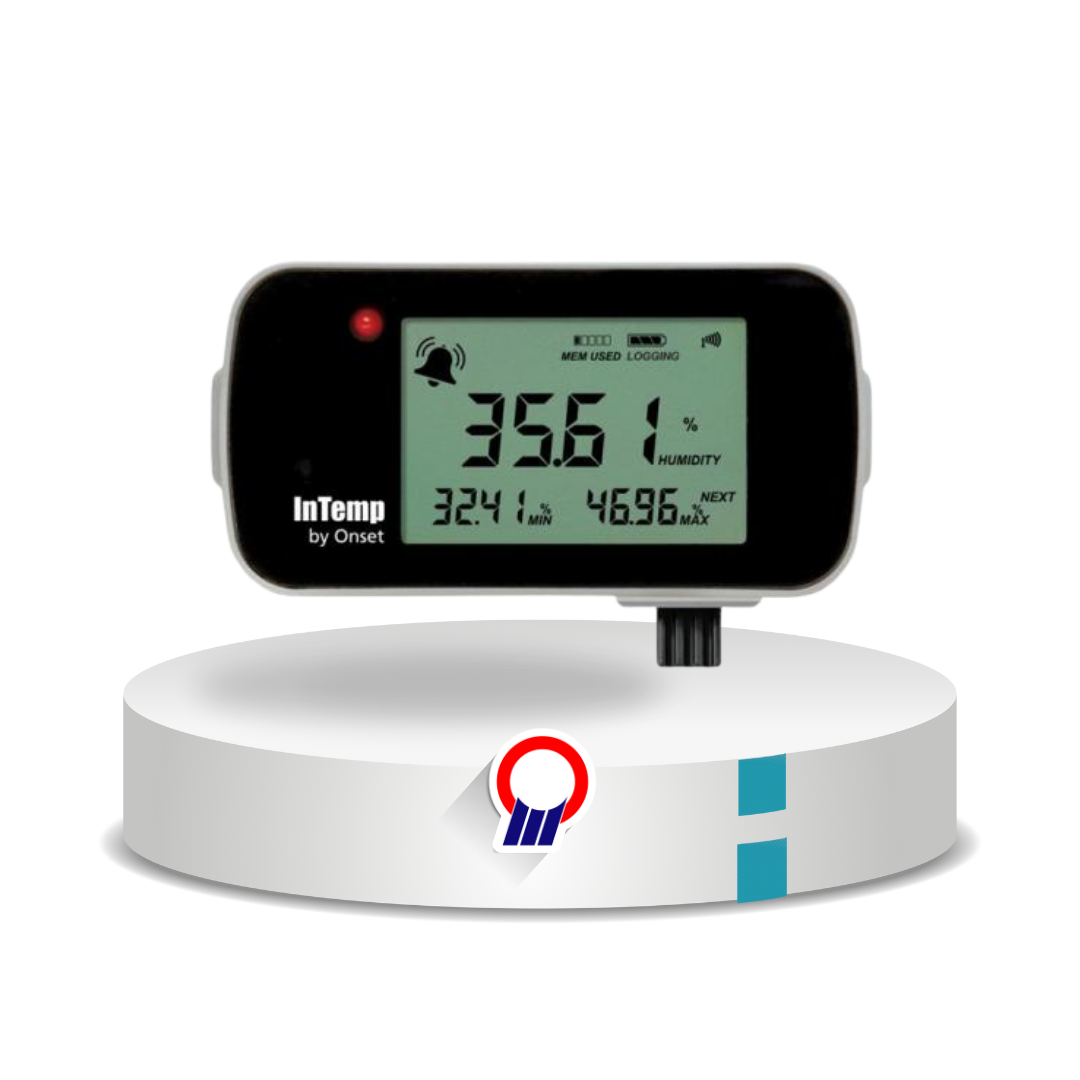

InTemp Temperature and Relative Humidity Storage Monitoring

Overview

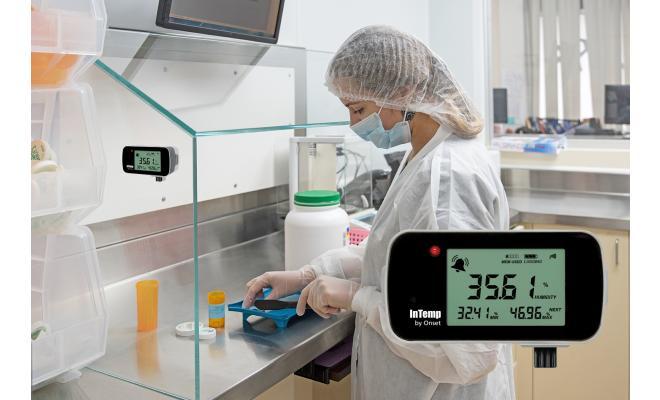

Perekam data suhu dan kelembapan relatif (RH) yang memenuhi standar GDP/GMP, ideal untuk pemantauan penyimpanan produk Healthcare dan Life Science/Farmasi. Aplikasi yang direkomendasikan meliputi penyimpanan farmasi umum (ambient), lemari pendingin, chamber, cold room, dan gudang. Memenuhi persyaratan regulasi Cold Chain global, FDA, dan Uni Eropa (EU).

Features

  • Termasuk Sertifikat Kalibrasi NIST dua titik sesuai pedoman USP, berlaku selama satu tahun

  • Terintegrasi dengan platform mobile dan cloud untuk solusi yang memenuhi 21 CFR Part 11

  • Pengaturan logger dan pengunduhan data mudah, hanya dalam hitungan detik

  • Layar LCD dengan kemampuan menghapus data suhu dan RH minimum/maksimum

  • Alarm suara unik untuk suhu, RH, serta kombinasi suhu/RH

  • Menggunakan baterai AAA untuk perlindungan saat terjadi kehilangan daya listrik lokal

  • Akurasi ±0,5°C untuk pembacaan suhu yang andal dari -30°C hingga 70°C

  • Akurasi ±3% untuk pembacaan RH dari 0% hingga 90% (±3,5% untuk RH di atas 90% pada 25°C)

  • Aplikasi InTemp gratis untuk konfigurasi logger, melihat data, dan mengakses layanan cloud InTempConnect

  • Peringatan real-time dan unduhan data otomatis dengan perangkat opsional InTemp CX Gateway

Hubungi Kami

Specifications

Temperature Sensor

Range -30° to 70°C (-22° to 158°F)
Accuracy ±0.5°C from -30° to 70°C
±0.9°F from -22° to 158°F
Resolution 0.024°C at 25°C (0.04°F at 77°F)
NIST Calibration Two-point NIST calibration included

RH Sensor

Range 0 to 95% RH (non-condensing)
Accuracy ±3.5% from 0% to 95% typical at 25°C (77°F)
Resolution 0.01%

Logger

Radio Power 1 mW (0 dBm)
Transmission Range Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart)
Logger Operating Range -30° to 70°C (-22° to 158°F), 0 to 95% RH (non-condensing)
Logging Rate 1 second to 18 hours
Battery Type Two AAA batteries, user replaceable
Battery Life 1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive report generation, numerous audible alarms, and paging all impact battery life.
Memory 178 KB (51,700 temp & RH paired measurements)
Full Memory Download Time Approximately 60 seconds; may take longer the farther the device is from the logger
LCD LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Dimensions 9.4 × 5.6 × 2.59 cm
3.7 × 2.21 × 1.02 inches
Weight 90.2 g (3.18 oz)
Environmental Rating IP54
