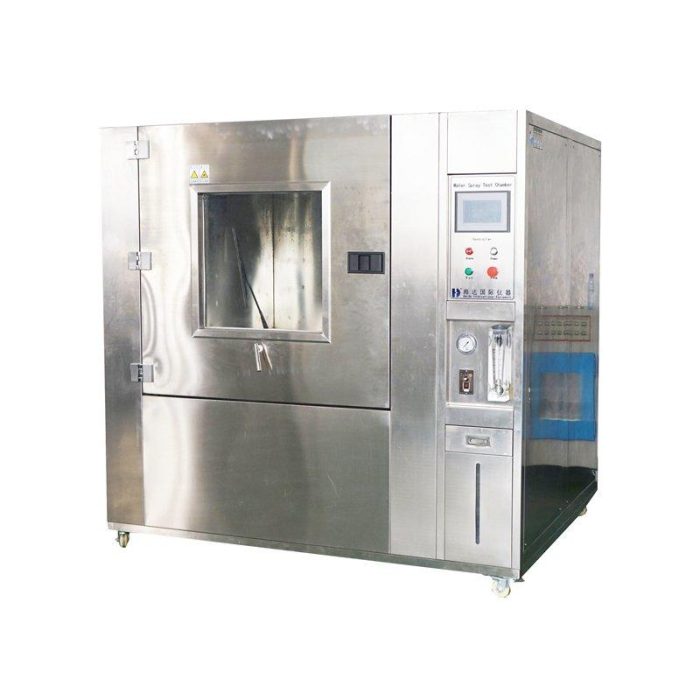

IPX9 Rain Test Chamber

Kategori :

Product description

IPX9 Rain Test Chamber is used to test the water resistance; which is mainly for electronic and electrical products and solar lights, garden lights, buried lights, tunnel lights, car lights, fountain lights, the display…etc led lights series testing. It can also provide references for product design and quality control.

Bagikan Produk

Product Features

ItemSpecification
Internal chamber size1000Wx1000Dx1200Hmm
External chamber size1500Wx1200Dx2100Hmm
Spray water temperature80℃
Spray water pressure80~100bar (8000~10000Kpa)
Water flow14~16L/min
Spray water distance10~15cm
Spray water angle0°, 30°, 60°, 90°, each angle spray for 30 seconds
Sample rotatory table5rpm
Water spray interval time30 seconds (adjustable)
Water cycling systemBuilt-in chamber bottom for recycling
ControllerPLC touch screen
Chamber materialInternal: SUS304 stainless steel, external: stainless steel
PowerAC380V, 50Hz, three phase
