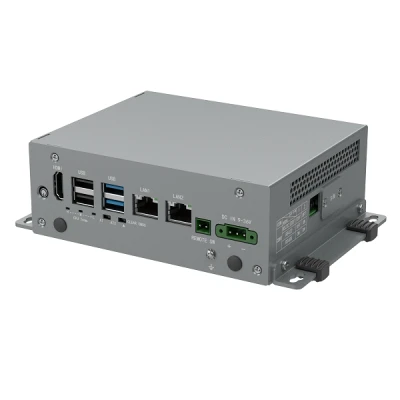

Key Features:
- Intel® Tiger lake U Soc CPU
- SGCC box design, 4-wire speed control fan for heat dissipation
- 1*DDR4 3200MHz SODIMM，up to 32GB
- 1*HDMI 4K display output
- 2*I210AT Gigabit Ethernet port, 2*USB3.2，2*USB2.0
- 8bit DIO, 1*RS232/422/485, 1*RS232
- 1*M.2 2230 E-Key, supports for WiFi/BT and other functional extensions
- 1*M.2 B-Key, with SIM card slot, supports 5G NR wireless module
- 1*Mini PCIe, supports functional cards such as CAN, optional switch to mSATA
- 1 * Full Size mSATA for storage
- DC 9~36V, with short circuit, over voltage and over current protection
CPU | Intel® Tiger lake U Soc CPU (core i3-1115G4/i5-1135G7/i7-1165G7, Celeron 6305E) |
Memory | 1*DDR4 SO-DIMM slot, support 3200MHz, up to 32GB |
Expansion | 1*full size Mini PCIe，with PCIe X1+USB2.0 signal，support for CAN2.0 and other functional expansion modules, can automatically detect and switch to mSATA 1*M.2 3042/3052 B-Key, with SIM card slot，PCIe X1+USB2.0 signal，supports wireless function modules such as 4G LTE or 5G NR 1*M.2 2230 E-Key with PCIe X1+USB2.0 signal, supports WiFi/BT module and other functional expansion modules |
Graphics | Intel UHD Graphics or iRIS® Xᵉ Graphics , DirectX12.1, OpenGL 4.6 and OpenCL 3.0, HDMI max res. 4096×2304@60Hz |
LAN | 2*Intel I210AT, 10/100/1000Mbps adaptive，supports WOL |
Storage | 2*Full Size mSATA, up to SATA6.0 Gbps, one is PCIeX1 signal automatic detection option |
I/O Interface | 2*LAN；1*HDMI；2*USB3.2 (TypeA gen2.0) , up to 10.0Gbps，2*USB2.0 (TypeA)； 2*COM（1*RS232/422/485 select and change modes through a dial switch, 1*RS232）；1*MIO (optional support for built-in functional module interface expansion, such as CAN module）；1*8bit DIO (2*5Pin Phoenix terminal)；1*SIM card slot |
LED | 1*Power LED, 3*CPU temp LED（Red is warning , Yellow is high, Green is normal） |
Control SW | 1*Power button w/LED，1*Remote SW, 1*AT/ATX SW, 1*Clear CMOS SW, RS232/422/485 mode conversion switch for COM1 |
Power supply | DC 9-36V, 1*3-pin phoenix term, with short circuit, over voltage and over current protection TDP: TBD |
Watchdog timer | Watchdog timeout programmable via software 1 to 255 second |
OS Support | Windows 11*IoT enterprise， Windows 10*IoT enterprise，Android，SUSE，Ubuntu，Wind River，Red Hat*Enterprise，Wind River VxWorks*7，Yocto |
Mechanical | SGCC chassis |
Color | Industrial gray |
Mounting | Desk mounting with anti-vibration non-slip foot pads, opt Din-Rail mounting |
Dimension | (L*W*H)：172*116*54mm（Including Desk mounting parts）；144.8*125.22*50（Including Din-Rail mounting parts）； 144.8*116*50（Excluding mounting parts） |
Net weight | 0.89 KG |
Operating temperature | -20～60℃, wide temp SSD, airflow |
Storage temperature | -40°C~85°C |
Storage humidity | 10~95%@40°C, Non-condensing |
Vibration | 5grms/5~500Hz/ random/in working(SSD); 1grms/5~500Hz/random/in working(HDD) |
Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD） |
EMC and Certification | CE/FCC Class A |
