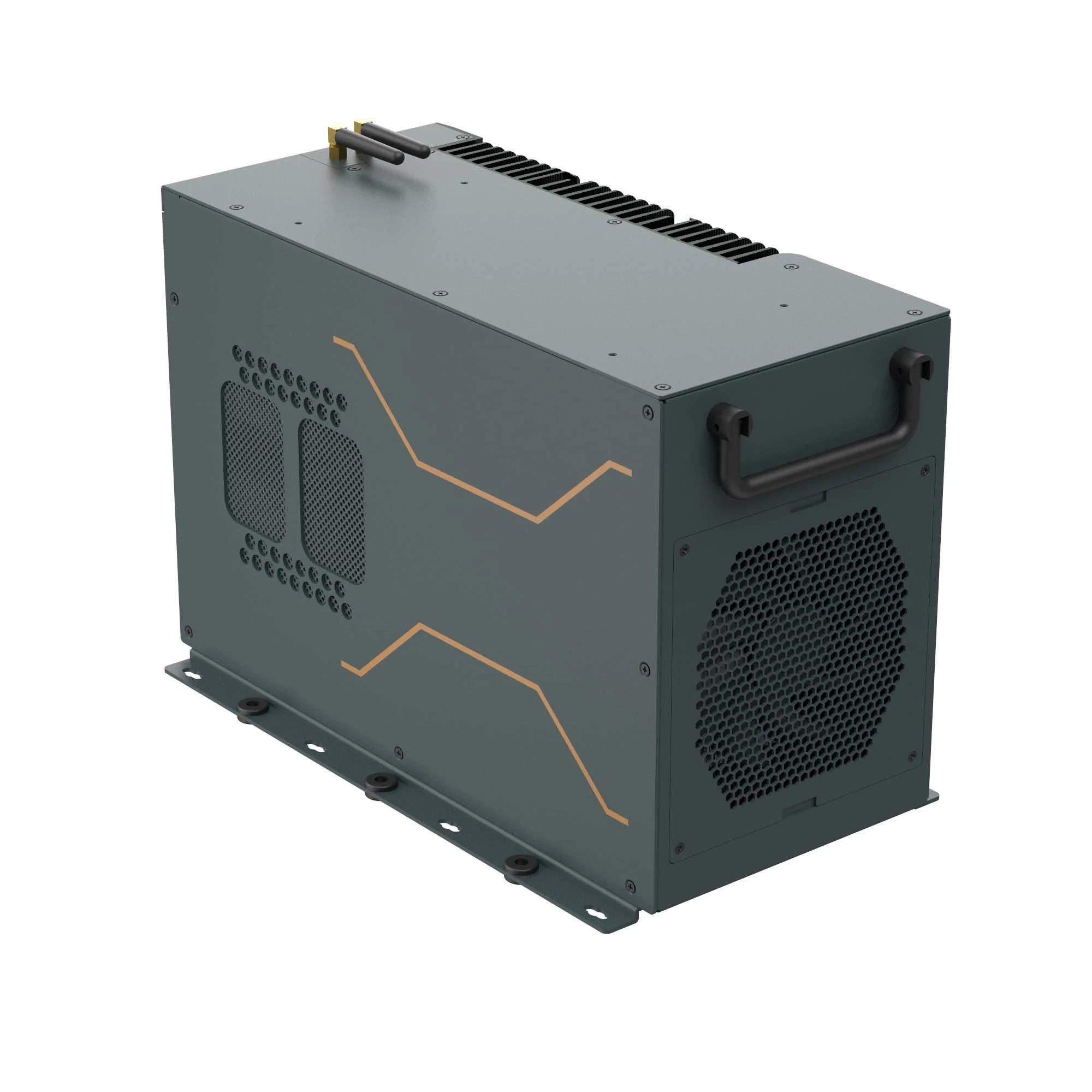

BRAV-7720-S001 adalah sistem komputasi Edge tingkat workstation, ditenagai oleh CPU seri Intel® Alder Lake-S, chipset Q670, memori dual-channel DDR5, dan dual PCIe expansions. Dengan daya komputasi opsional yang fleksibel, antarmuka multi-IO, sumber daya listrik PFC tinggi, solusi pendinginan efisien, dan desain keandalan tingkat industri, sangat cocok untuk V2X MEC, deteksi peristiwa di jalan raya, kendaraan eksperimen tanpa awak, visi mesin berkepresisian tinggi, dan bidang dan aplikasi lainnya.
Fitur
Spesifikasi Lengkap
Data Sheet
Fitur
- Intel® 12th Gen Alder lake-S LGA1700 CPU
- Intel® Q670 Chipset
- 2*DDR5 4800MHz SODIMM, up to 64GB
- 1*DP+1*HDMI and 1*VGA, UHD 8K+4K three independent displays
- 2*Intel® I226V Gigabit LAN, 1*Intel® I219LM Gigabit LAN, support iAMT12.0
- 1*PCIe X16 (X16 signal)+1*PCIe X16 (X4 signal), dual PCIe expansions
- 2*2.5”SATA3.0 Bays, 1*M.2 2280 PCIeX4 NVMe
- Support TPM2.0 and iVpro technology
- Fanless cooling for CPU , AI/GPU card with efficient fan cooling design
- Support 450W GPU or dual 75W/150W AI acceleration cards 1000W
- DC IN 12V, and wide temperature fanless AC-DC power adapter with PFC
Spesifikasi Lengkap
| CPU+PCH | Intel® Alder lake-S 12th-Gen Core™ i9/i7/i5/i3/Pentium/Celeron LGA1700 CPU，Intel® Q670 PCH |
| Memory | 2*262-Pin SODIMM, dual channel DDR5 4800MHz, up to 64GB |
| Expansion | 1*Full size Mini PCIe (PCIeX1 + USB signal) with SIM slot, for 4G LTE modem or PCIe signal I/O module 1*full size mSATA，with SATA3.0 signal, max 6Gbps 1*M.2 B-Key 3052 (PCIeX1+USB signal) with a SIM slot, support 5G NR module 1*M.2 2280 M-Key (Gen4, X4 signal, from PCH), support NVME high-speed SSD or PCIe signal module 1*PCIe X16 (Gen5, X16 signal, from CPU), support highest power consumption 450W GPU card or AI acceleration card (the length of the card must be less than 300mm) 1*PCIe X16 (Gen4 X4 signal, from PCH), support 75W consumption AI acceleration card (the length of the card must be less than 300mm) |
| Graphics | Intel® UHD Graphics, Supports DirectX 12, OpenGL 4.5，OpenCL 3.0, DP max res. 7680*4320@60Hz,HDMI max res. 4096*2160@60Hz, VGA max res. 1920*1200@60Hz, support three independent displays |
| Audio | Realtek ALC897 controller, Line out and MIC high fidelity audio, support 5.1 channel |
| LAN | 2*Intel I226V 2.5G Gig. Ethernet, PCIeX1 full bandwidth, 10M/100M/1000M/2.5Gbps; 1*Intel I219LM Gig. Ethernet, 10/100/1000Mbps, support iAMT12.0 and vPro (only Core I5/I7/I9 CPU) |
| Storge | 2*2.5 “SATA3 easy-plug SATA bays, larger capacity thickness15mm HDD, support Raid0/1; 1*M.2 2280 M-key(Gen4, PCIeX4 signal), support NVMe ultra-high speed storage; 1*Full size Mini PCIe (PCIeX1 or SATA signal) automatically detects mSATA |
| DIO | Optional 16bit DIO, TTL signal, programmable input/output |

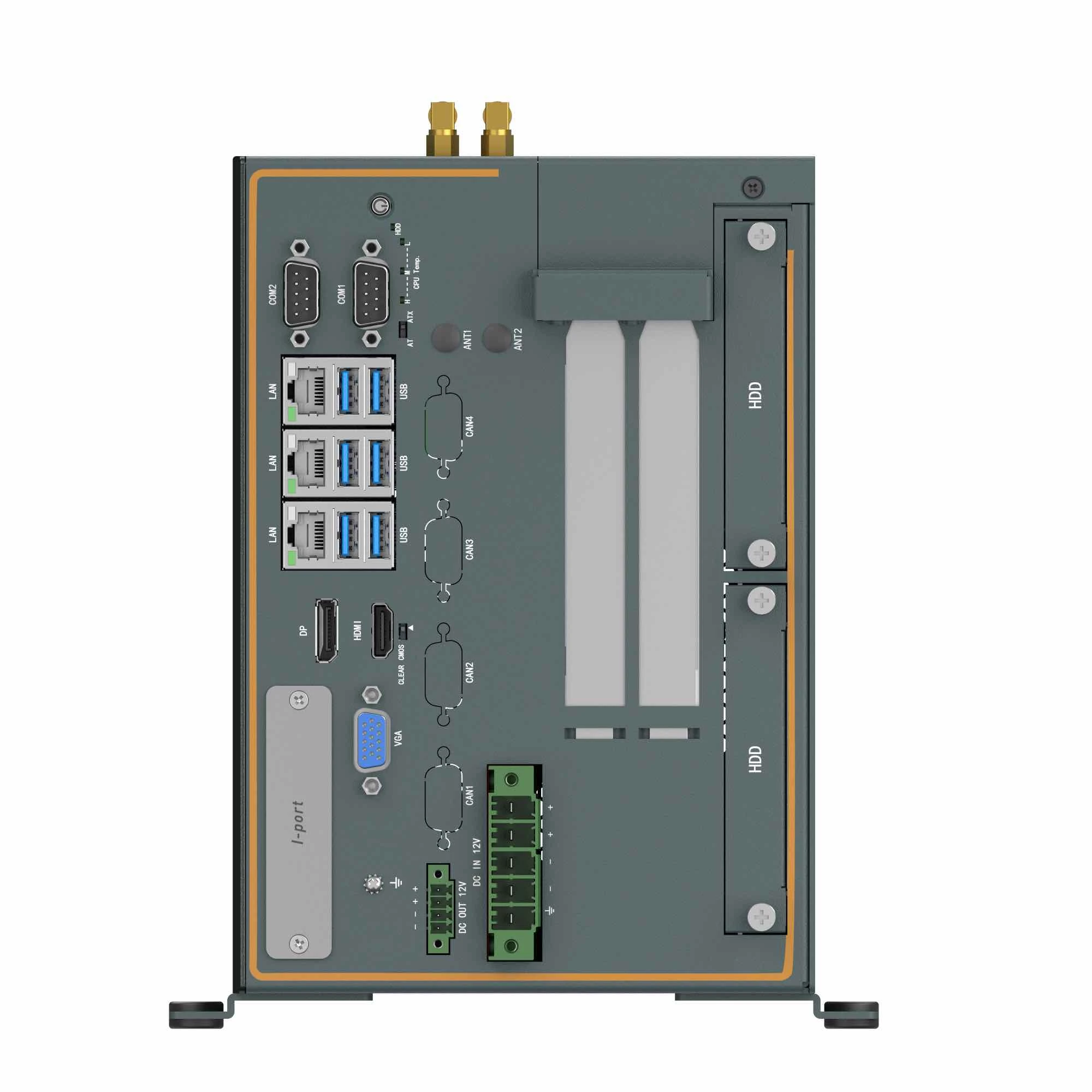

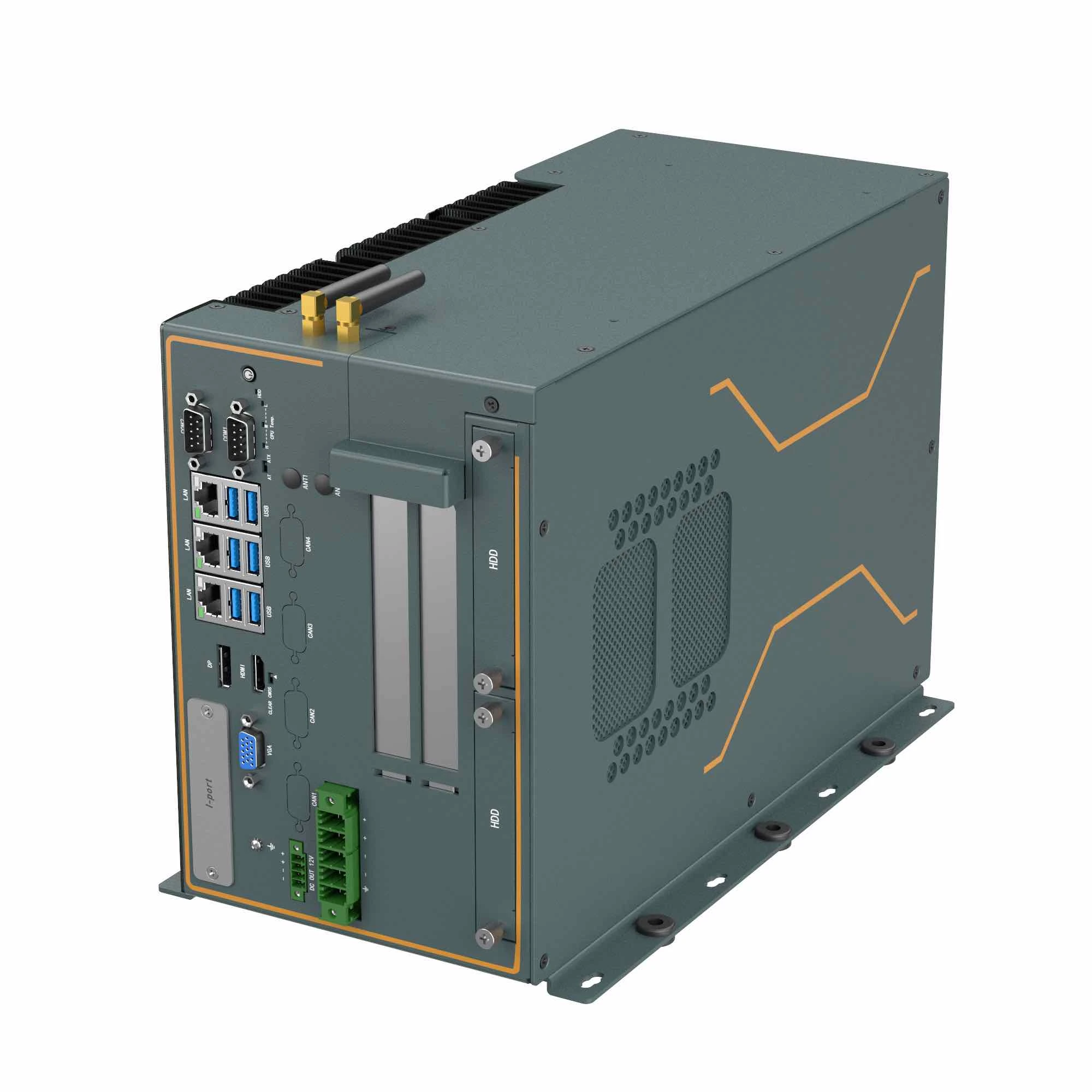

| I/O Interface | 3*RJ45 Gig-LAN; 4*USB3.2(gen2.0 10Gbps, Type A,); 2*USB3.2(gen1.0 5Gbps, Type A); 2*RS232/422/485(via BIOS, DB9 male); 1*VGA+1*DP+1*HDMI; 1*Line out+1*Mic (3.5mm phone jack)； 2*USB2.0(pin header inside); 16bit DIO (2*10pin header inside); 1*F_Audio (pin header inside) |
| I-port | Support 16bit DIO pin header lead wire , USB2.0 or Mini PCIe and other expansion interfaces lead wire |
| LED | 1*Power LED(on power button), 1*HDD LED, 3*CPU temp LED（Red is warning , Yellow is high, Green is normal） |
| Control SW | 1*Power button w/LED, AT/ATX dip, Clear Cmos dip |
| Power Supply | DC IN 12V, 5-pin 7.62mm Term., with short circuit(SCP) and overcurrent(OCP) protection, maximum output power 1000W TDP: TBD |
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second |
| OS Support | Windows 11，Windows 10 IoT Enterprise 2021 LTSC, Ubuntu, SuSe, Red Hat Enterprise, Wind River Linux, Wind River VxWorks 7 |
| Structure | SGCC frame, Aluminum-magnesium alloy chassis, temperature control by PWM fan |
| Color | Granite gray + Black |
| Mounting | Desktop Mounting, with anti-vibration rubber pads |
| Dimension | (W*H*D)：195*374.7*254.8 mm |
| Net weight | TBD |
| Operating temperature | -20℃～60℃, airflow |
| Storage Temperature | -40°C~85°C |
| Storage Humidity | 10~95%@40°C, Non-condensing |
| Vibration | 5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD) |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD） |
| Certification/EMC | CE/FCC Class A |
