Key features

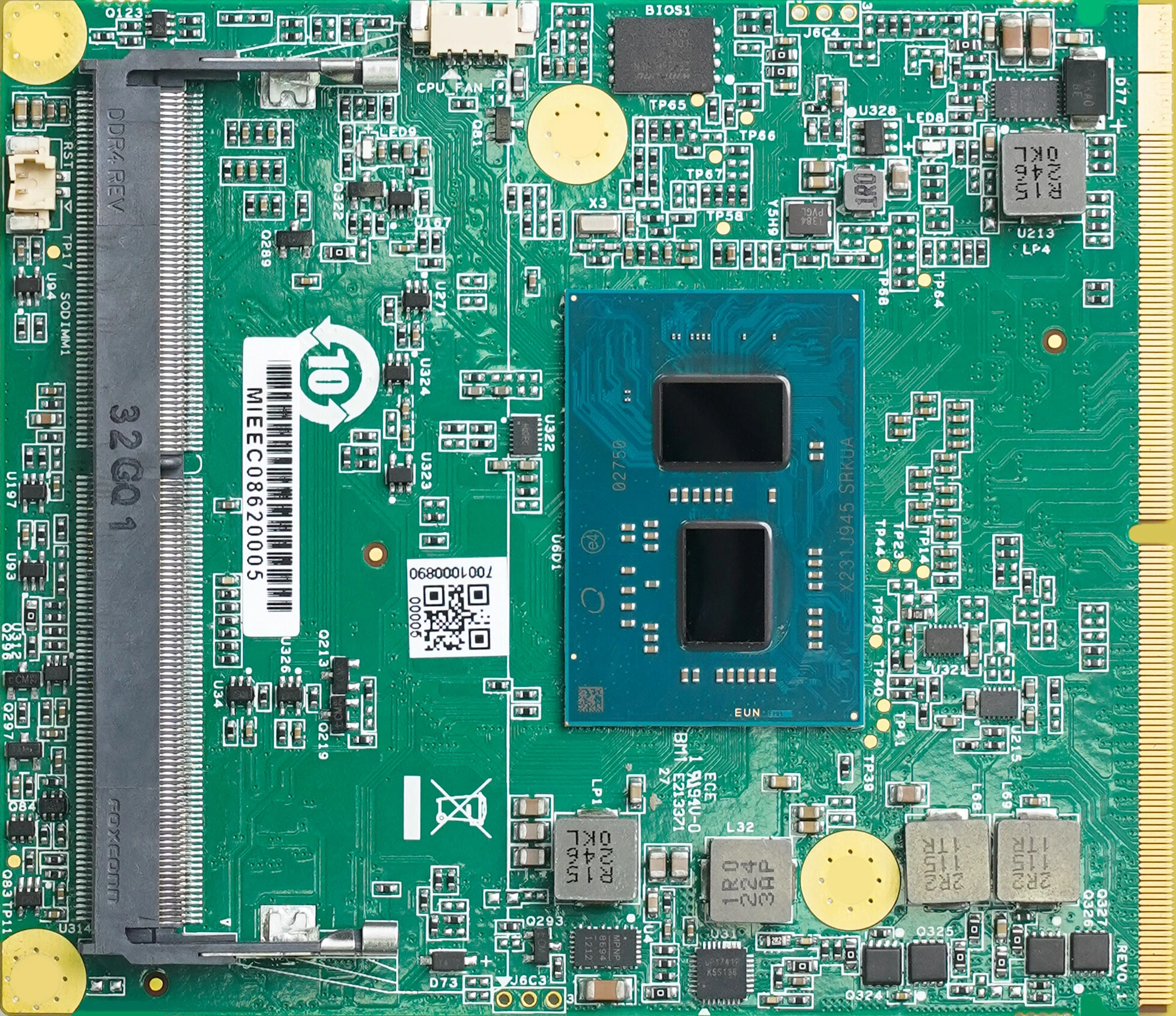

- Intel Elkhart lake Soc CPU module
- Single-channel DDR4 3200MHz, up to 32GB
- 2*DDI output, 1*eDP
- 4*PCIeX1，1*PCIeX2
- 2*SATA，4*USB3.1，10*USB2.0，1*HDA，4*UART，GPIO，1*eSPI
- DC IN 12V
CPU | CPU | Celeron J6412 | Celeron N6210 |
|
| |
Cores | 4 | 2 |
|
| ||
Total Threads | 4 | 2 |
|
| ||
Frequency | 2.0~2.6 GHz | 1.2~2.6 GHz |
|
| ||
TDP-up | 10W | 6.5W |
|
| ||
Memory | Single channel DDR4 2*260-pin SO-DIMM, up to 3200MHz, 32GB | |||||
Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors Support for DirectX12.1, OpenGL and OpenCL DP 1.4 max. res. 4096×2160@60Hz, eDP max. res. 4096×2160@60Hz | |||||
MXM 3.1 Goldfinger (281-Pin) | DDI | 2 | ||||
eDP | 1 | |||||
PCIeX1 | 4 | |||||
PCIeX2 | 1 | |||||
USB3.1 | 4 | |||||
USB2.0 | 10 | |||||
SATA(PCIeX1) | 2 | |||||
eSPI | 1 | |||||
HDA | 1 | |||||
SM BUS | 1 | |||||
Legacy IO | 1 | |||||
| RTC | 1 |
UART | 4 | |
GPIO | 3 | |
F-Panel: Power SW/Reset/PW-LED/HDD-LED | ||
Power Supply | DC IN 12V | |
Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | |
OS Support | Windows 10 64bit, Windows 11 64bit, SUSE, Ubuntu, Wind River, Linux | |
Dimension | (W*H)：95*82mm | |
Operating temperature | 0～60℃ | |
Storage Temperature | -40°C~85°C | |
Storage Humidity | 10~90%@40°C, Non-condensing | |
EMC/Certification | CE/FCC Class A | |
