Modul CPU Intel® Tiger lake U Soc, mendukung DDR4 saluran tunggal 3200MHz, hingga 32GB. DC DALAM 12V.

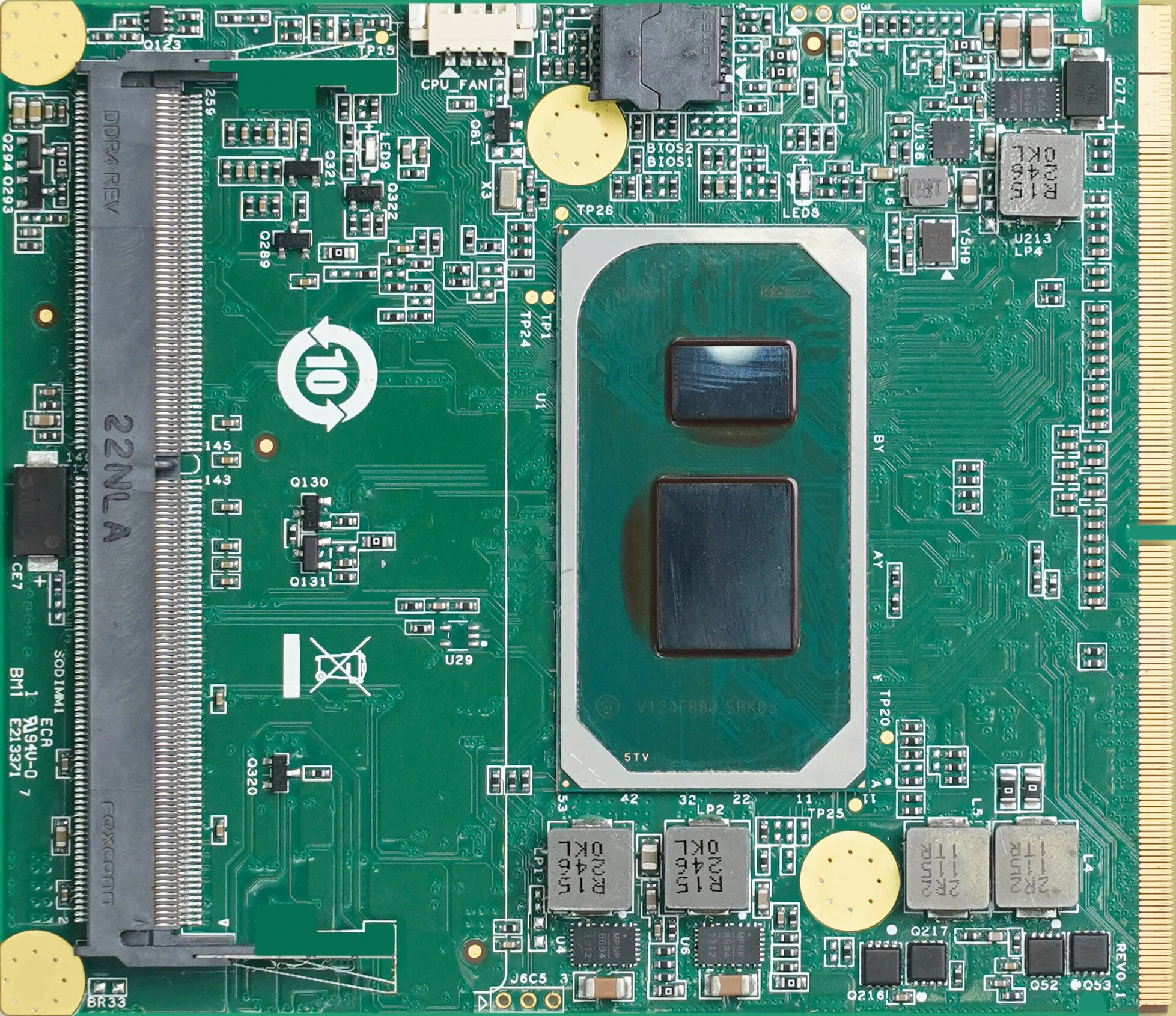

NODE-I914 didukung oleh CPU Intel® Tiger lake U Soc, mendukung memori DDR4 3200Mhz saluran tunggal, hingga 32GB. Ukuran modul motherboard tipis dan kecil, yang merupakan produk ekonomis dengan konsumsi daya rendah dan ekspansi fleksibel, cocok untuk aplikasi otomasi industri, keamanan, perlindungan lingkungan, logistik dan manajemen pergudangan.
CPU | CPU | i7-1165G7 | i5-1135G7 | i3-1115G4 | Celeron 6305E | |
Cores | 4 | 4 | 2 | 2 | ||
Total Threads | 8 | 8 | 4 | 2 | ||
Frequency | 2.8~4.7 GHz | 2.4~4.2 GHz | 3.0~4.1 GHz | 1.8 GHz | ||
TDP-up | 28W | 28W | 28W | 15W | ||
Memory | Single channel DDR4 260-pin SO-DIMM, up to 3200MHz, 32GB | |||||
Graphics | Intel® Iris® Xᵉ Graphics, Supports DirectX12.1 OpenGL 4.6 and OpenCL 3.0 HDMI 2.0 max. res. 4096×2304@60Hz, DP 1.4 max. res. 7680×4320@60Hz, eDP max. res. 4096×2304@60Hz | |||||
MXM 3.1 Goldfinger (281-Pin) | DDI | 2 | ||||
eDP | 1 | |||||
USB3.2 | 4 | |||||
USB2.0 | 10 | |||||
PCIeX1 | 4 | |||||
PCIeX2 | 1 | |||||
PCIeX4 | 1 | |||||
eSPI | 1 | |||||
SATA(PCIeX1) | 2 | |||||
HDA | 1 | |||||
SM BUS | 1 | |||||
| Legacy IO | 1 |
RTC | 1 | |
UART | 4 | |
GPIO | 3 | |
F-Panel: Power SW/Reset/PW-LED/HDD-LED | ||
Power Supply | DC IN 12V | |
Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | |
OS Support | Windows 10 64bit, Windows 11 64bit, SUSE, Ubuntu, Wind River, Linux | |
Dimension | (W*H)：95*82mm | |
Operating temperature | 0～60℃ | |
Storage Temperature | -40°C~85°C | |
Storage Humidity | 10~90%@40°C, Non-condensing | |
EMC/Certification | CE/FCC Class A | |
