Modul CPU Intel® Comet lake-S, mendukung DDR4 saluran ganda 2933 MHz, hingga 128GB. DC DALAM 12V.

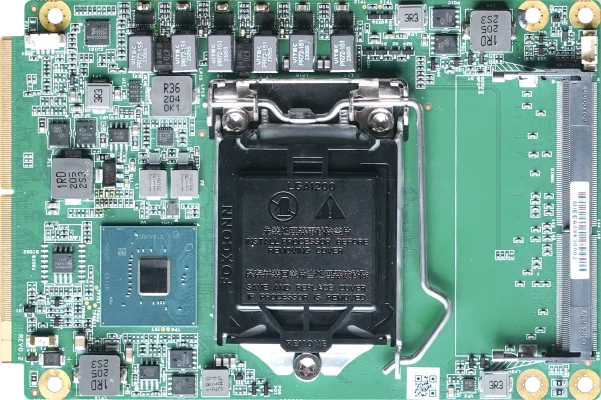

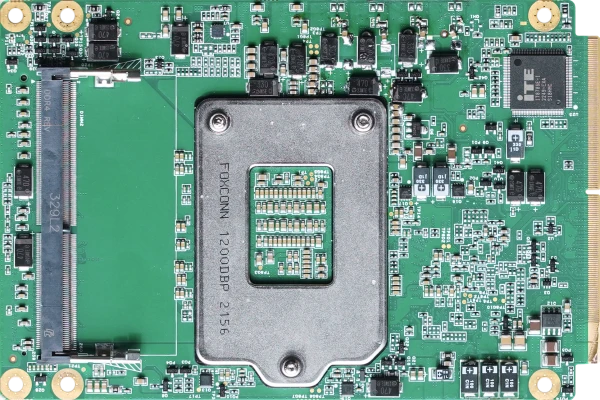

NODE-I973 ditenagai oleh CPU Intel® Comet lake-S dan chipset Intel H420E. mendukung memori DDR4 2933MHz saluran ganda, hingga 128GB. Ukuran modul motherboard tipis dan kecil, yang merupakan produk ekonomis dengan konsumsi daya rendah dan ekspansi fleksibel, cocok untuk aplikasi otomasi industri, keamanan, perlindungan lingkungan, logistik dan manajemen pergudangan.
CPU | Intel 10th Gen. Cometlake-S Core i9/i7/i5/i3/Celeron | |
Memory | Dual channel DDR4 2*260-pin SO-DIMM, up to 2933MHz, 128GB | |
Graphics | Intel® UHD Graphics 630 supports DirectX 12, OpenGL 4.5, and OpenCL 2.1 HDMI for 4K ultra HD display max. res. 4096*2160@30Hz, DP max. res. 4096 x 2304@60Hz, eDP max. res. 4096 x 2304@60Hz | |
MXM 3.1 Goldfinger (281-Pin) | DDI | 2 |
eDP | 1 | |
USB3.2 | 6 | |
USB2.0 | 10 | |
PCIeX1 | 5 | |
PCIeX2 | 1 | |
SATA | 4 | |
LPC(eSPI) | 1 | |
HDA | 1 | |
SM BUS | 1 | |
Legacy IO | 1 | |
RTC | 1 | |
UART | 3 | |
GPIO | 3 | |
F-Panel: Power SW/Reset/PW-LED/HDD-LED | ||
Power Supply | DC IN 12V |
Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second |
OS Support | Windows 10 64bit, Windows 11 64bit, SUSE, Ubuntu, Wind River, Linux |
Dimension | (W*H)：150*100mm |
Operating temperature | 0～60℃ |
Storage Temperature | -40°C~85°C |
Storage Humidity | 10~90%@40°C, Non-condensing |
EMC/Certification | CE/FCC Class A |
