Intel® SKL/KBL-S CPU, 2xLAN, VGA+HDMI+DVI, 6xCOM, 4xUSB3.0，5xUSB2.0, 4xPCIe/PCI, 4xSATA Bay, 4U rackmount, ATX power

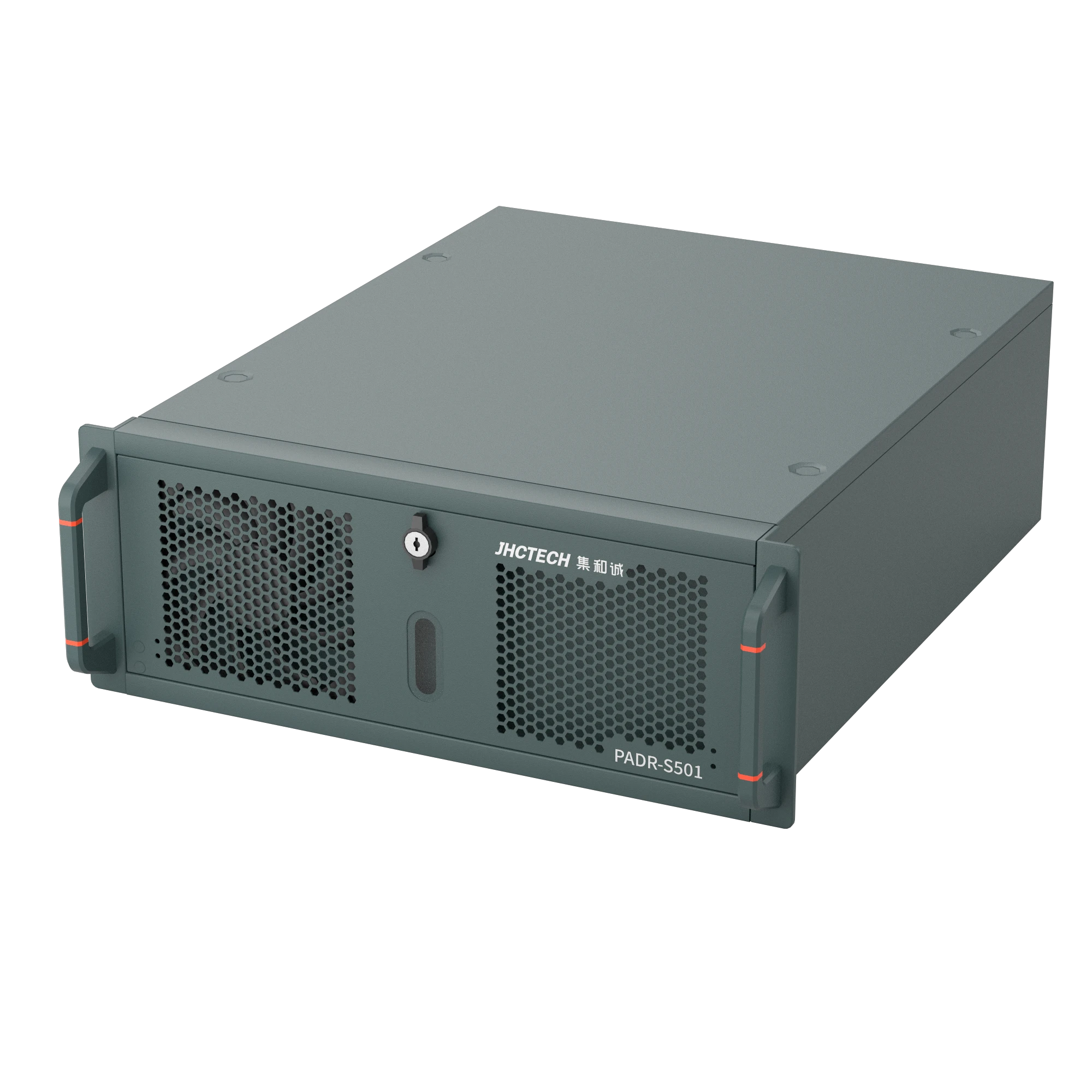

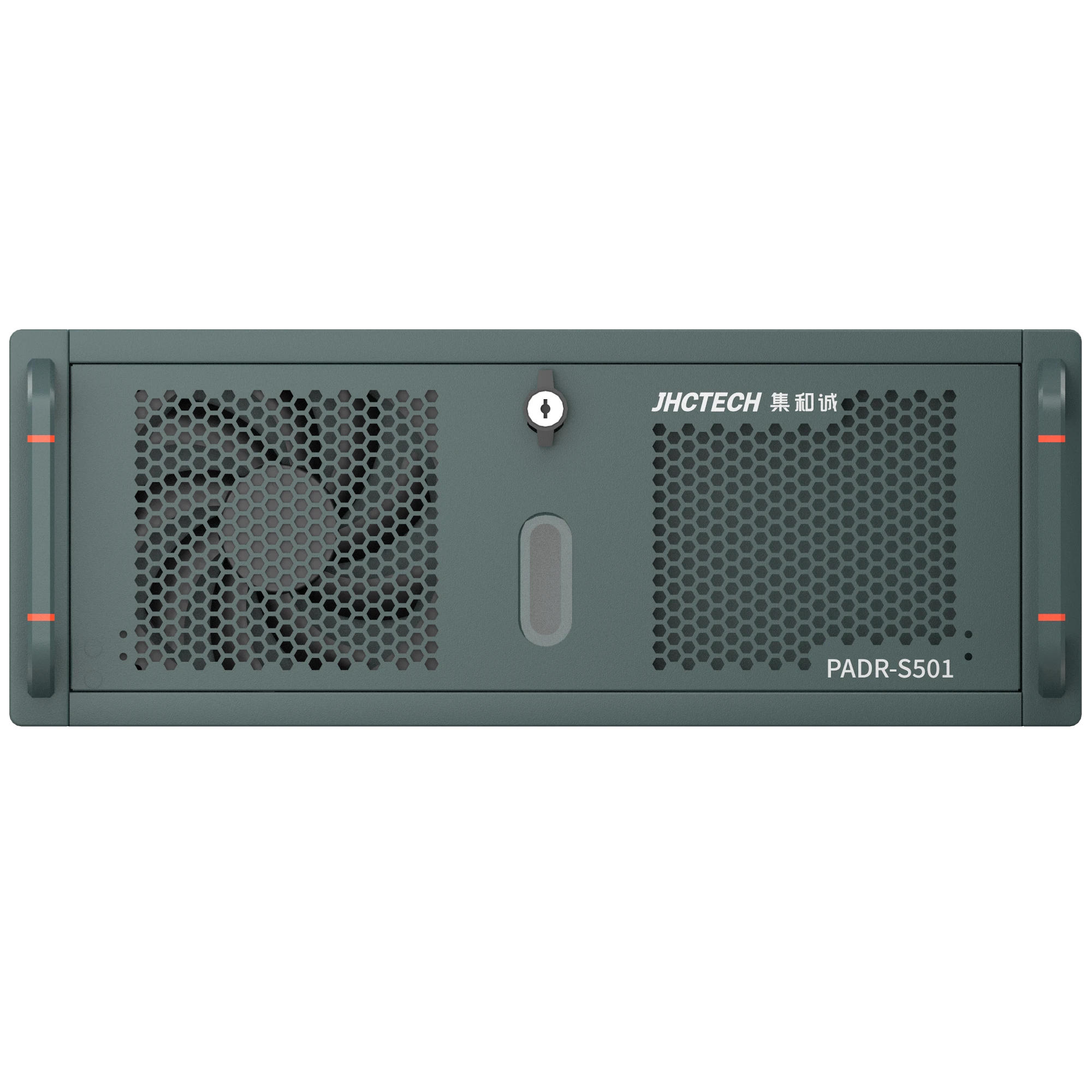

PADR-S501-953 adalah komputer industri standar rackmount 19″ berukuran 4U dengan chipset Intel H110 yang ditenagai oleh prosesor seri Intel® gen 6/7th SKL/KBL-S LGA1151. Dilengkapi dengan beragam IO fungsional, kemampuan ekspansi 4 PCIe/PCI, desain pendinginan udara yang sangat baik, pilihan sumber daya ATX dengan konsumsi daya yang berbeda, cocok untuk bidang seperti visi mesin, mesin perkakas CNC, dan otomatisasi garis produksi pabrik.
System | CPU+PCH | Intel gen 6/7th SKL/KBL-S Core i7/i5/i3/Pentium/Celeron LGA1151 CPU, up to 91W, H110 chipset |
| Memory | 2×288-pin Non-ECC UDIMM , dual channel DDR4 2133/2400MHz, up to 32GB | |
| Expansion | 1xPCIeX16 Gen3.0 slot, 2xPCIeX4 Gen2.0 slot (PCIeX1 signal), 1×32-bit PCI slot 1xFull size Mini PCIe (PCIe X1 signal) | |
| Graphics | Intel HD Graphics, Supports DirectX 12, OpenGL 4.5 AVC/VC1/MPEG2/HEVC/VP8/JPEG.HW HD codec HDMI max. res. 4096*2034@24Hz，VGA max. res. 1920*1200@60Hz, DVI-D max. res. 1920*1200@60Hz | |
| Audio | Realtek ALC897 or ALC662VD controller, Support 5.1 channel | |
| LAN | 1xIntel I211AT，10M/100M/1000M self-adapt，support WOL 1xIntel I219LM，10M/100M/1000M self-adapt，support WOL | |
| Storage | 4xSATA3, 6.0Gbps interface, the box is designed with 4×3.5 “and 2×2.5” 5 anti-vibration hard disk bay, 1 ultrathin DVD driver bay, can realize multi-category combined storage | |
| Rear I/O | 2xLAN(RJ45); 1xHDMI+1xVGA+1xDVI-D; 1xLine out+1xMic 2×3.5mm phone jack 4xUSB3.0 Gen2 (5Gb/s, Type A), 2xUSB2.0(Type A)，support USB Power to switch between Systemmode(+5V) and +5VSB mode through jumper 2xRS232/422/485 (DB9 male), 1xRS232(DB9 male), optional 1xLPT (DB25 female) | |
| Front I/O | 2xUSB2.0(Type A) | |
| Internal I/O | 8bit DIO, 1xUSB2.0(Type A), 1*LPT pin header, 3*RS232 pin header, 1xF_AUDIO, 1xAMP, 1xLPC, the built-in interface can be elicited through an extension window | |
| Switch & LED | Front with Power Button, Reset Button, Power LED, HDD LED, on board with USB Power jumper, AT/ATX jumper, Clear CMOS jumper | |
| Power Supply | AC100-240V input, standard ATX power supply 300W, optional 500W and 750W; TDP: TBD | |
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | |
| OS Support | Windows 7(SKL-S supports 32-bit and 64-bit, KBL-S supports 64-bit), Windows 10, Linux | |
Mechanical | Structure and Mounting | Door with lock design, SGCC steel plate, metal mold molding; Mounted on 19”rack, optional mounting rail set |
| Cooling | Linear airflow design, front 12025 ball bearing fan, optional 2 rear 8025 ball bearing fan | |
| Color | Granite grey | |
| Dimension | (W*H*D)：430x470x173mm | |
| Net weight | 14.0kg | |
Environmental | Operating Temperature | 0～50℃ |
| Storage Temperature | -40°C~70°C | |
| Storage Humidity | 10~95%@40°C, Non-condensing | |
| Vibration | 5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD) | |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD） | |
| EMC/Certification | CE/FCC Class A, 3C |
