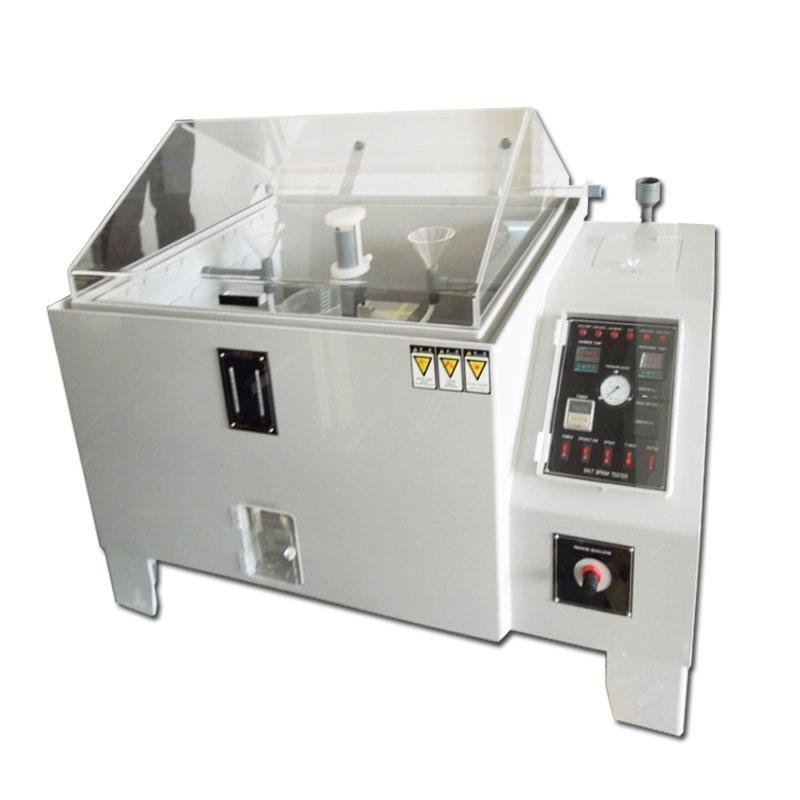

Salt Spray Chamber HD-E808-90

Applicable Standards:

ASTM B117, ASTM G85, ASTM D1141-98

DIN EN ISO 9227 (NSS, ESS, CASS)

DIN 50942, DIN 53 167

ASTM B 117-73, ASTM B 287-74, ASTM B 368-68

DIN EN  60068-2-11

BS 1224, BS 2011, BS3900 F4, BS 3900 F12, BS 5466 Part 1, BS 5466 Parts 2+3

NFX 41002

AS 21331 Section 3.1

SIS 1841190

JIS Z 2371



Industri Aplikasi:

Ruang semprot garam terutama merupakan simulasi buatan dari lingkungan standar korosi, yang digunakan untuk menguji lingkungan korosif jangka panjang dalam ketahanan korosi lapisan material atau permukaan. Ruang uji semprotan garam banyak digunakan dalam perangkat keras, elektroplating, elektronik, bahan kimia, otomotif, penerbangan, pelapis, kawat dan kabel, papan sirkuit, komunikasi dan industri lainnya.



Fitur ruang semprot garam:

Menyediakan Host USB untuk USB flash drive

Antarmuka kontrol operator layar sentuh.

Kanopi yang dioperasikan secara pneumatik ‘Easy Open’.

Paking segel kering mencegah pakaian operator pembasahan, dll.

Ambang pemuatan rendah untuk bongkar muat.

Reservoir larutan garam berdiri lantai berkapasitas besar.

Sertifikat kalibrasi.

Pilihan warna kanopi.

Set rak sampel.

Volume ruang eksperimental:
60L / 90L / 120L / 160L / 800L (dapat disesuaikan)



Salt spray chambers Specification:

Model HD-E808-90
Internal Size (L×W×H) 900x600x500mm
External Size (L×W×H) 1410x880x1280mm
Equipment Material Both inside & outside shell adopt P.V.C rigid plastic board
Temperature Range Room temperature ~ 55℃
Temperature Fluctuations ≤±0.5℃
Temperature Uniformity ≤±2℃
Temperature Precision ±1℃
Spraying method Continuous and Periodic spray type
Test Chamber Temperature Salt Spray Method (NSS ACSS)35±1℃
Corrosion-resistant Testing Method (CASS) 50±1℃
Saturated air Barrel Temperature Salt Spray Method (NSS ACSS)47±1℃
Corrosion-resistant Testing Method (CASS) 63±1℃
Brine Temperature 35℃±1℃
Spray Quantity 1.0~2.0 ml / 80cm2 / hr
PH value Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume 270L
Brine Tank Capacity 25L
Multiple Safety Protection Devices Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories Testing Salt/ Measuring tank/Nozzle Equipment x 1 set
Air source 1HP Air pump (provided by buyer)
