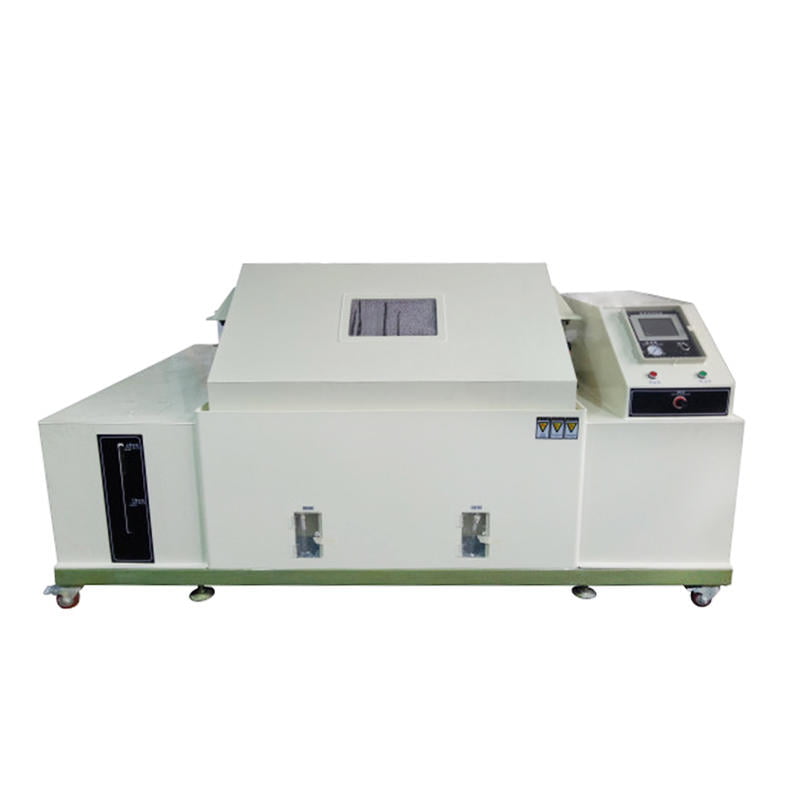

Standard Parameters
| Model | HD-E808-160-1 |
| Internal size (L*W*H) | 1600*1000*600mm |
| External size (L*W*H) | 3000*1650*1700mm |
| Equipment material | Both inside & outside shell adopt P.V.C rigid plastic board |
| Temperature range | Ambient~60℃ (No humidity if temp. below +25℃) |
| Temperature fluctuation | ±2℃ |
| Humidity range | 30% – 98% |
| Temperature fluctuation | ±3%RH |
| Salt spray test | Concentration of salt solution: 5%
Spray quantity: 1.0~2.0 ml / hr / 80cm2 PH value: 6.5~7.2 (at ambient temperature) |
| Spraying method | Continuous and Periodic spray type |
| Lab volume | 960L |
| Brine tank capacity | 40L |
| Multiple safety protection devices | Over pressure protection, over temperature protection, over load fuse protection |
| Air source | 2.5HP Air pump, pump capacity with 60L or above
(provided by buyer) |
| Power supply source | Single-phase, 220V±10%, 50/60Hz |
The table parameters is for the company Standard Model parameters, we support customer customization parameters
Chamber Material
| Item | Specification |
| Internal chamber | High temperature resistant 8mm PVC, anti-corrosion and easy to clean |
| Chamber cover | High temperature resistant 10mm PVC |
| Saturated barrel | Imported 8mm PP impact resistance plate, high temperature and corrosion resistance, equipped with water level indicating device |
| Heating system | Titanium electric heater, corrosion resistance |
| Blower | Multi-blade blower |
| Water pump | Corrosion resistant pump |
| Solenoid valve | JPA series |
| Sample shelves | Test Angle: 15 ° – 30 °, adjustable |
| Viewing window | Double vacuum organic glass |
| Controller | PLC controller, touch screen |
| Water supply | Adopts automatic water charging system for long time operation. |
The table parameters is for the company Standard Model parameters, we support customer customization parameters
Product Features
1, Double layers sample placing design to improve the usable area of internal chamber.
2, Adopt high precision temperature and humidity controller for temperature, humidity and drying tests.
3, Two poles air inlet decompression to ensure stable spray pressure.
4, Spray tower has conical disperser to lead and adjust the uniformity and dripping volume of salt fog.
5, Perfect safety protection device with audio alarm and auto stop function.
6, Have saturate process for spray compressed air to ensure stable test environment and prevent nozzles from block.
7, With time controller for auto power off when setting time arrive.
