| Item | Specification |
| Rainfall collector | Diameter :φ200mm, height: 350mm |
| Range rainfall | 0-500mm |
| Allow rainfall intensity | Max: 10mm/min |
| Resolution | 0.2mm |
| Accuracy(2mm/min) | ±4% |
| Maximum load voltage | 30VDC(pulse output) |
| Maximum load current | 20mA(pulse output) |
| Output | Reed switch pulses,RS485(12-24VDC supply) |
| Operating temperature(no freeze) | -20-+80℃ |
| Main material | Collector:304SS,tipping bucket:ABS |
| Tipping bucket | Single |
| Heating(optional) | Heating power: approx.350W Heating voltage:220VAC |
| Collector filter | Removable filter (prevent leaves and sundries)optional |
| Weight(unpacked) | 3.5kg |

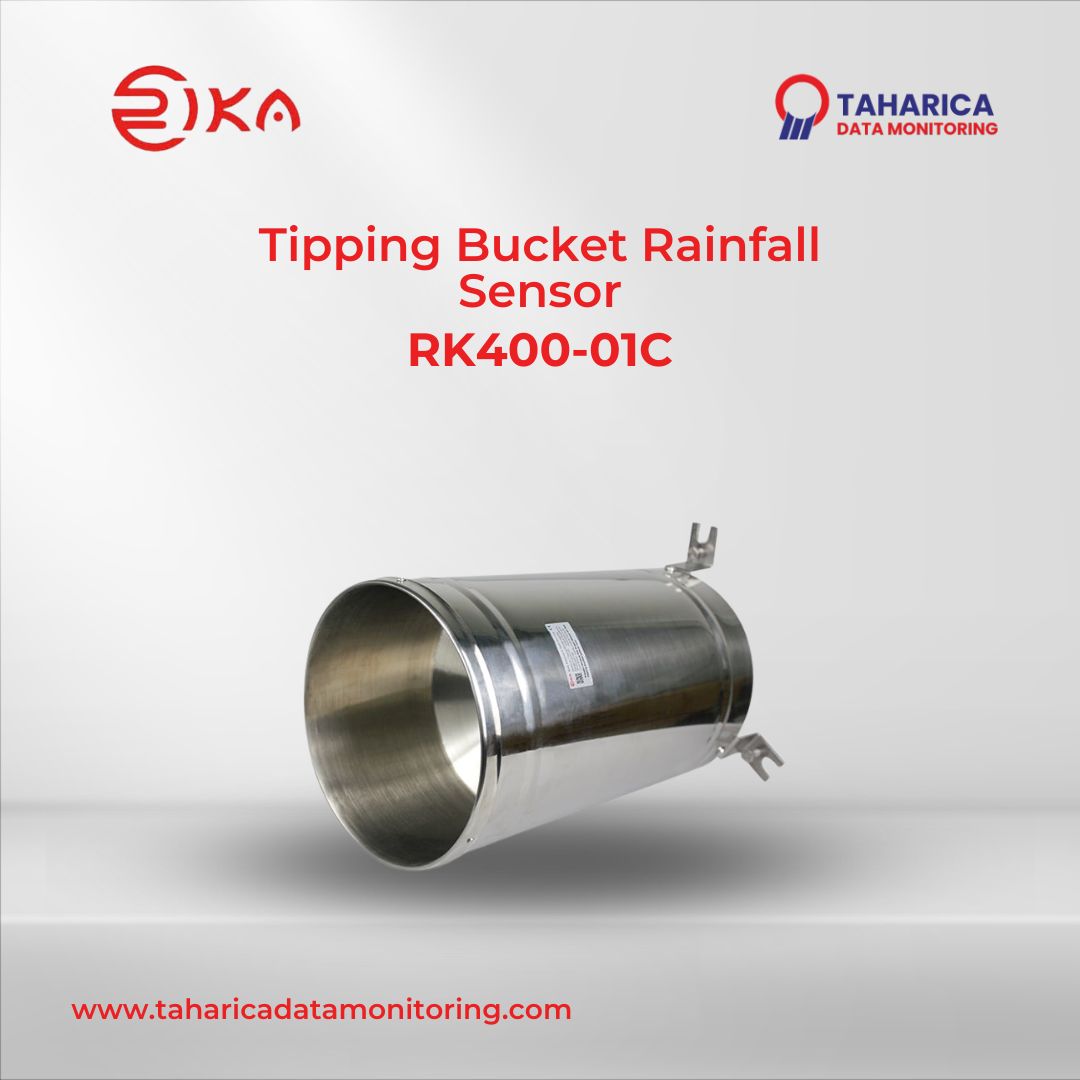

Sensor Curah Hujan RK400-01C Tipping Bucket Rainfall Sensor
