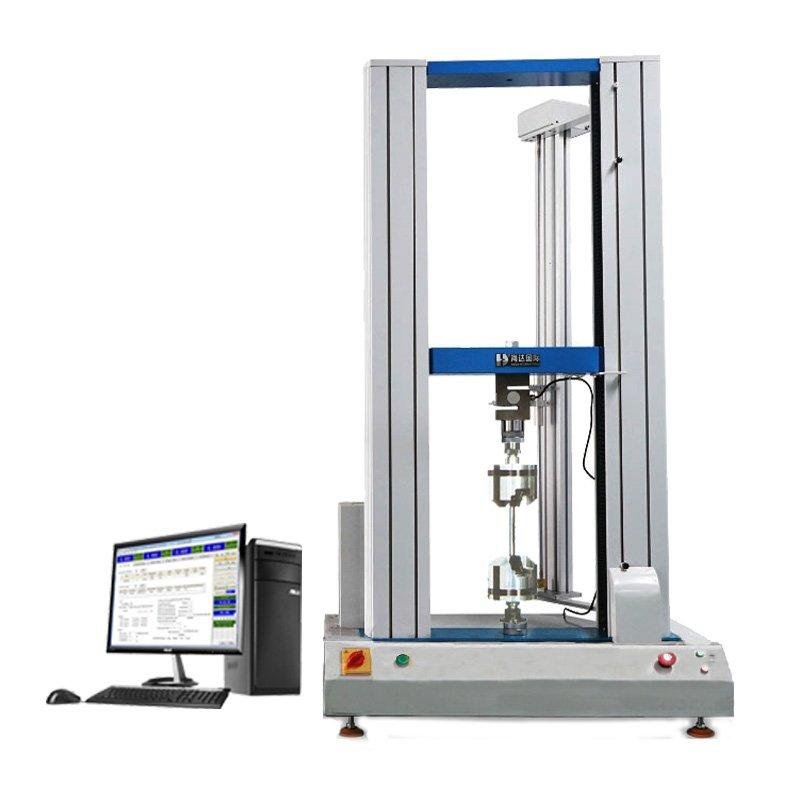

Tensile Testing Equipment With Electric

1. Briefly Introduce:
These series of Tensile Testing Equipment With Electric is used to test tension, compression, shearing force, adhesion, peeling force, tear strength…etc. of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile…etc., which are the basic facilities for input quality contorl (I.Q.C), Quality Control (Q.C.), Physical Inspection, Mechanics Research and Material Development.

  1. Design criteria
    GB/T 16491, GB/T 1040, GB/T 8808, GB/T 13022, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 16825, GB/T 17200, GB/T 3923.1, GB/T 528, GB/T 2611, GB/T 6344, GB/T 20310, GB/T 3690, GB/T 4944, GB/T 3686, GB/T 529, GB/T 6344, GB/T 10654, HG/T 2580, JC/T 777, QB/T 2171, HG/T 2538, CNS 11888, JIS K6854, PSTC-7, ISO 37, AS 1180.2, BS EN 1979, BS EN ISO 1421, BS EN ISO 1798, BS EN ISO 9163, DIN EN ISO 1798, GOST 18299, DIN 53357, ISO 2285, ISO 34-1, ISO 34-2, BS 903, BS 5131, DIN EN 12803, DIN EN 12995, DIN53507-A, DIN53339, ASTM D3574, ASTM D6644, ASTM D5035, ASTM D2061, ASTM D1445, ASTM D2290, ASTM D412, ASTM D3759/D3759M
  2. Specifications
ItemDescription
Frame capacity2000kg
Load cell brandGermany brand load cell for high accuracy,

2000kg (500,1000kg are optional)

Load accuracy0.5% F.S
Control systemPC with windows 7 system
MotorPanasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
Force readingkgf, Ibf, N, KN, T etc
Vertical test space1200mm including fixture
Horizontal test space≤400mm
Test speed0.1~500mm/min (adjustable)
SoftwareTM 2101
Curves displayLoad- elongation, Elongation-time, Time-elongation, Stress-strain
Data displayMax. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety featuresE-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat



  1. Features
    1). Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
    2). Using a single-screen operation; do not need to switch the screen;
    3). With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
    4). The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
    5). Choosing translational, comparative mode at the same time to make a number of curve data comparison;
    6). With a variety of measurement units, Measure In Imperial & Metric are switchable;
    7). With self-return & auto-correction function;
    8). With automatic magnification function, in order to achieve the most appropriate size of the graphics;
    9). With the user-defined Test methods; with experimental data analysis function;
    10). High quality, accurate and reliable models with reasonable price.5. Standard
    ASTMD903, GB/T16491, GB/T1040, GB/T8808, GB13022, GB/T 2790/2791/2792, CNS-11888, JIS K6854, PSTC-7.
