Torsion Fatigue Testing Machine PNW-2000

Minta Penawaran
Compare
Add to wishlist
Kategori: Material Testing Machine
Share:
  • Deskripsi
  • Ulasan (0)
Deskripsi

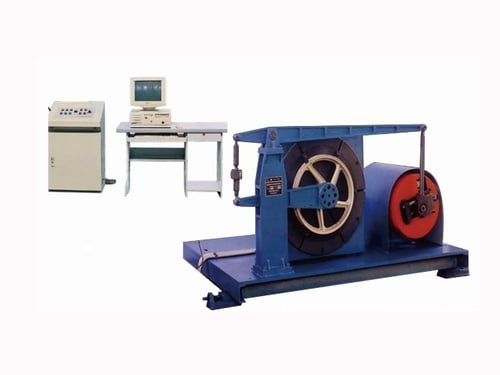

PNW-2000 terutama terdiri dari tiga bagian: rangka beban, kabinet kontrol listrik dan sistem pengukuran dan kontrol mikrokomputer. Silinder listrik servo membalas ke atas dan ke bawah dengan menghubungkan sel beban, dan kemudian menggerakkan lengan booster untuk membalas ke atas dan ke bawah untuk memutar torsi lengan gaya, sehingga menerapkan torsi ke roda.

Standar

Ini memenuhi standar GB / T 22435-2008 , QC / T211-1996, QC / T212-1996, JASO T 203-85, ISO8644-1988, ISO8645-1988, GB / T6147-92.

Aplikasi

Ini terutama digunakan untuk menyelesaikan tes kelelahan torsi dan inspeksi ke velg ringan Sepeda Motor atau Sepeda Motor Ringan.



Max.torque 2000 Nm
Max.load 5000N
Wheel rim width 1.25’’ – 8’’
Resolution ±1% of 20%FS
The arm of force 600mm
Frequency 1-5HZ
Accuracy ≤±5%
Diameter of tested wheel 10-19 inch
Displayed test times 106
