Specifications:

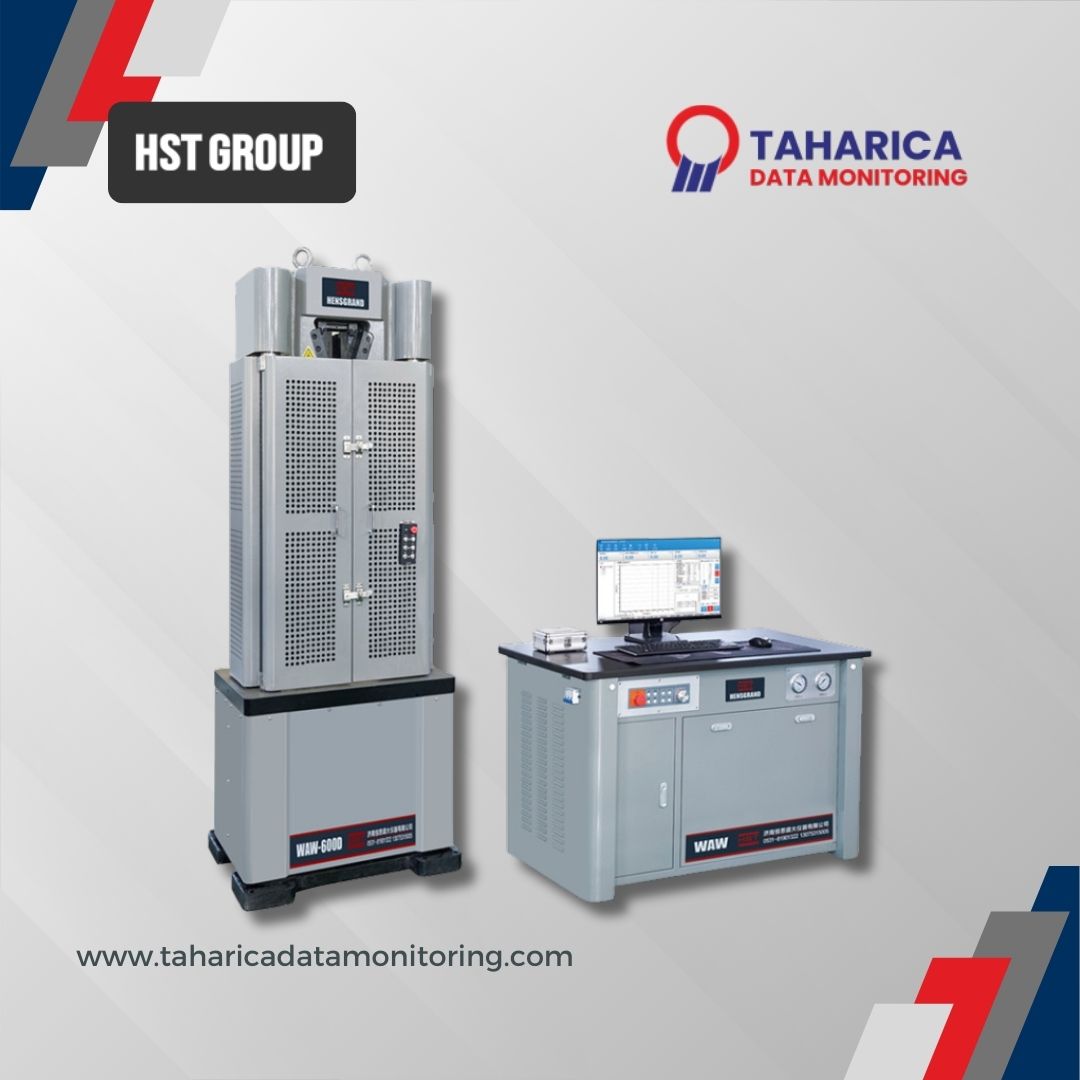

| Model | WAW-1000D |
| Structure | 4 columns and 2 screws |
| Control way | Constant stress uniform deformation constant displacement three closed loop control and program control dealing |
| Max.load (kN) | 1000kN |
| Load accuracy | ≤±1% |
| Load range | 2%-100%FS |
| Load resolution | 1/300000 |
| Deformation Measurement Range | 2%～100%FS |
| Deformation accuracy | ≤±1% |
| Displacement resolution (mm) | 0.01 |
| Displacement error | ≤±0.5% |
| Max.piston stroke(mm) | 250 |
| Max piston moving speed | 0-90mm/min stepless speed adjusting |
| Crosshead lifting speed | 200mm/min |
| Max. tension test space | 980mm/1350(PC strand) |
| Max.Compression Test Space | 700/1000mm |
| Column Effective Spacing(mm) | 650 |
| Clamping method | Hydraulic clamp |
| Round specimen clamping range (mm) | Φ13-Φ26,Φ26-Φ45 (6-13 Optional) Φ9.5-Φ21.6(PC strand) |
| Flat specimen clamping range (mm) | 0-20 (20-40 Optional) |
| Flat specimen clamping width(mm) | 100 |
| Compression plate size (mm) | φ160 |
| Bending roller distance(mm) | 450 |
| Width of bending rollers (mm) | 120 |
| Power supply | 3-phase,AC380V, 50Hz（can be customized） |
