| MODEL | WAW-300Q | WAW-600Q | WAW-1000Q |
| Max. Load capacity(kN) | 300 | 600 | 1000 |
| Structure | Four column | ||
| Accuracy of testing load(%) | ±0.5 | ||
| Accuracy of deformation(%) | ±0.5 | ||
| Test Range | 1%-100% | ||
| Deformation measurement range | 1%-100% | ||
| Posion rising speed（mm/min） | 0-250 | 0-250 | 0-150 |
| Piston descending speed（mm/min） | 0-250 | 0-250 | 0-180 |
| Test Force Loading Rate Range | 0.02%-2%FS/s | ||
| Max. Tensile space(mm) | 400 | 580 | 700-1000 |
| Max. Compression space(mm) | 300 | 460 | 520 |
| Actuator stroke(mm) | 370 | 580 | 650 |
| Max. Loading speed(mm/min) | 100 | 100 | 75 |
| Distance between columns(mm) | 500 | 490×330 | 660×400 |
| Clamping method | Hydraulic Automatic Clamp With Side Action Grip | ||
| Round insert(mm) | Ф10-32 | Ф10-40 | Ф13-Ф26；Ф26-Ф40 |
| Flat insert(mm) | 2-25 | 2-30 | 2-40；40-60 |
| Compression platens(mm) | 240*240 | 240*240 | 240*240
240*240 |
| Dimensions of load frame(mm) | 880x630x2980 | 880x630x2980 | 980x720x3530 |
| Weight(kg) | 1500 | 3000 | 5000 |

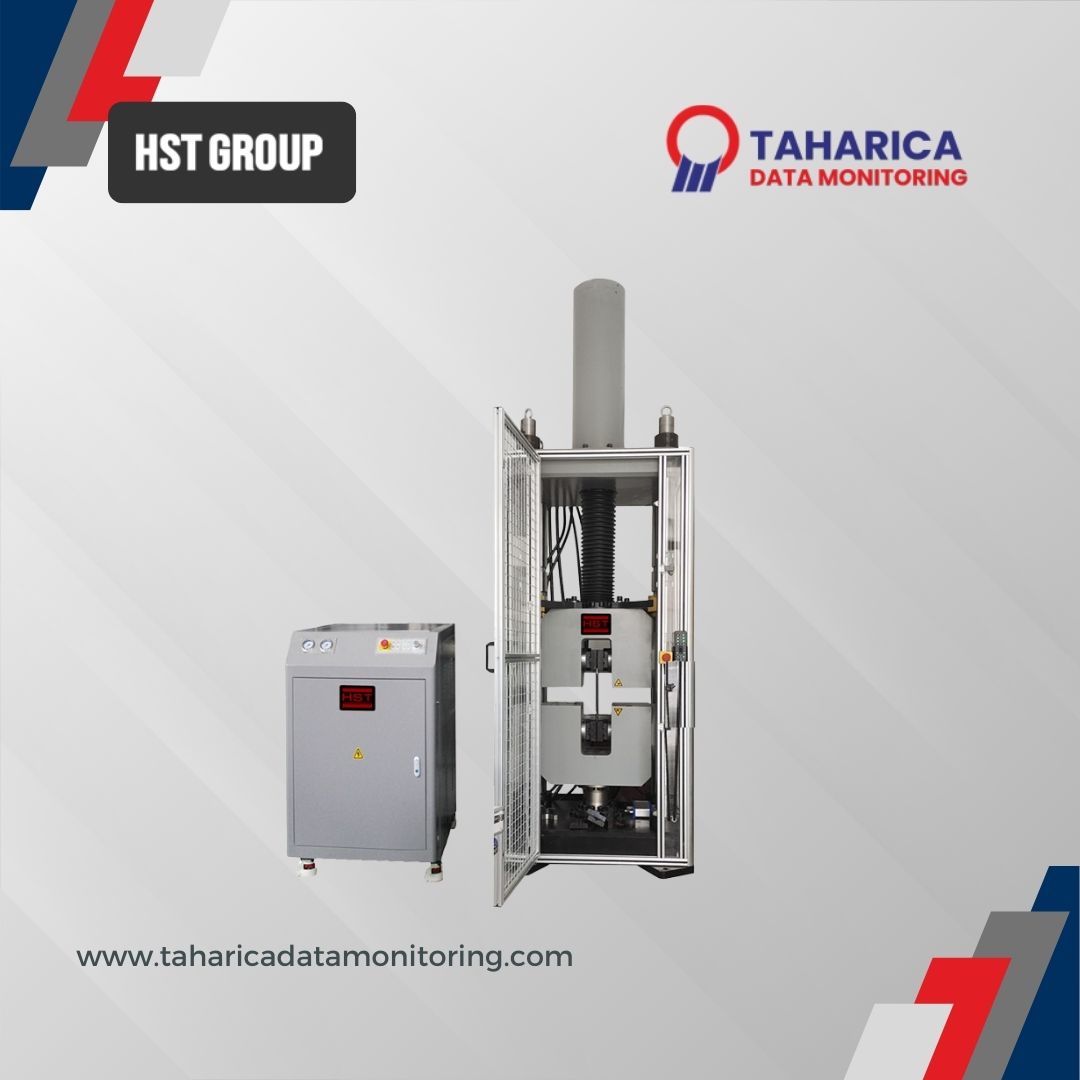

WAW-Q Electro-hydraulic Servo Rebar Tension Testing Machine(600KN,1000KN)
