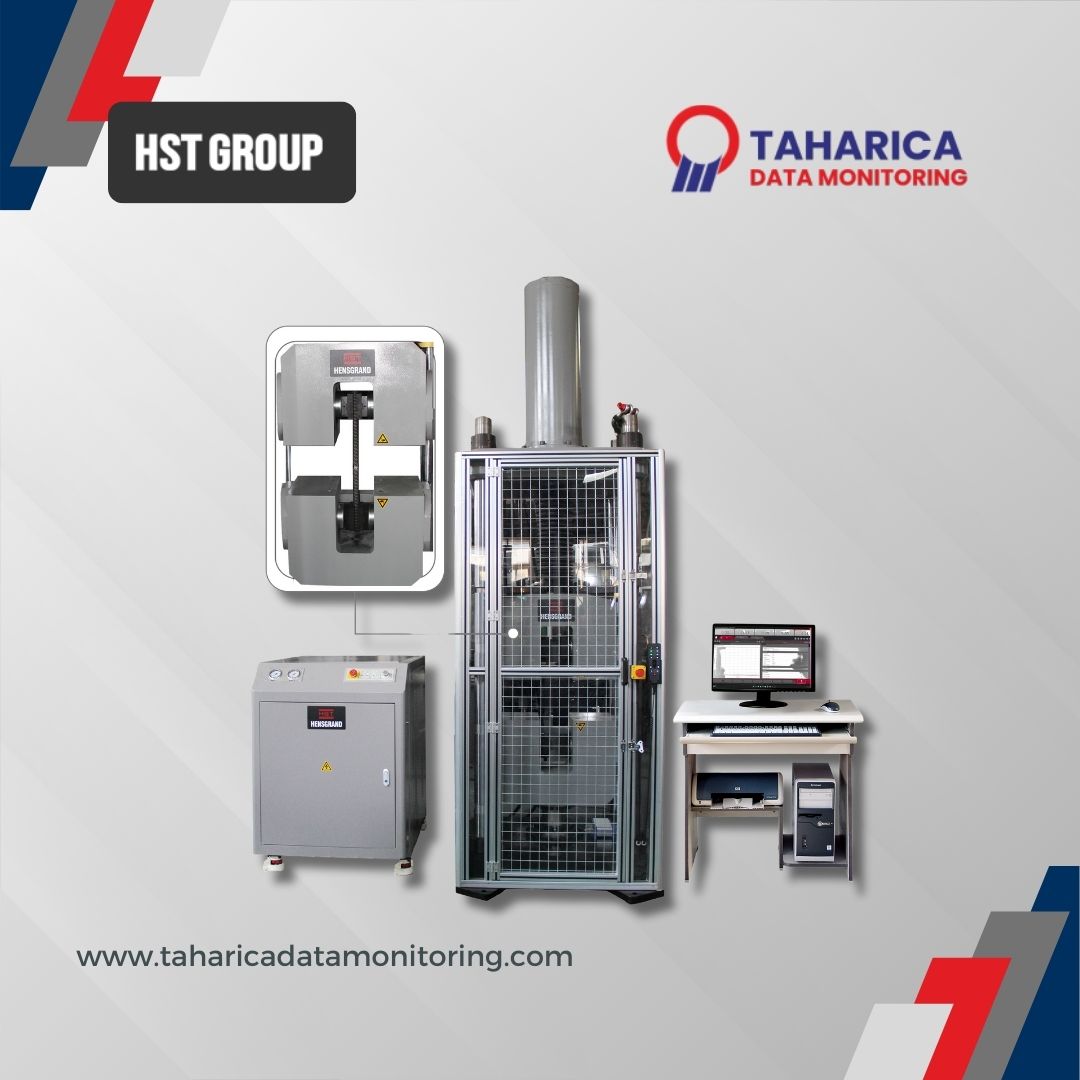

WAW-Q Series Universal Testing Machines is designed with single workspace. It can do tension, compression, bending and shearing tests. Force measurement is through load cell. With long travel actuator stroke, it is suitable to test standard specimens, long length specimens, and specimens with large elongation.
Standards
ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221, ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.
| MODEL | WAW–2000Q | WAW–3000Q |
| Max. Load capacity(kN) | 2000 | 3000 |
| Structure | Four column | |
| Accuracy of testing load(%) | ±0.5 | |
| Accuracy of deformation(%) | ±0.5 | |
| Test Range | 1%-100% | |
| Deformation measurement range | 1%-100% | |
| Posion rising speed（mm/min） | 0-100 | 0-100 |
| Piston descending speed（mm/min） | 0-100 | 0-100 |
| Test Force Loading Rate Range | 0.02%-2%FS/s | |
| Max. Tensile space(mm) | 700 | 800 |
| Max. Compression space(mm) | 650 | 520 |
| Actuator stroke(mm) | 700 | 800 |
| Max. Loading speed(mm/min) | 50 | 100 |
| Distance between columns(mm) | 810×490 | 900×540 |
| Clamping method | Hydraulic Automatic Clamp With Wedge Grip | |
| Round insert(mm) | Ф15-Ф40; Ф40-Ф70 | Ф15-Ф40; Ф40-Ф70 |
| Flat insert(mm) | 10-40;40-70 | 10-70 |
| Compression platens(mm) | 240*240 | 240*240 |
| Dimensions of load frame(mm) | 1505x1186x4178 | 1505x1186x4178 |
| Weight(kg) | 8500 | 11500 |
