1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2..Standards:
ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T228-2002,etc.
Specifications:

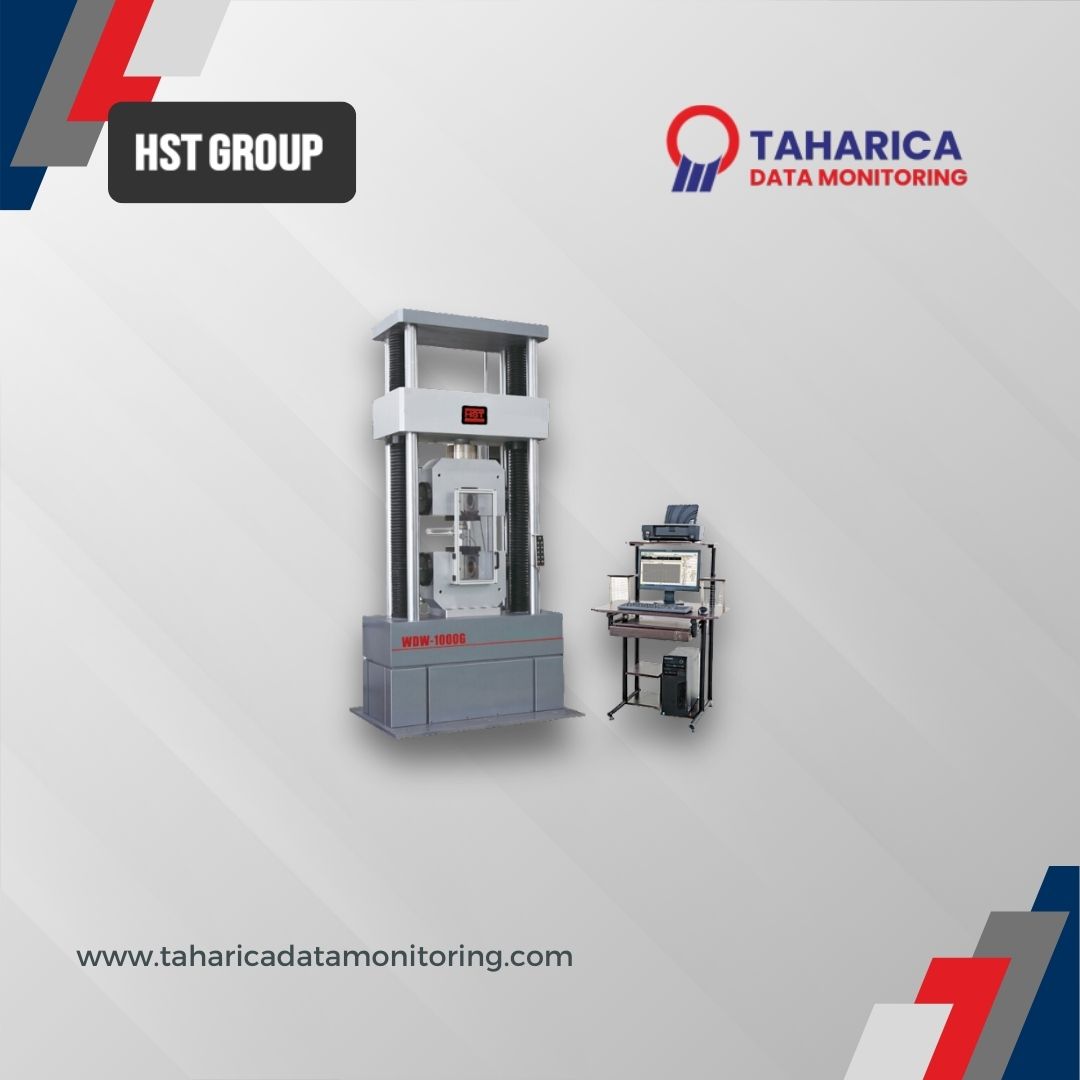

| Model | WDW–1000E |
| Max. Load(kN) | 1000 |
| Structure | Four-column floor or desk model, (upper is compression and lower is tensile) |
| Cover | All aluminum alloy |
| Control method | Computer control |
| Load accuracy | Class 1 |
| Load range | 2%～100%F·S |
| Load resolution | 1/300000 |
| Rang of deformation | 4%-100%FS |
| Resolution of deformation | 0.04um |
| Accuracy of displacement | Within±0.5%of indicating load |
| Resolution of displacement | 0.01mm |
| Test speed(mm/min) | 0.001-200 stepless arbitrary setting |
| Tensile space(mm) | 600（can be customized） |
| Compression space(mm) | 600（can be customized） |
| Test width(mm) | 650（can be customized） |
