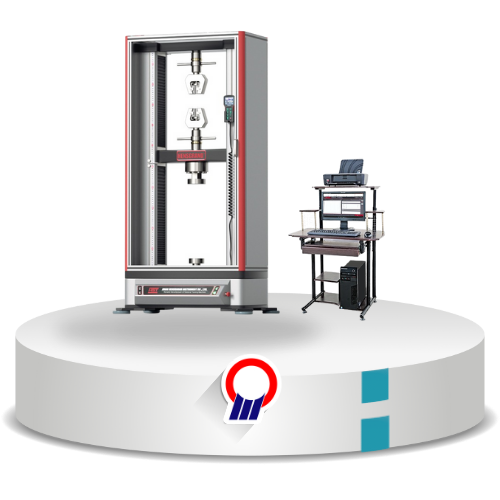

Alat ini dapat digunakan untuk berbagai jenis material dalam pengujian tarik, tekan, lentur, geser, dan uji siklus rendah. Cocok untuk pengujian logam, karet, plastik, pegas, tekstil, serta berbagai komponen. Alat ini banyak digunakan di industri terkait, kegiatan penelitian dan pengembangan, lembaga pengujian, serta pusat pelatihan.
| Model | HST WDW-50E | HST WDW-100E |
|---|---|---|
| Max. Load (kN) | 50 | 100 |
| Load accuracy | Class 0.5 | Class 0.5 |
| Load range | 0.2% ~ 100% F·S | 0.2% ~ 100% F·S |
| Load resolution | 1/500000 | |
| Resolution of deformation (µm) | 0.04 | |
| Accuracy of displacement | Within ±0.5% of indicating load | |
| Resolution of displacement (mm) | 0.01 | |
| Test speed (mm/min) | 0.005–1000 | 0.005–500 |
| Speed accuracy | Within ±0.5% of set speed | |
| E-Tensile space (mm) | 770 | 650 |
| E-Compression space (mm) | 1000 | 1000 |
| D-Test width (mm) | 450 | 550 |
| F-Beam travel distance (mm) | 1100 | |
| Power supply | AC220V ±10%, 50Hz/60Hz (can be customized) | |
| Video show | https://youtu.be/KyIRjSt60mQ |
|
