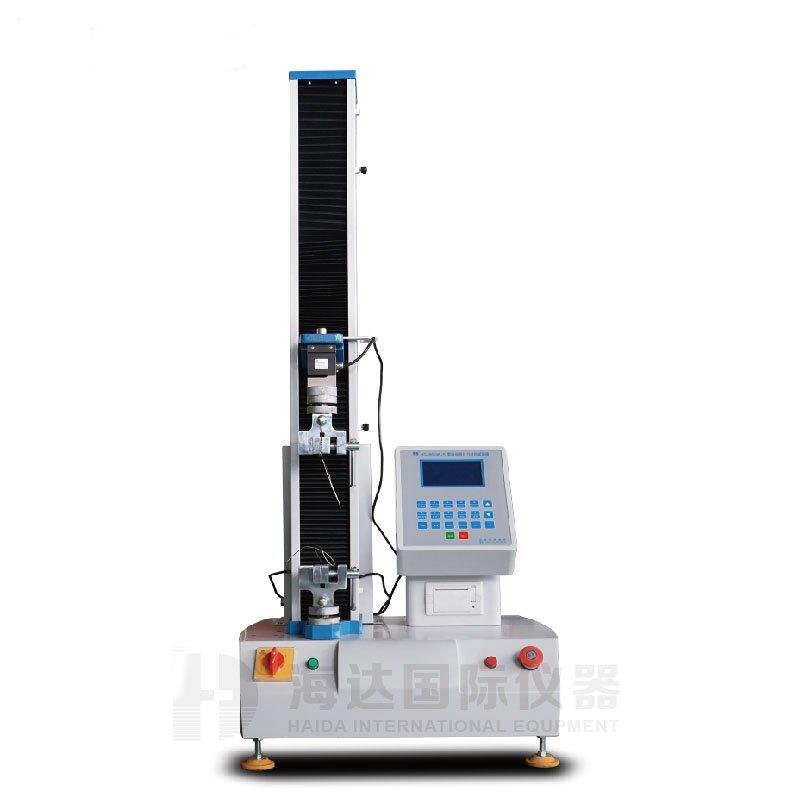

adhesive tape peel test equipment

Product produce:
Adhesive tape peel test equipment is used to measure adhesive and stripping  as well as run seal strength tests, 180° peel, 90° peel, and T-peel tests.

SensorCeltron load cell
Capacity5, 10, 20, 25, 50, 100, 200kg
Unit SwitchoverG, KG, N, LB
Display DeviceLCD or PC
Max. Stroke1000mm (including fixture)
Test Speed0.1-500mm/min (adjustable )
MotorPanasonic Servo Motor
ScrewHigh Precise Ball Screw
Elongation Accuracy0.001mm
Power1ø, AC220V, 50HZ
AccessoriesOne set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual


Product Features

  1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
  2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
  3. Data transmission: RS232
  4. Displacement resolution: 0.001mm
  5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress – strain.
  6. Adhesive tape peel test equipment can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.

Adhesive tape peel test equipment suitable for 180° peel, 90° peel , adhesive tape, stickers, packaging tape, medical adhesive tape, Electrical insulating tape, Coating with adhesive tape, Anticorrosion tape, waterproof adhesive tape, plastic adhesive tape,etc.

The applicable standards of adhesive tape peel test equipment including but not limited:
GB/T 16491、GB/T 1040、HG/T 2580、JC/T 777、QB/T 2171、BS EN ISO 1798、GOST 18299、DIN 53357、ISO 34-2、BS 903、BS 5131、ASTM D3574
