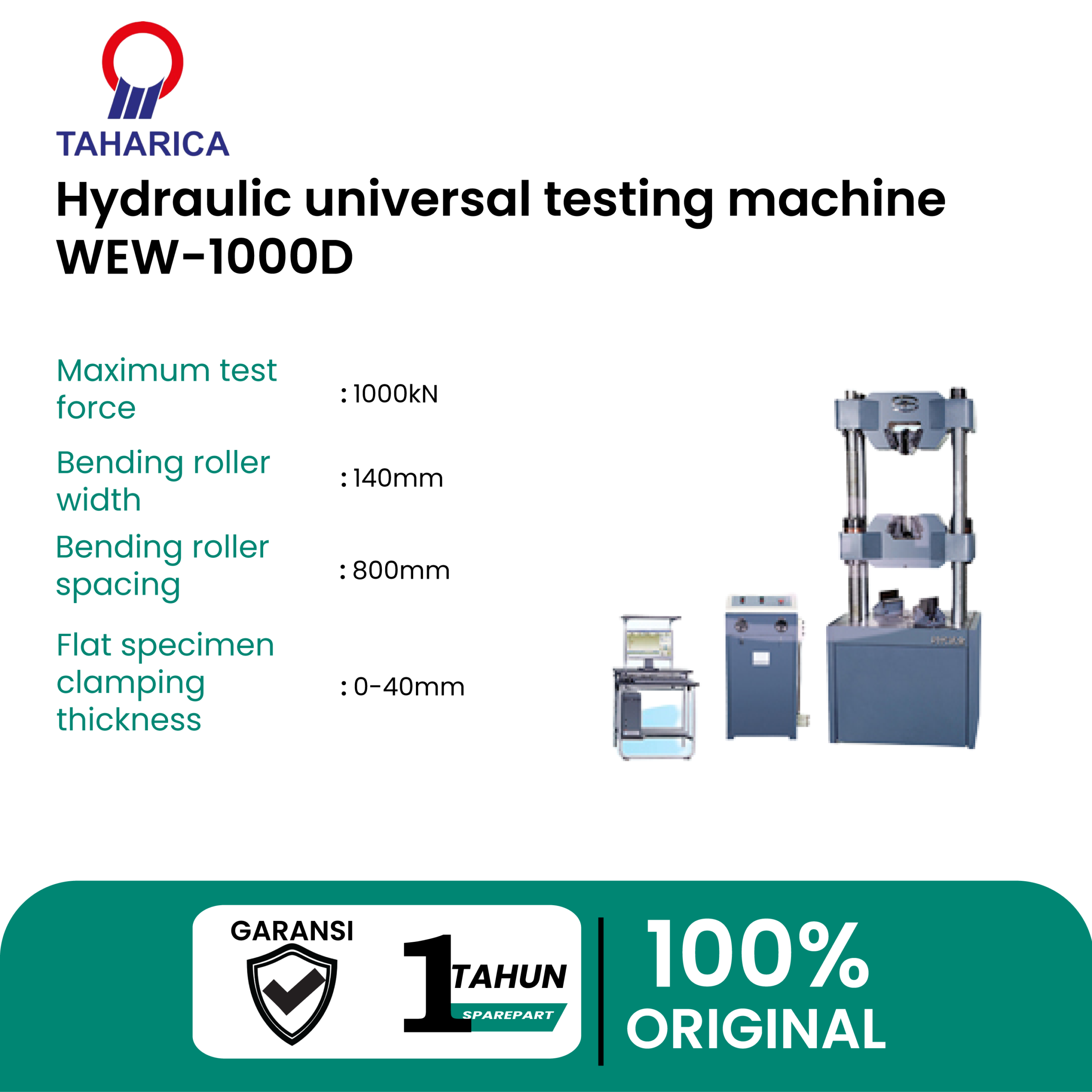

Alat Uji Tekan dan Tarik Hidrolik Universal WEW-1000D Microcomputer Screen Display Hydraulic Universal Testing Machine

serial number	technical name	WEW-300D	WEW-600D		WEW-1000D
1	Maximum test force kN	300	600		1000
2	Relative error of test force indication	≤ ±1% of the indicated value
3	Test force measurement range	2%~100% of the maximum test force
4	Clamping method	hydraulic clamping
5	Round specimen clamping diameter mm	Φ10~Φ32		Φ13~Φ40	Φ13~Φ60
6	Flat specimen clamping thickness mm	0~15		0~30	0~40
7	Flat specimen clamping width mm	80			125
8	Maximum tensile test space mm	650		650	600
9	Maximum compression test space mm	550		550	470
10	Control cabinet dimensions mm	610×700×1100
11	Dimensions of main engine (including piston stroke) mm	840 × 620 × 2210			950×900×2510
12	Host mass kg	1600		1600	5000
13	Upper and lower platen size mm	Φ160			204×204
14	Bending roller spacing mm	350		600	800
15	Bending roller width mm	140			140
16	Allowable bending degree mm	100			150
17	Shear sample diameter mm	Φ10
18	Piston maximum stroke mm	200			250
19	Piston maximum moving speed mm/min	about 70			about 50
20	Test space adjustment mechanism	Motor reducer sprocket chain drive
