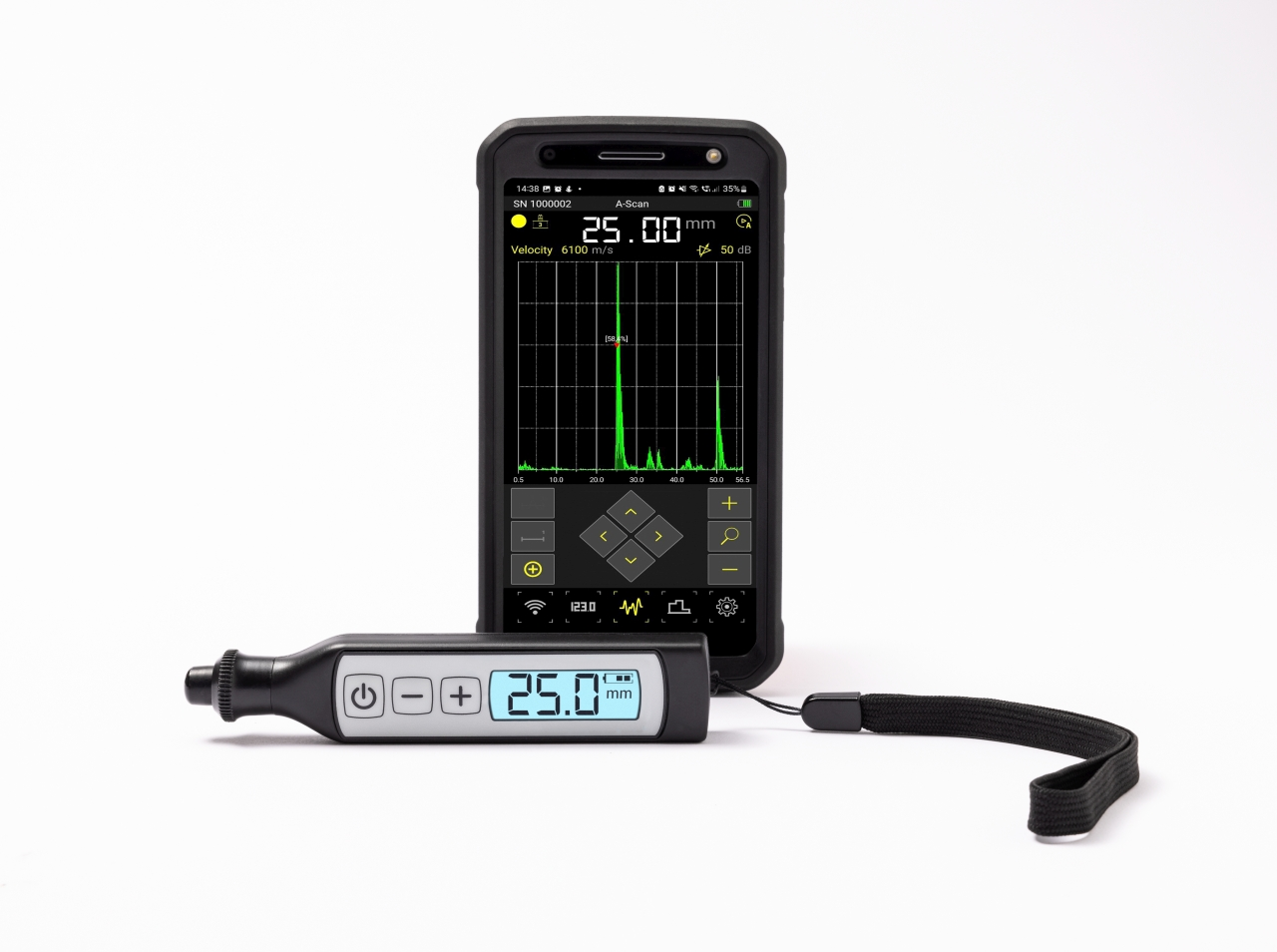

Alat ukur ketebalan logam tipe saku berukuran kecil yang dapat digunakan secara nyaman dan mudah. Dengan built-in modul bluetooth, hasil pengukuran real time dapat dilihat melalui ponsel atau PC via aplikasi android dan iOS.
Alat ukur ketebalan ini dapat mengukur ketebalan pada dinding boiler, vessel atau kapal kargo, pelat lambung kapal, dan benda lain yang terbuat dari logam besi dan non-besi, serta untuk pengukuran ketebalan ultrasonik pada pipa logam dan plastik berdiameter kecil (dari 20 mm)
Thickness measurement range (for steel) by dual-crystal and single-crystal transducers
0.8 to 50 mm / 0.02 to 2 inch
5 to 150 mm / 0.04 to 6 inch

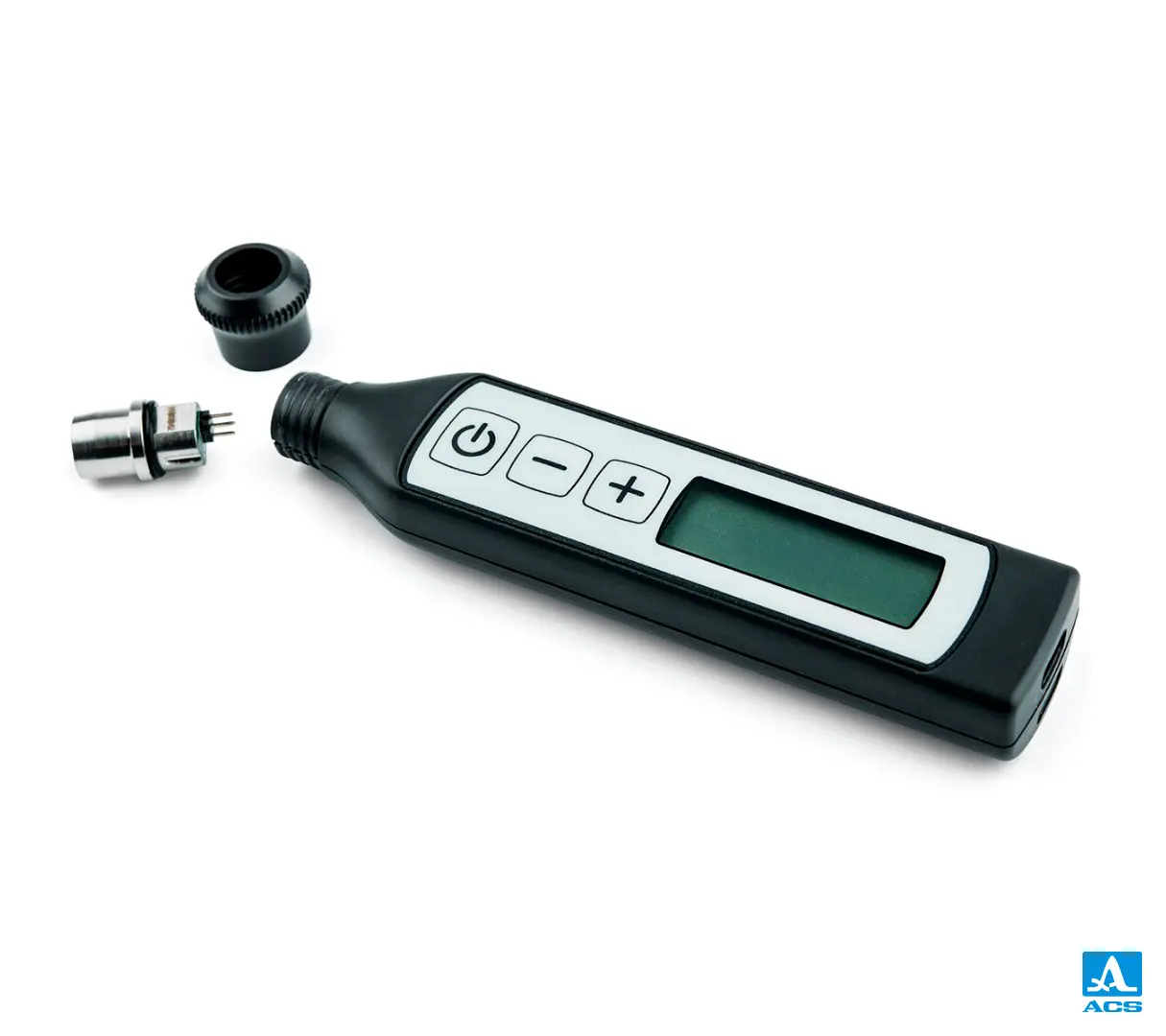

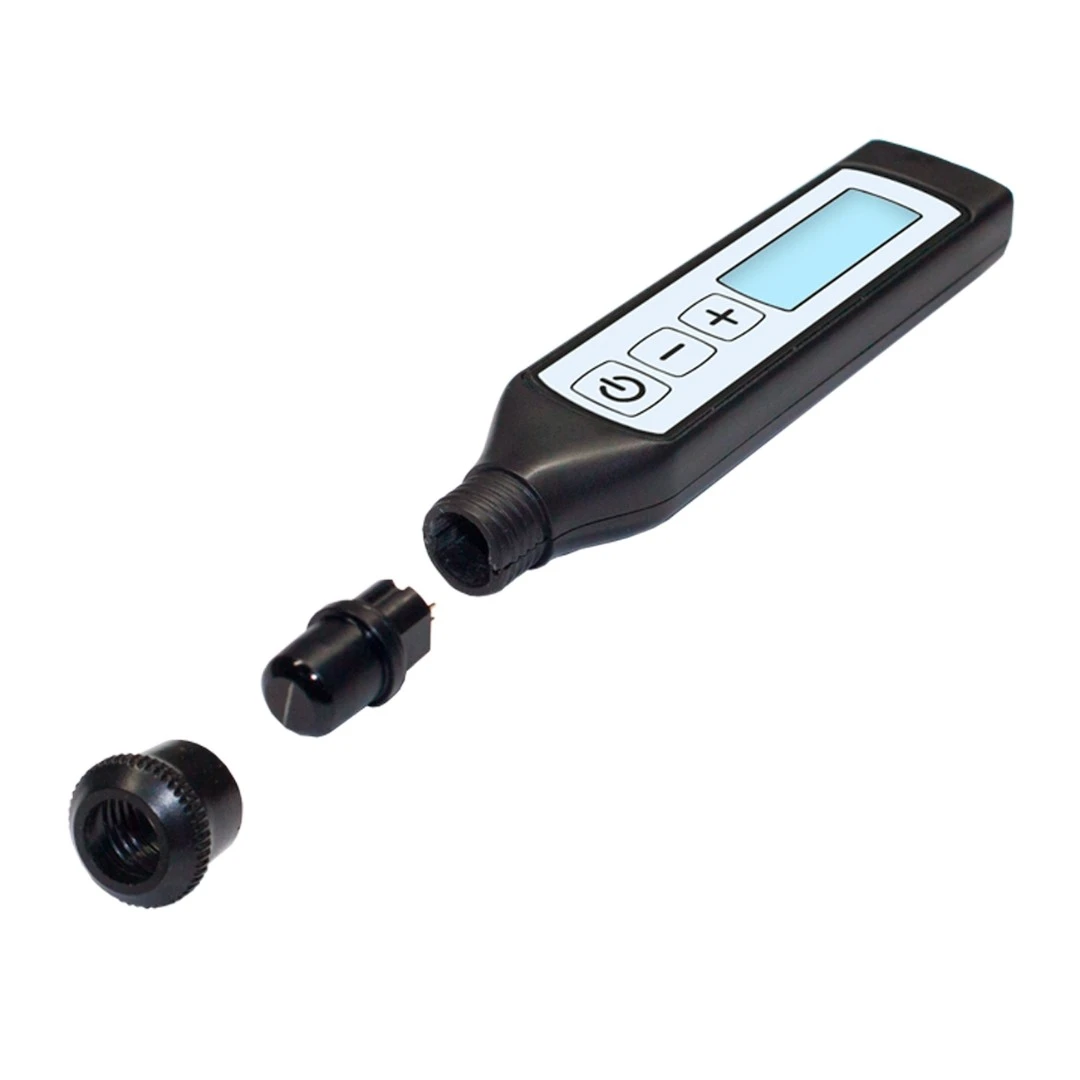

Type and frequency of the changeable transducer
Standard: dual-crystal, 7 MHz
Optional: single-crystal, 5 MHz
Diameter of the working surface of the dual-crystal and single-crystal transducers
6 mm / 0.24 inch
8 mm / 0.31 inch
Discreteness of measurements representation
0.1, 0.01 mm
Basic measurement accuracy for thickness X, not more:
± (0.005Х + 0.1) mm
Measurement units
mm, inches
Power
built-in LiPol rechargeable battery
Period of continuous operation of the instrument at positive temperatures
up to 16 hours
Operating temperature range
from -30 to +50 ˚С
Overall dimensions
130 х 30 х 20 mm
Weight
50 g

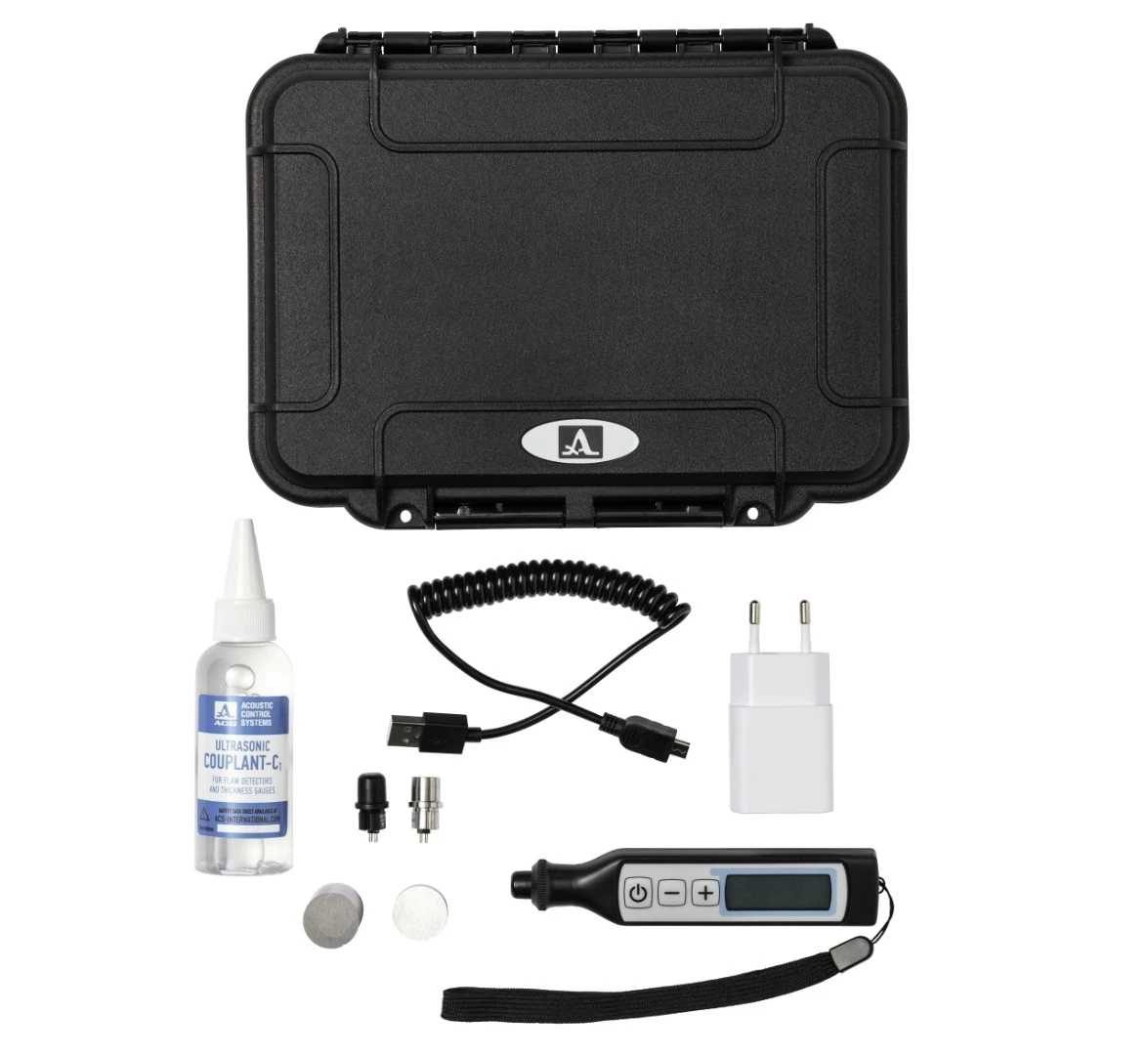

- Instrumen dengan built-in rechargeable battery

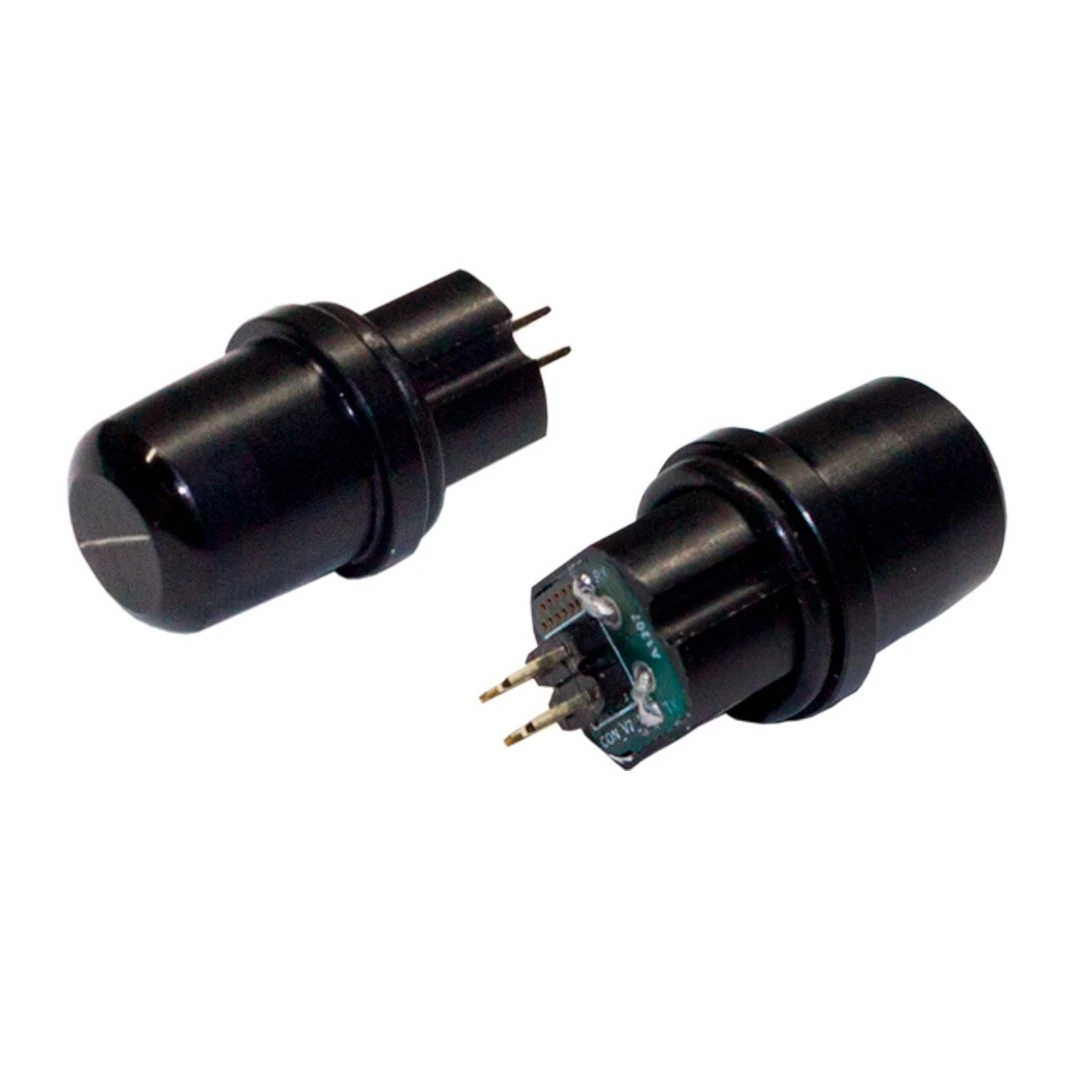

- Dual-crystal transducer D1572 (10 MHz, diameter 6 mm)

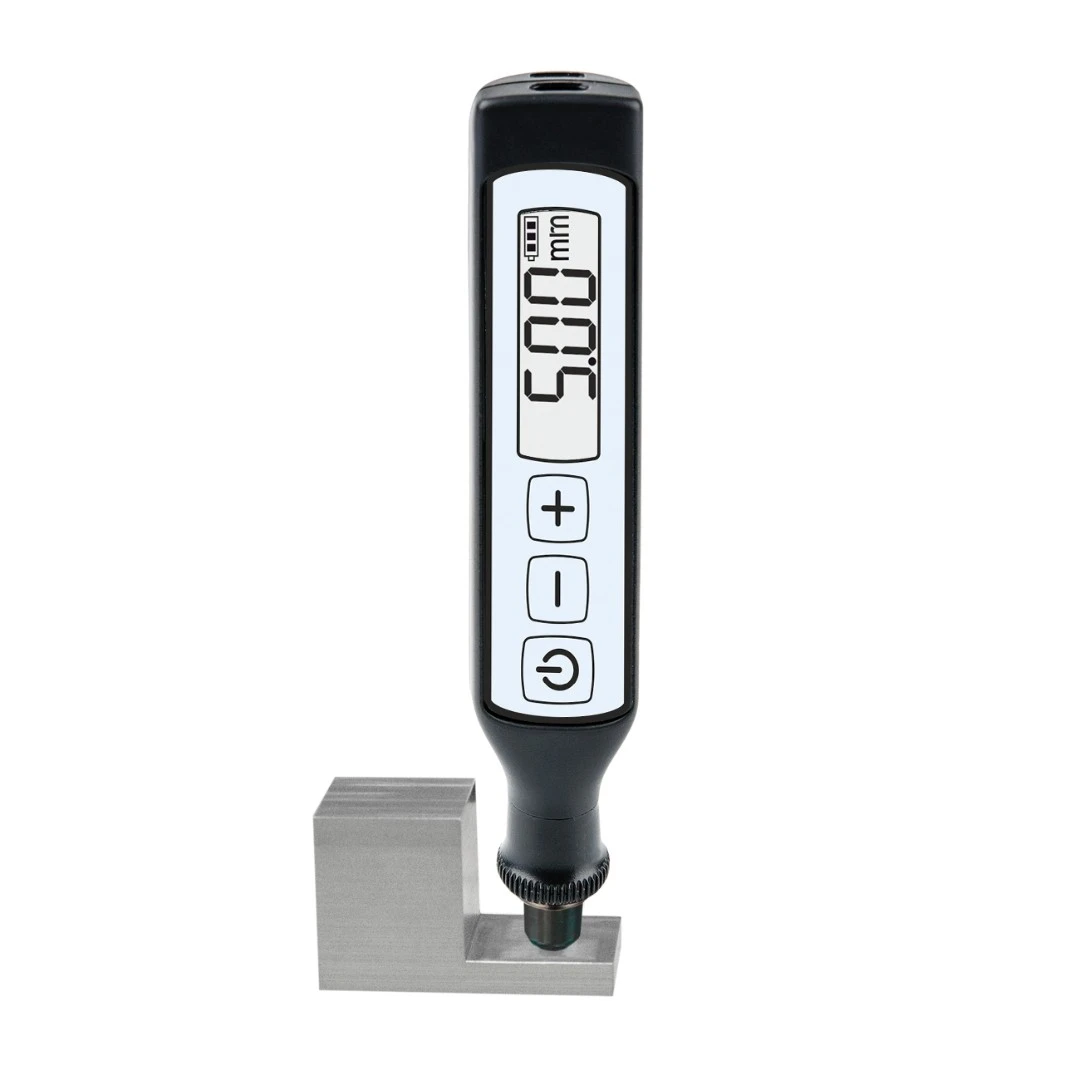

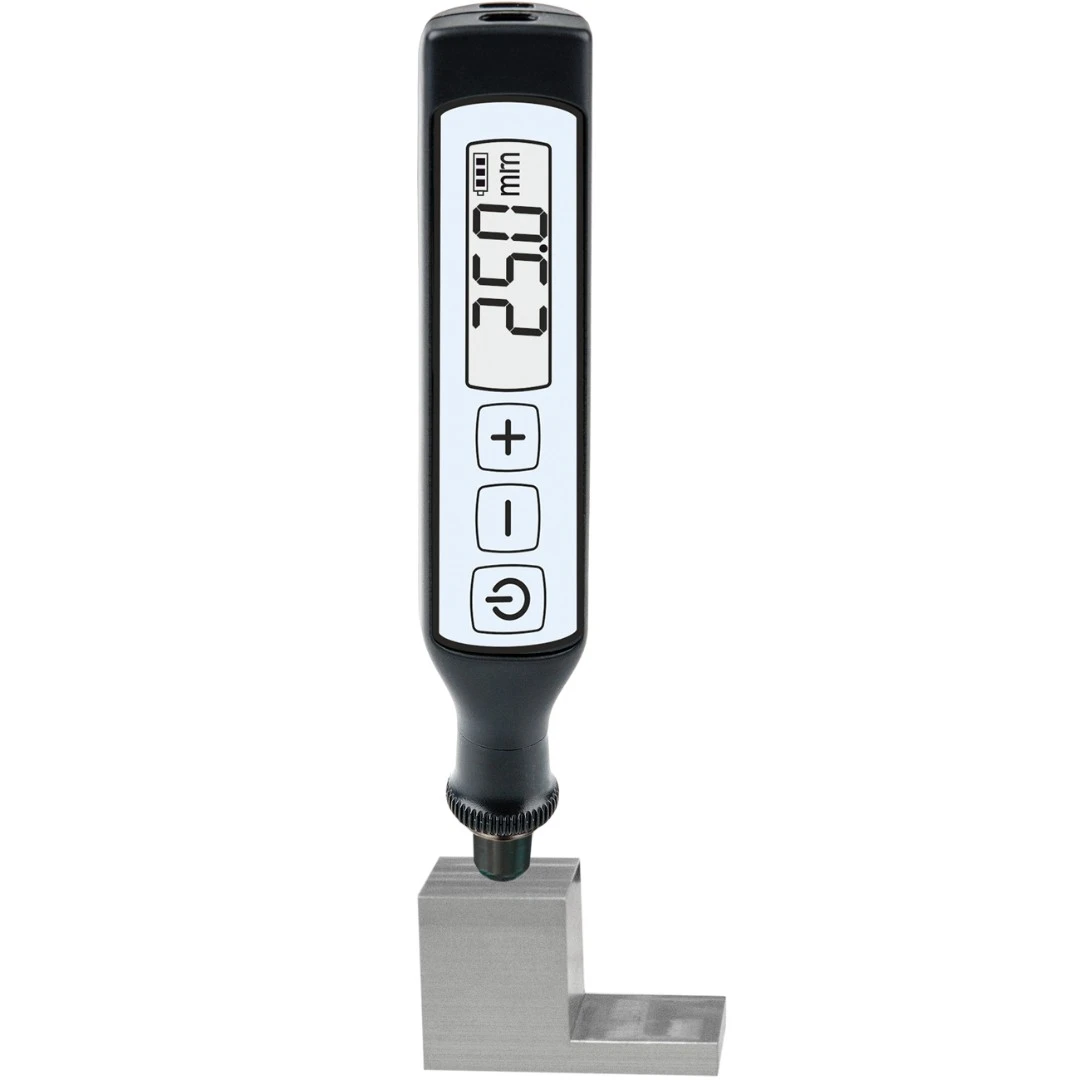

- sampel kalibrasi 5 mm and 25 mm
- Сouplant
- Power adapter & kabel USB
- Finger lanyard

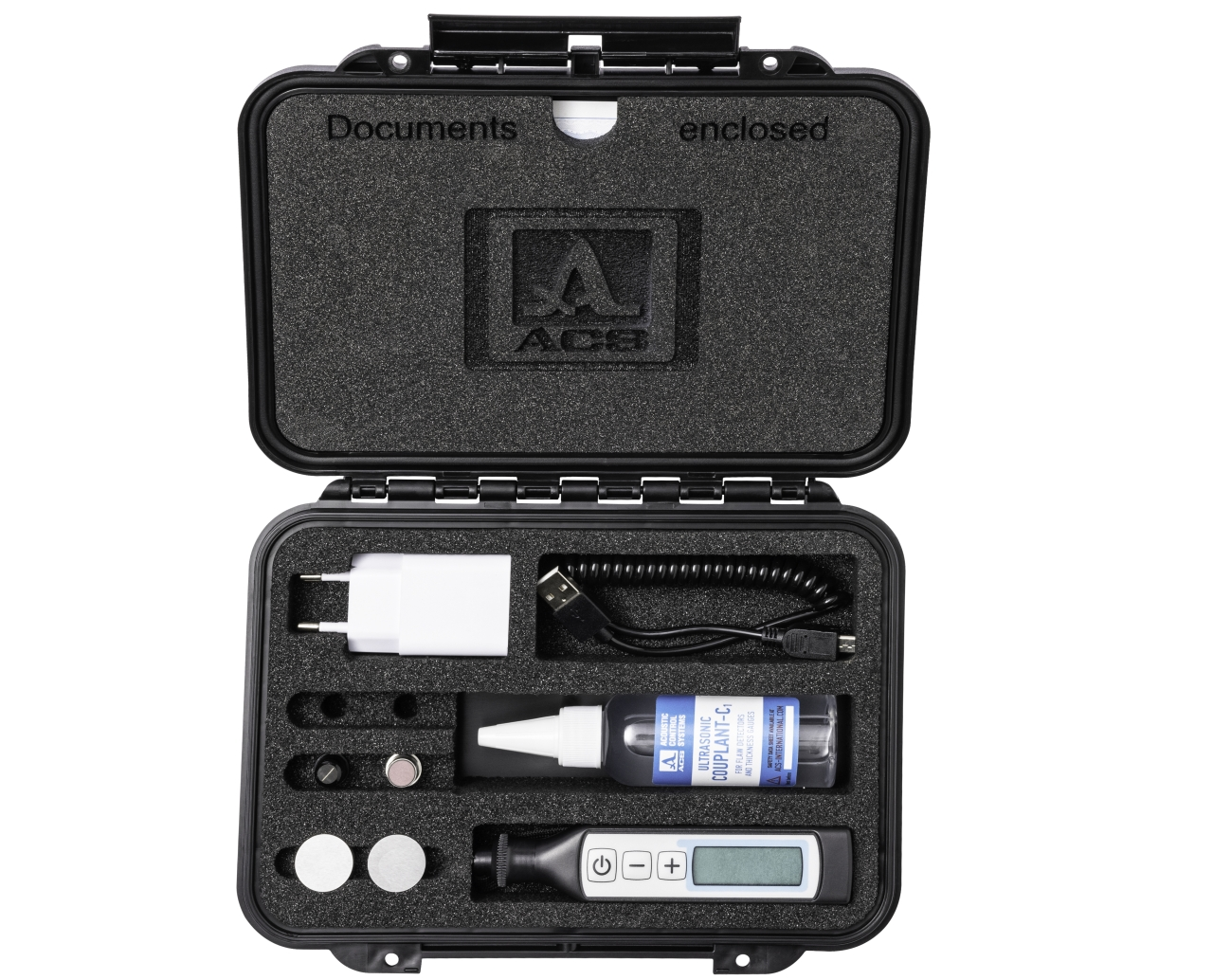

- Hard shell carry case
- Aplikasi gratis yang dapat diunduh untuk iOS & Android
- Opsional: Single-crystal transducer S1573 (10 MHz, diameter 8mm)
