Product description

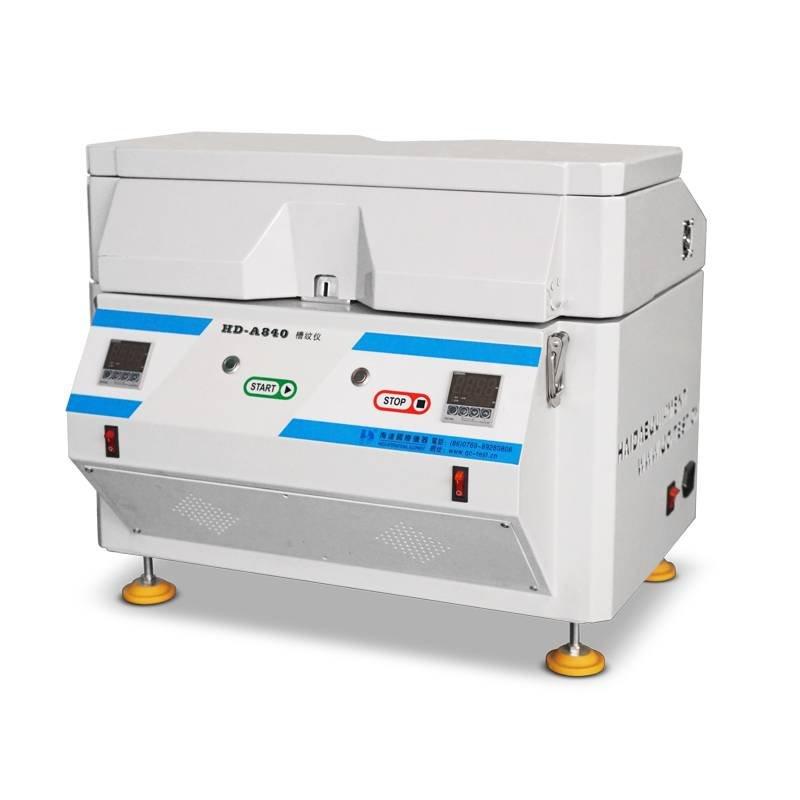

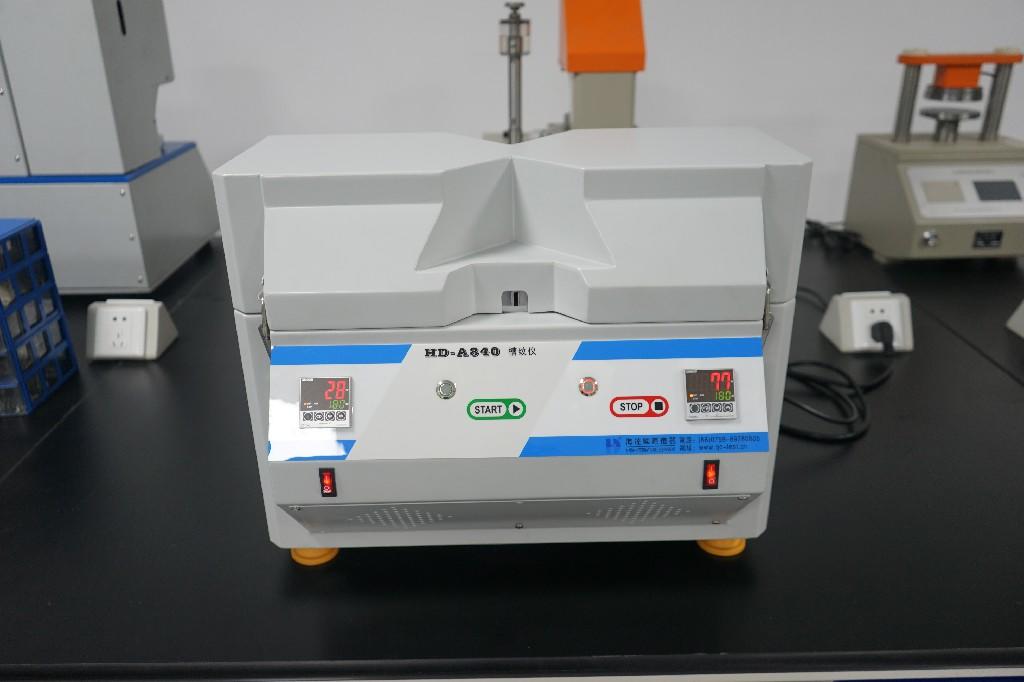

Digital Vertical Fluter is used to make sample for CMT for testing flat crush strength and vertical crush strength of corrugating medium.
Designed standard
ISO 7263,QB/T 1061,TAPPI T809
Product parameter
| Speed | 4.5r/min |
| Temperature Resolution | 1°C |
| Temperature Range | Room temperature-200°C |
| Work Pressure | (49～108)N |
| Standard Work Temperature | 175°C |
| Spring Tension | 100N |
| Dimension | 560mm*500mm*450mm |
| Power | Single phase, AC 220V±22V,50Hz |
Test Specimen
In standard atmospheric conditions processing to an equilibrium state and then incised take samples in the same atmospheric conditions.Sample width 12.7 mm and 0.1 mm 152 m m m and 0.5 m long, vertical long side for the sample. The number of sample should guarantee can take 10 data effectively.
