Alat Perekam HOBO Data Logger MicroRX Water Level Station RX2100-WL

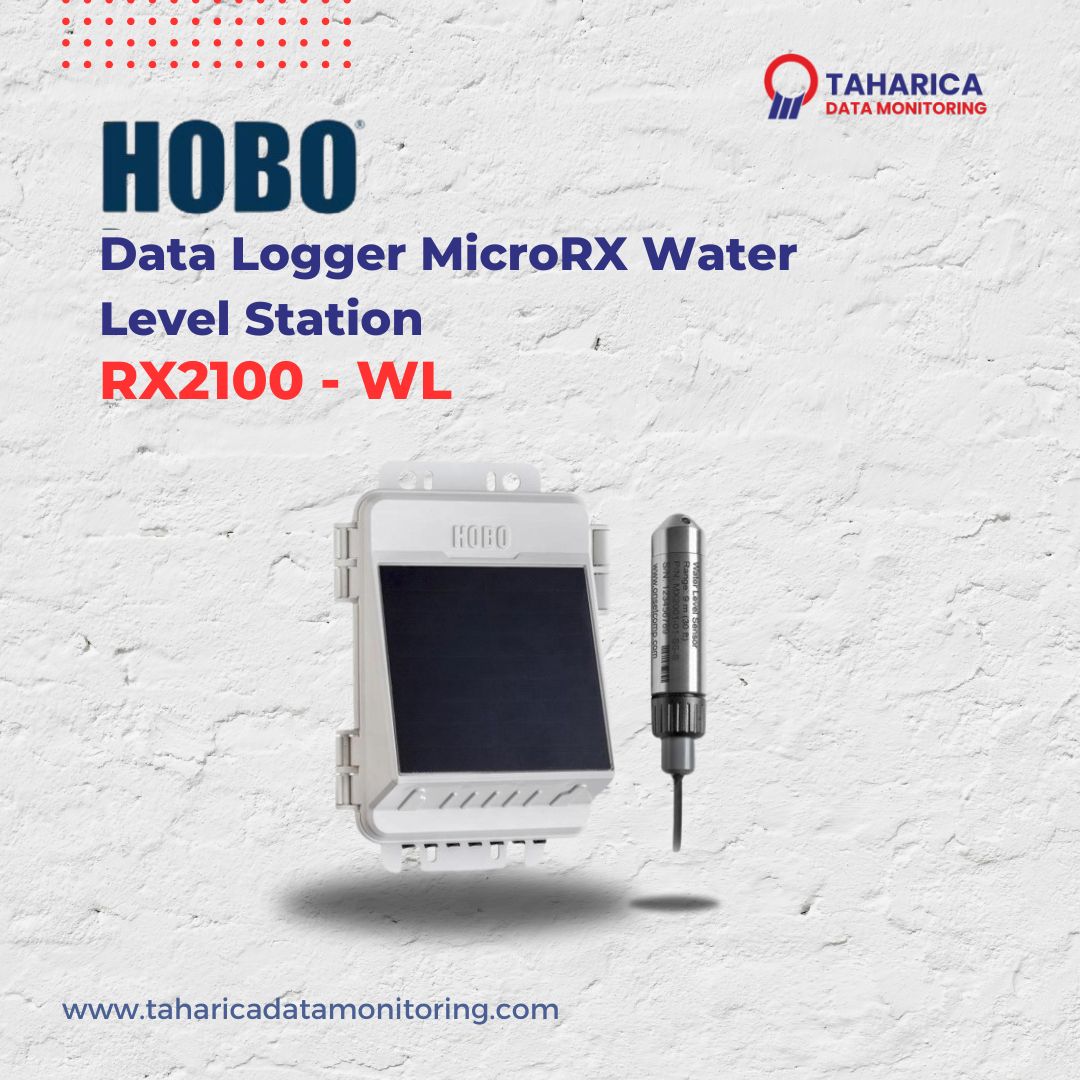

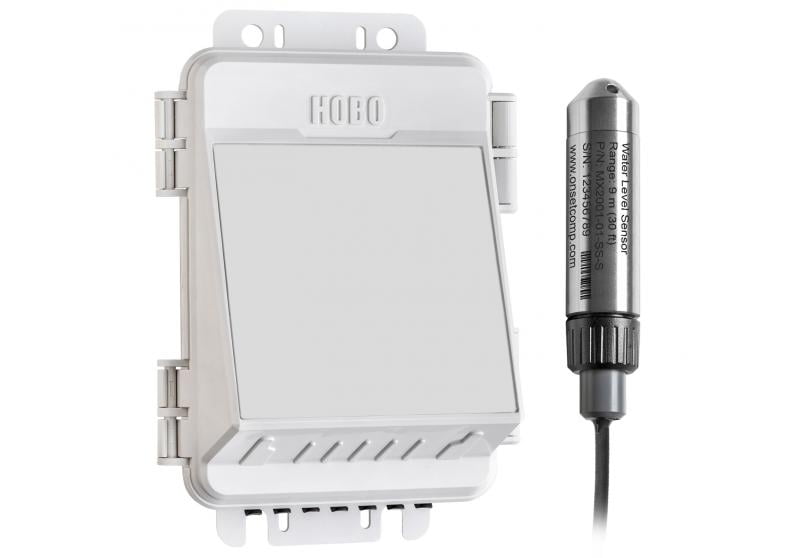

HOBO MicroRX Water Level Station (Part # RX2100-WL)

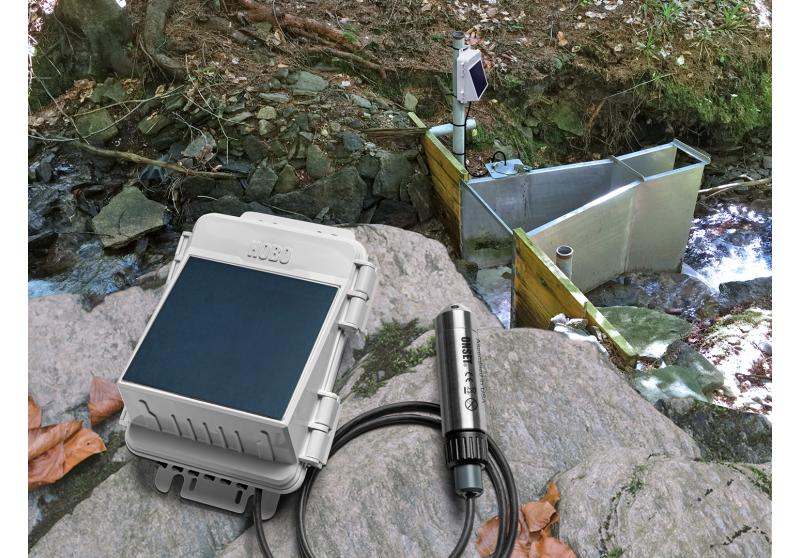

HOBO MicroRX Water Level Station pemenang penghargaan adalah solusi pemantauan ketinggian air seluler yang diaktifkan web untuk aplikasi air hujan, air banjir, irigasi, hidrologi, dan lingkungan. Rumus aliran air yang telah diprogram sebelumnya untuk bendungan tertentu, flume, dan tabel debit panggung menghasilkan konfigurasi yang mudah dan intuitif.

Aliran air baru dan akumulasi perhitungan curah hujan, yang dilakukan langsung di stasiun pada saat pengukuran, memicu pemberitahuan segera tentang kondisi ketinggian air yang kritis.

Stasiun yang ringkas dan tahan lama, bersama dengan sensor ketinggian air yang tidak berventilasi, memungkinkan penerapan kondisi yang sulit dan pemantauan yang andal. Panel surya terintegrasi opsional atau daya baterai, dengan berbagai sensor pintar plug-and-play, mendukung pemantauan lingkungan yang fleksibel.

Keunggulan :
-Alarm sisi stasiun untuk aliran air dan akumulasi curah hujan yang dipicu pada saat pengukuran
-Sensor ketinggian air keramik tanpa ventilasi dengan empat pilihan rentang
-Kabel sensor ketinggian air yang diperkuat Kevlar yang dapat dipertukarkan
-Sensor tekanan barometrik terintegrasi
-Penutup IP66/NEMA 4X yang ringkas

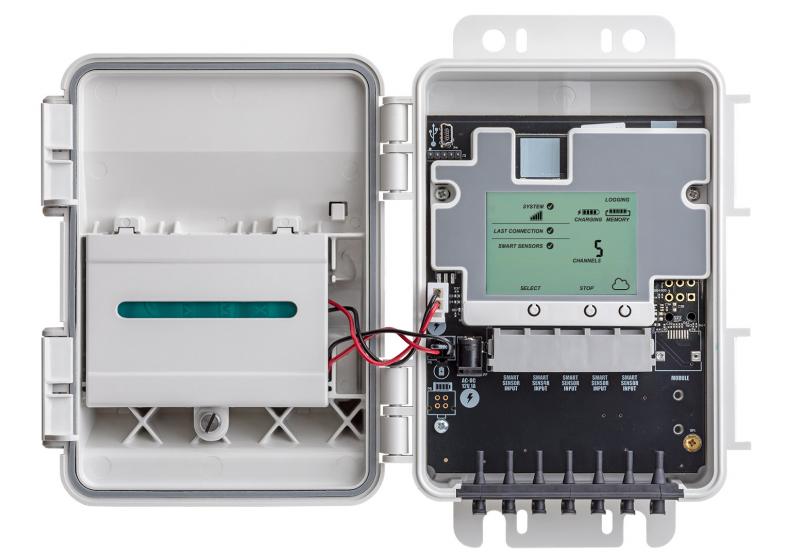

-Built-in LCD mengkonfirmasi pengaturan dan pengoperasian yang benar
Dua opsi daya:

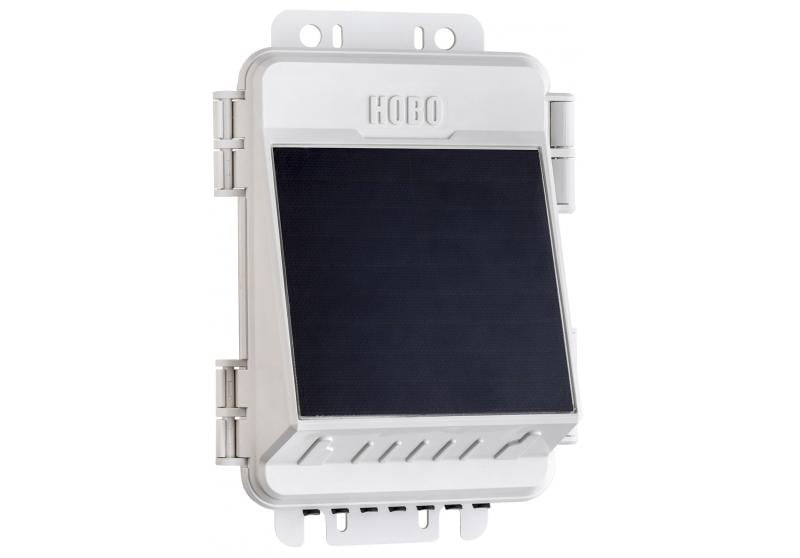

-Panel surya 1,7 W terintegrasi dengan baterai isi ulang
-5 W dan 15 W panel surya eksternal dapat ditambahkan (RX2104 saja)
-Baterai lithium AA yang dapat diganti pengguna
-Input untuk lima sensor plug-and-play
-Tingkat koneksi hingga 10 menit melalui paket data seluler 4G

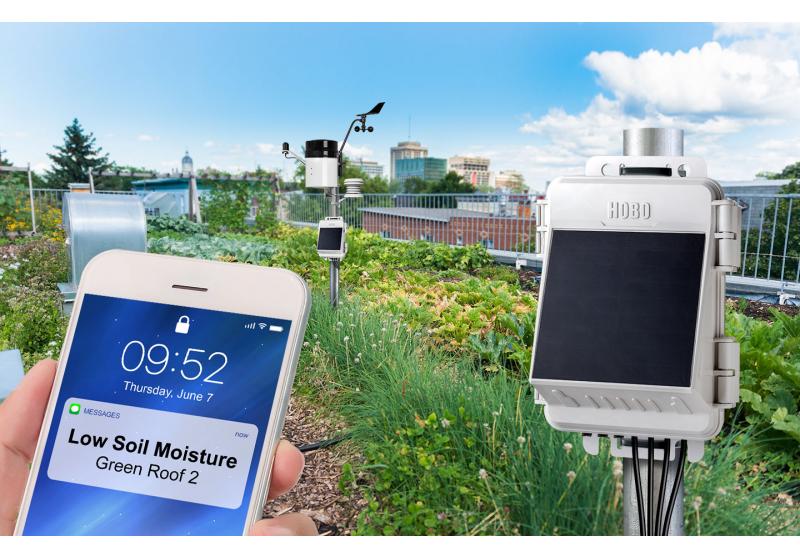

-Pemantauan berbasis cloud dan akses data melalui HOBOlink
-Tersedia dengan ujung sensor stainless steel atau titanium
-3-point NIST-terlacak sertifikat kalibrasi disertakan untuk sensor tekanan air

Operating Range	RX2103: -40° to 60°C (-40° to 140°F) RX2104: -20° to 60°C (-4° to 140°F)
Smart Sensor Connectors	5
Smart Sensor Network Cable Length	100 m (328 ft) maximum
Smart Sensor Data Channels	Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)
Logging Rate	1 minute to 18 hours
Time Accuracy	±8 seconds per month in 0° to 40°C (32°F to 104°F) range; ±30 seconds per month in -40° to 60°C (-40° to 140°F) range
Battery Type/Power Source	RX2103: 6 AA 1.5 V lithium batteries or AC power adapter (P-AC-1) RX2104: Integrated 1.7 watt solar panel and NiMH rechargeable battery pack; optional AC power adapter (P-AC-1) or external solar panel (SOLAR-xW) can be used in place of integrated solar panel
Battery Life	RX2103 Battery Life: Battery life with daily connections: RX2103: 1 year with 2 minute logging Battery life with hourly connections and 1 minute logging: RX2103: 2 months Note: Deployments in areas with weak cellular strength could reduce battery life. RX2104 Battery Life: Typical 3–5 years when operated in the temperature range -20° to 40°C (-4° to 104°F); operation outside this range will reduce the battery service life. Maximum connection rates with built-in solar panel, in full sun: 10 minute connections year round for latitudes less than ±40° 10 minute connections through three seasons in other regions, reduced to 30 minute connections in winter Maximum connection rates with external 5W or 15W solar panels: 10 minute connections year round, in full sun Connection rate with external solar panels may be less if deployed in partial sun Battery life without solar recharging, with hourly connections and 1 minute logging: RX2104: 2 months
Memory	16 MB, 1 million measurements, continuous logging
Alarm Notification Latency	Logging interval plus 2–4 minutes, typical

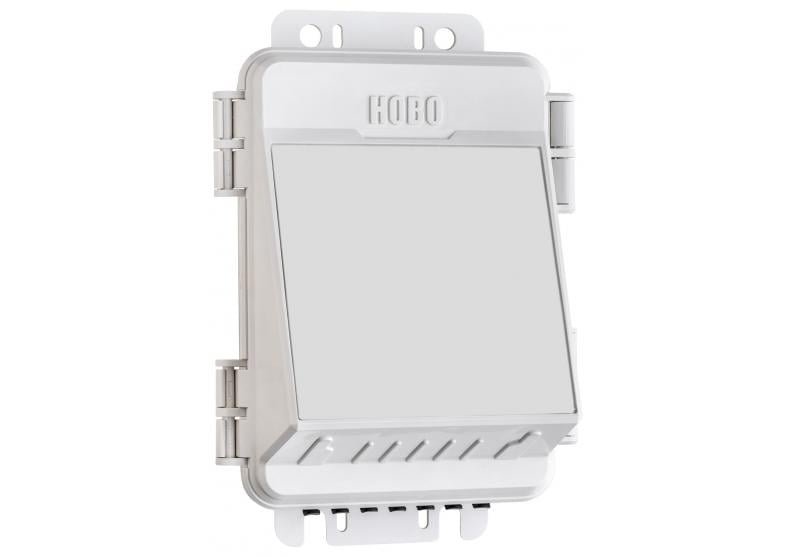

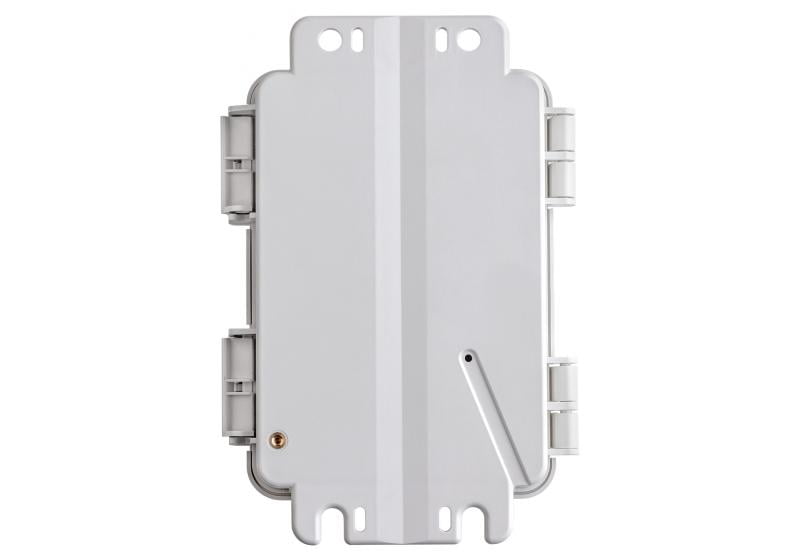

Enclosure Access	Hinged door secured by two latches with eyelets for use with user-supplied padlocks
LCD	LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range

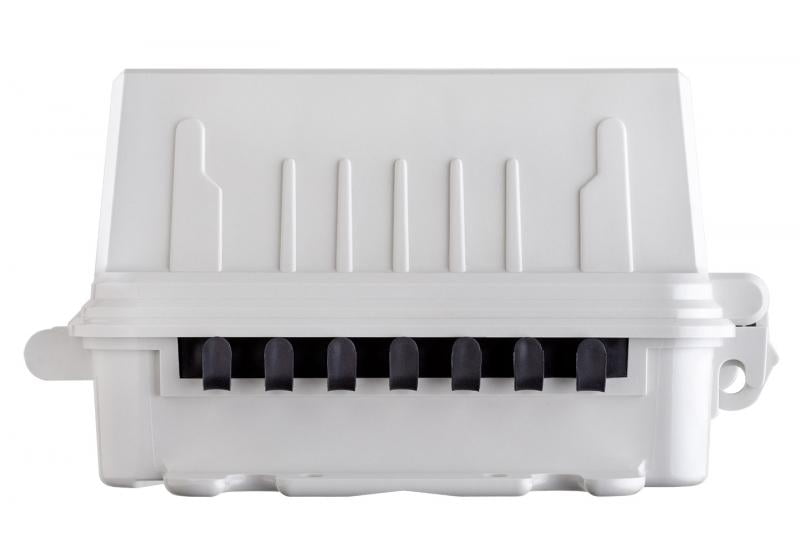

Materials	Outer enclosure: Polycarbonate/PBT blend with brass inserts; Interior: Polycarbonate/PBT; Gasket: Silicone foam; Cable channel: Santoprene™ TPE; U-Bolts (not included): Steel with zinc dichromate finish
Dimensions	19.95 x 13.68 x 7.49 cm (7.85 x 5.39 x 2.95 in.)
Weight	678 g (23.9 oz)
Mounting	Optional U-bolts are compatible with masts up to 4.14 cm (1.63 in.) mast diameter; can also be mounted with zip ties or mounted to a flat surface with screws
Environmental Rating	Weatherproof enclosure, NEMA 4X and IP66 (requires proper installation of cable channel system)
Wireless Radio	GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz
Antenna	4G LTE
	The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
	FCC ID QIPPLS62-W, IC ID:7830A-PLS62W
