Karakteristik Produk

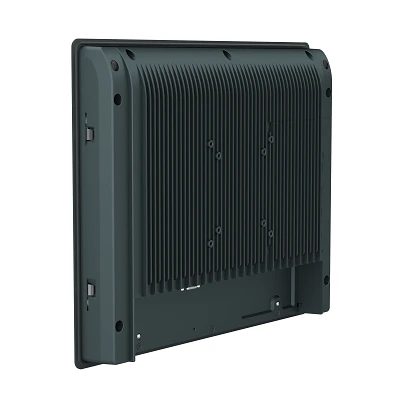

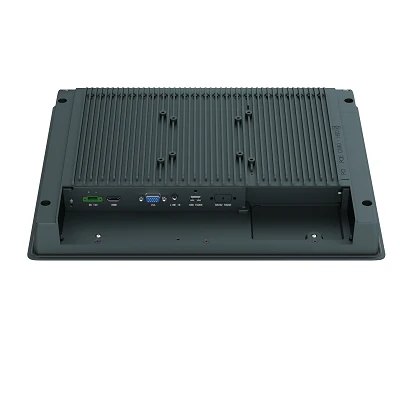

- Aluminum die-casting chassis, natural smooth design
- 15 inch TFT LCD, LED backlight
- 5 wire resistive touch screen
- Optional projected capacitive screen
- Support multi touch

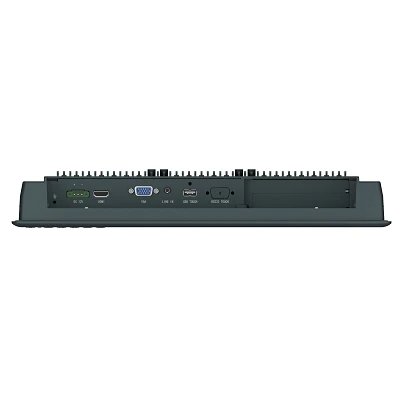

- HDMI and VGA video input
- Audio input, 2*3W speakers
- Flat bezel, IP65 front panel
- DC 9-36V wide power input
Spesifikasi
| SPEC | |||
|---|---|---|---|
| Video | HDMI | Resolution | 1024*768 |
| Horizontal Frequency | 30~90KHz | ||
| Vertical Frequency | 56~75Hz | ||
| VGA | General | ||
| Audio | Frequency Response | ±3dB | |
| R/L Channel separation | 70dB | ||
| Degree of Distortion(THD) | 1.5~2% | ||
| Signal-Noise Ratio(S/N) | 80dB | ||
| Power | Input Voltage | DC 9~36V | |
| Power Consumption | 12V@0.94(No Consumption Output) | ||
| Power Requirement | >12V@1.5A | ||
| Standby Current | Low power consumption, standby consumption<1W | ||
| Audio Amplifier | 2*3W(4Ω）(Optional) | ||
| OSD Language | Chinese, English, German, French, Russian, Italian, Spanish, Arabic, and so on | ||
| OSD Function Key | AUTO/Power/Menu/Source/UP(LEFT)/DOWN(RIGHT) | ||
| LED Light | Greenfor display, red for standby | ||
Mechanical & | Construction | Aluminum die-casting front bezel and chassis | |
| Operating Temperature | 0~50℃ -HDD/SSD with airflow | ||
Storage Temperature | -20~60℃ | ||
| Storage Humidty | 10~95%@40℃, non-condensing | ||
| Shock | 10g peak acceleration(duration 11ms), in operating with HDD | ||
| Vibration | 1g 5~500Hz, in operating with HDD | ||
| Mounting | Panel mounting, VESA 75*75 | ||
Dimension | (W*H*D):380*315*56mm; mounting cut out(W*H): 367.3*303.3mm | ||
Net Weight | 3.8kg | ||
| EMC | CE,FCC Class A | ||
| LCD | Type | 15′ TFT LED |
Resolution | 1024*768 | |
| Color | 16.2M colors | |
| Pixel Pitch(mm) | 0.297*0.297 | |
| Brightness(cd/m2) | 350 | |
Viewing Angle | 80 Degree(left), 80 Degree(right), 80 Degree(up), 80 Degree(down) | |
Operating Temperature | -20~70℃ | |
| Backlight lifetime | 50, 000 Hours |
| Touch | Type | 5-wire Resistive Touch | Projected capacitive touch |
Resolution | gapless | gapless | |
| Light Transmittance | 83% | 90% | |
| Interface | USB/RS232 | USB/RS232 | |
| Consumption | +5V @ 200mA | +5V @ 300mA | |
OS | Windows/Linux | Windows/Linux | |
Click Lifetime | 35 million times | 3000 million times |
| Ordering information | |
|---|---|
| NO. | Illustration |
| ALAD-151T/ S001-G | Industrial touch display, 15′ TFT LCD, 5 wire resistive screen,1*HDMI,1*VGA,1*Audio in, DC 9~36V |
| ALAD-151T/ T001-G | Industrial touch display, 15′ TFT LCD, projected capacitive screen,1*HDMI,1*VGA,1*Audio in, DC 9~36V |
| PA-60DC12 | AC/DC power adapter, DC12V/5A 60W |
