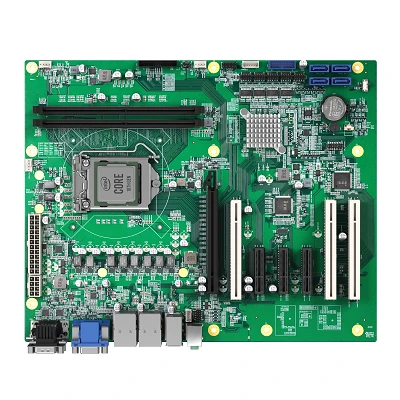

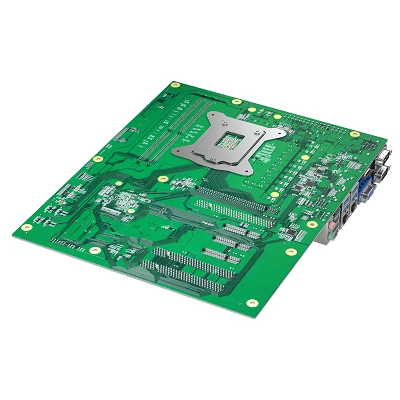

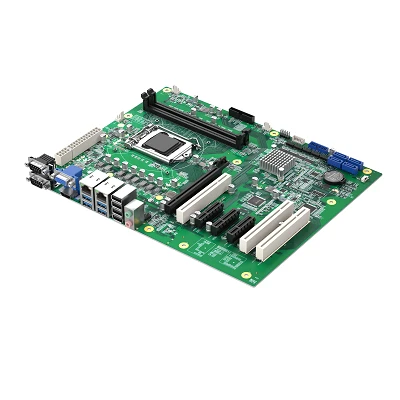

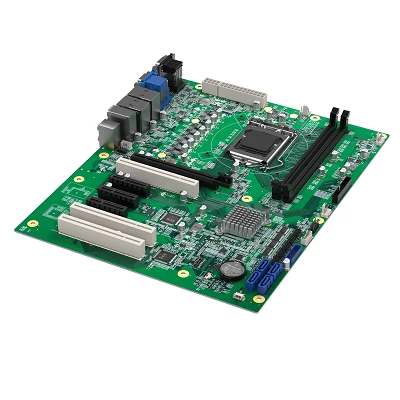

ATX-I971 adalah motherboard komputer industri yang ditenagai oleh prosesor Intel® Generasi ke-10 Core i9/i7/i5/i3/Pentium/Celeron dengan chipset Intel H420E. Motherboard ini dirancang sesuai dengan ukuran lubang standar ATX, sepenuhnya dapat disesuaikan dengan semua rak dan chassis yang terpasang di dinding di pasar, dan sangat cocok untuk visi mesin, mesin CNC, akuisisi data, dan bidang lainnya.
- Intel 10th Gen. Cometlake-S Core i9/i7/i5/i3/Pentium /Celeron CPU ，Intel H420E Chipset
- Dual channel 2*DDR4 2933MHz DIMM, up to 32GB
- Intel UHD Graphic, 1*VGA+1*HDMI dual independent display
- 1*I219LM Gig. Ethernet+1*I225V 2.5Gig. Ethernet
- 6*USB3.0，4*USB2.0，6*COM，8bit DIO
- 1*PCIeX16，3*PCI，3*PCIeX4(X1 signal）
- 4*SATA3.0 6.0Gbps，audio(Opt.)，TPM2.0(Opt.)
- 24pin ATX +8pin 12V ATX power
CPU | Intel 10th Gen. Cometlake-S Core i9/i7/i5/i3/Pentium/Celeron CPU，LGA 1200 Socket，up tp 125W |
Memory | 288-pin Non-ECC UDIMM , dual channel DDR4 2400/2666/2933MHz, up to 32GB |
Expansion | 1*PCIe×16 Gen3.0 slot，3*PCIe×4 Gen3.0 slot (PCIex1 signal，the first slot(×2 signal) can share the other 2 slots signal through BIOS settings, so it can be changed to ×4 signal, at this time the other 2 slots are unavailable)，3*32-bit PCI slot， |
Graphics | Intel UHD Graphics, Supports DirectX 12, OpenGL 4.5 and OpenCL 2.1 |
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 | |
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9 | |
HDMI max. res. 4096*2160@30Hz，VGA max. res. 1920*1200,60Hz | |
Audio | Realtek ALC662 controller, 1*Line out+1*Mic，Support 5.1 channel (Opt.) |
LAN | 1*Intel I225V，10M/100M/1000M/2.5G self-adapt，support WOL |
1*Intel®I219LM，10/100/1000Mbps，support WOL | |
Storage | 4*SATA3, 6.0Gbps HDD/SSD |

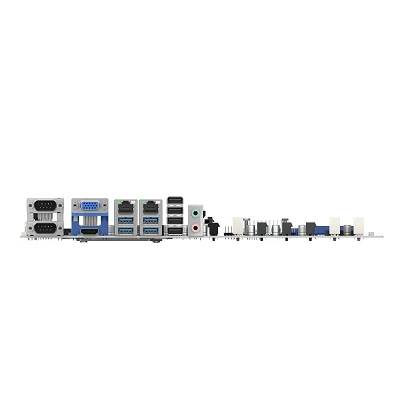

Rear I/O | 2*LAN(RJ45)，2*RS232/422/485 (DB9)，1*HDMI+1*VGA， |
4*USB3.2 Gen1 (5Gb/s)(Type A), 4*USB2.0(Type A)，support USB Power to switch between System mode(+5V) and +5VSB mode through jumper | |
1*Line out+1*Mic 3.5mm phone jack | |
Internal I/O | 8bit GPIO，1*LPT，2*USB3.2 Gen1(5Gb/s) pinheader，1*SM Bus，4*RS232 pinheader，4*SATA3，1*F_PANEL pinheader，PS/2 wafer |
Switch & LED | F_PANEL（USB Power jumper, AT/ATX jumper, Clear CMOS jumper，Power LED，SSD/HDD LED） |
Power Supply | 24-pin ATX/8-pin ATX 12V，max. output power：280W |
Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second |
Security | Support Infineon TPM2.0(Opt.) |
OS Support | Windows 10, Windows 11，Linux Ubuntu |
Dimension | (W*H)：305*244mm |
Height | Top Side：37.58mm；PCB：1.6mm |
Operating Temperature | 0～60℃ |
Storage Temperature | -40°C~85°C |
Storage Humidity | 10~95%@40°C, Non-condensing |
EMC/Certification | CE/FCC Class B |
