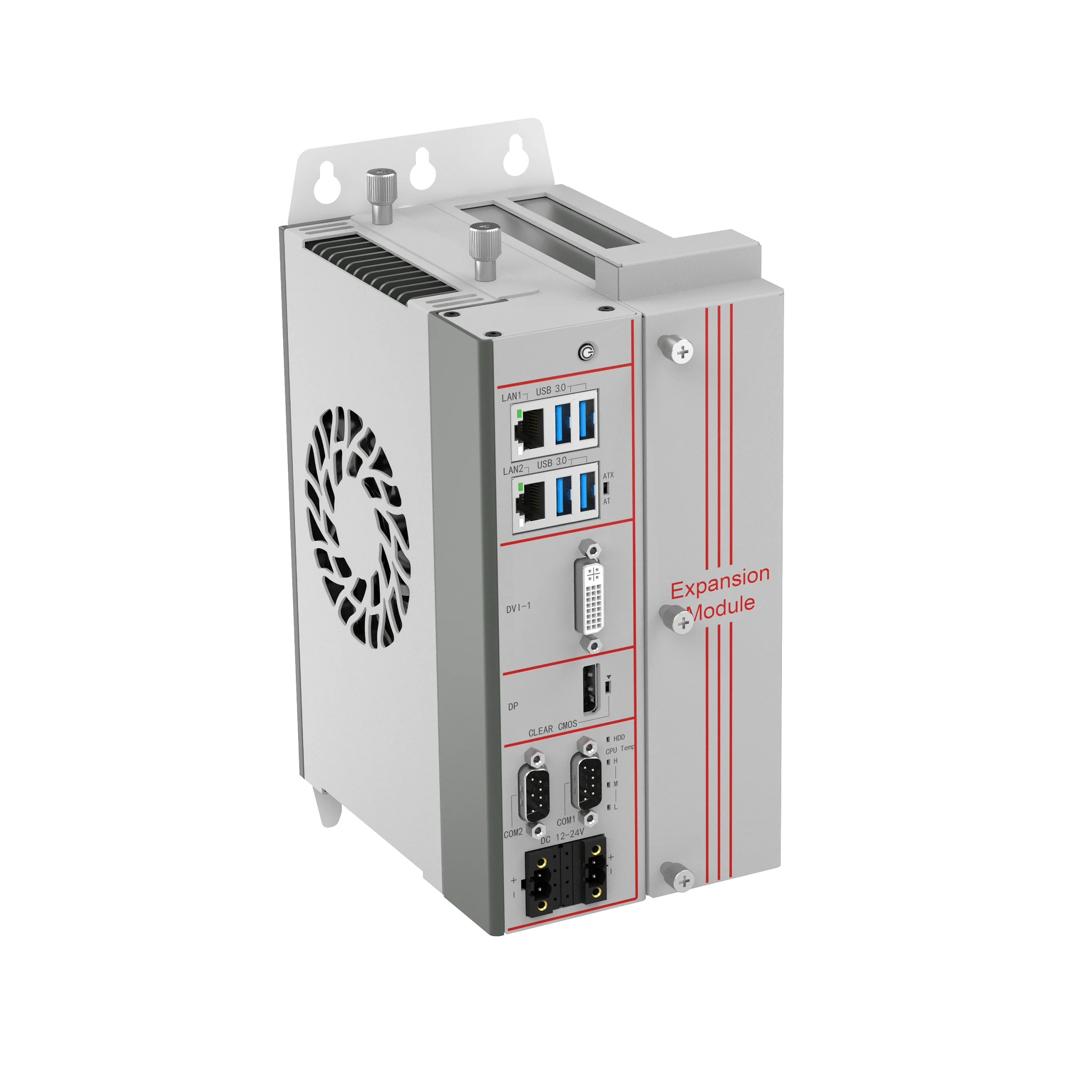

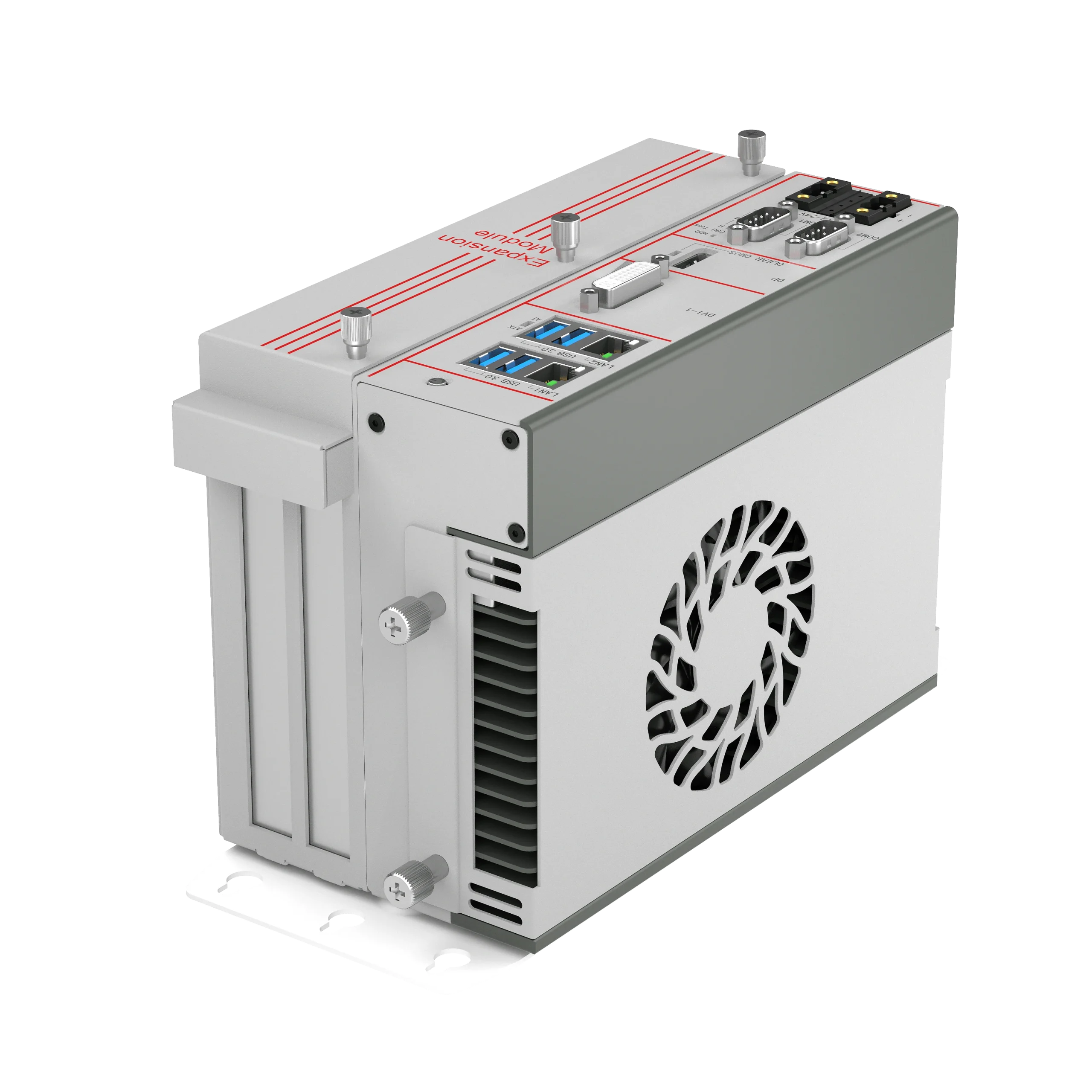

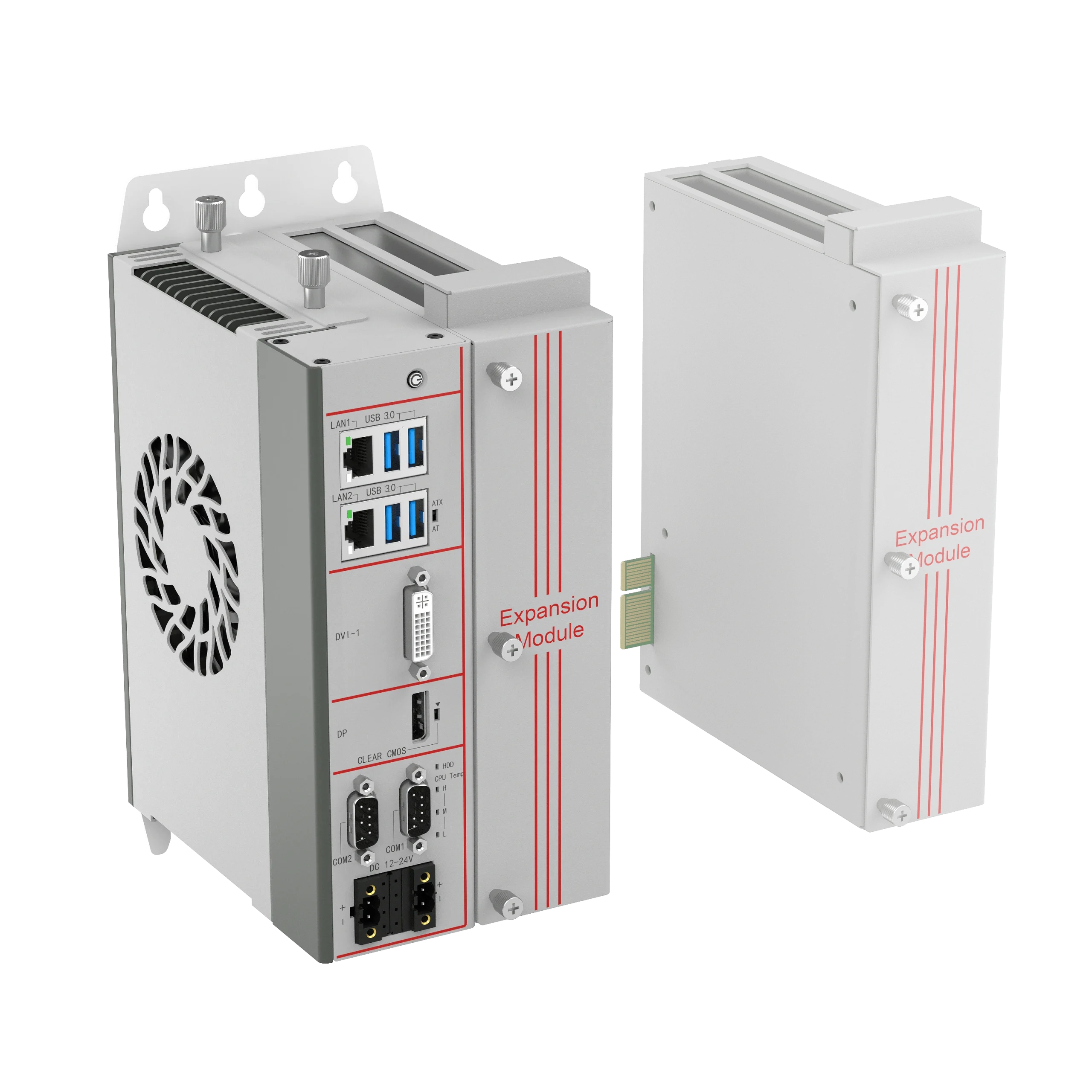

KGEC-6300 adalah komputer industri edge motion controller yang ditenagai oleh prosesor Intel® Skylake-S / Kabylake-S CPU, Chipset H110, 1DDR4 2133/2400MHz, hingga 16GB. Antarmuka IO yang kaya, DP+DVI-I, 2LAN, semuanya menggunakan Intel I210AT, opsional mendukung protokol EtherCAT dan Can Open, 4USB3.0, 2COM, 1slot PCIe X4(T001/2), 1slot PCI 32bit(T001/2), mendukung slot tunggal, slot ganda, berbagai pilihan ekspansi, 1Mini PCIe, mendukung 4G/Wifi/BT. 1mSATA digunakan untuk penyimpanan. Input daya wide DC 12~24V, mendukung pemasangan dinding, dan pemasangan Din-Rail. Mengadopsi desain pendinginan aktif dan pasif; kecepatan kipas dapat dikontrol dengan cerdas. BIOS dioptimalkan dan mendukung sistem real-time, Ubuntu Preempt-RT, opsional mendukung INTime. Modul perluasan dan induk dirancang dengan pembongkaran mudah, dan jumlah perluasan fleksibel. Modul perluasan yang berbeda dapat dipilih untuk skenario aplikasi yang berbeda, sangat cocok untuk Visi Mesin, kontrol CNC, kontrol gerak, dan sebagainya.
Intel® Kabylake-S/Skylake-S CPU，up to65W
System | CPU | Gen.6th Intel® Skylake-S/gen.7th Intel® Kabylake-S Pentium/Core I3/I5/I7 CPU, LGA 1151 socket |
| Chipset | Intel® H110 | |
| System Memory | 1*260-Pin SODIMM, DDR4 2400/2133MHz, up to16GB | |
| Expansion | 1*full size Mini PCIe (PCIe X1+USB) with SIM slot,support 4G/Wifi/BT/CAN module 1*PCIe X4 slot with PCIe X1 (T001/2) 1*32bit-PCI support motion control card, acceleration card and other functions of the expansion card (T001/2) | |
| Intel Graphics | Intel Gen. 9 HD Graphics,HEVC/H265 HW HD en/decoder DP max. res. 4096*2304@60Hz DVI-I(DVI-D+VGA) DVI-D max. res. 1920*1200@60Hz, VGA max. res. 2560*1600@60Hz | |
| LAN | 2*Intel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps； | |
| Storage | 1*mSATA full size(SATA & USB2.0) | |

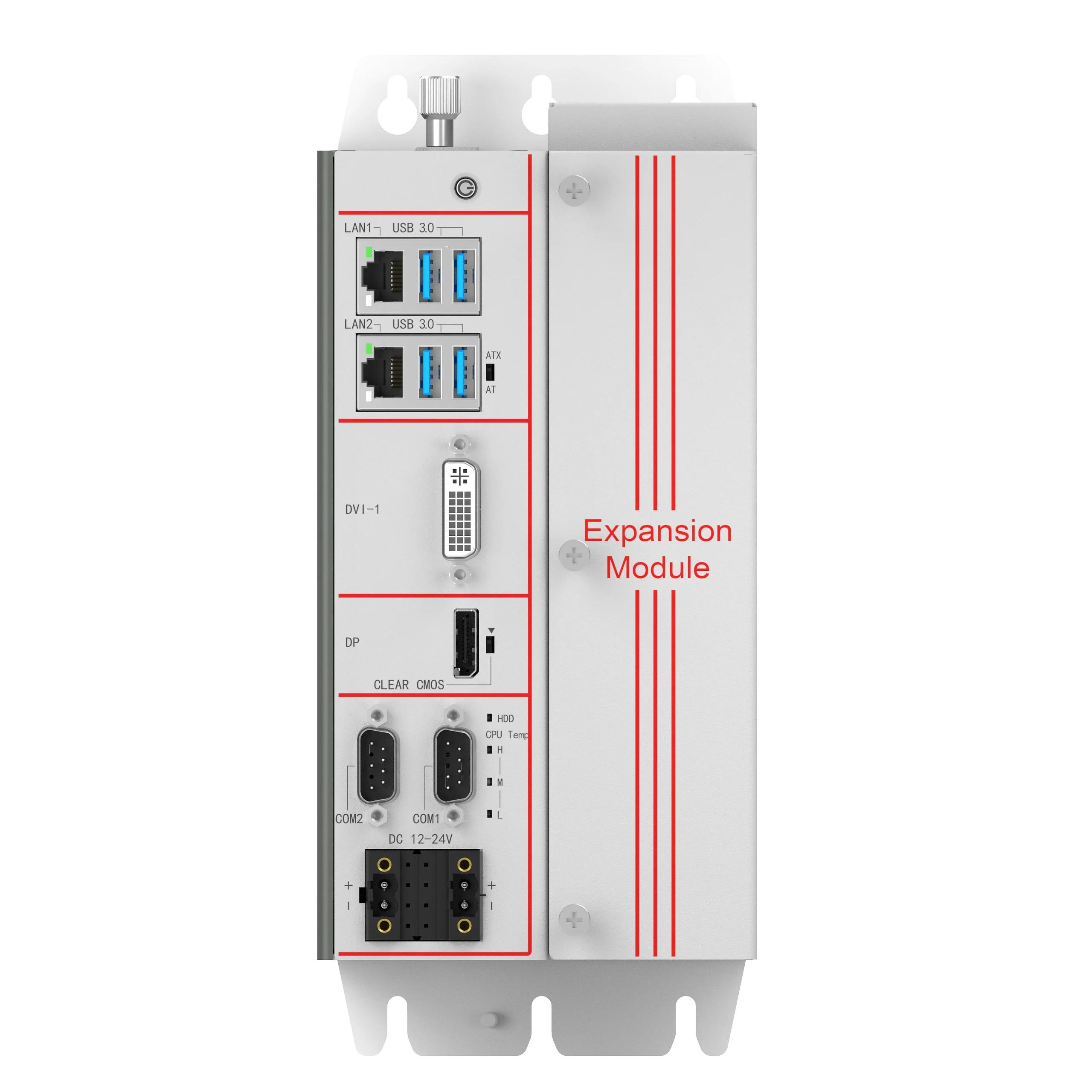

| I/O ports | 2*Gig-LAN(RJ45) 4*USB3.0(Type A) 2*RS232/422/485 with TVS Iso. (DB9) 1*DP+1*DVI-I | |
| LED | 1*Power LED, 1*HDD LED, 3*CPU temp. LED（Red is warning , Yellow is high, Green is normal) | |
| Control SW | 1*Power button, 1*AT/ATX Select SW, 1*Clear CMOS Select SW | |
| Power Supply | DC 12~24V Input, 2*2-pin ter. Connector,TDP:S001(19V/2.3A I7-7700K 4GB)，S002(19V/2.6A I7-7700K 4GB) | |
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | |
| OS Support | RTOS: INtime, EC-Win, RTX-2014/2016和Ubuntu Preempt-RT Windows 7, Windows 10, Linux Fedora Ubuntu (Note: Gen.7th Intel® Kabylake-S processors don’t support Windows 7) | |
Mechanical | Structure | Aluminum chassis, SGCC frame |
| Color | Silk grey | |
| Mounting | Wall-mounting，Din-Rail mounting | |

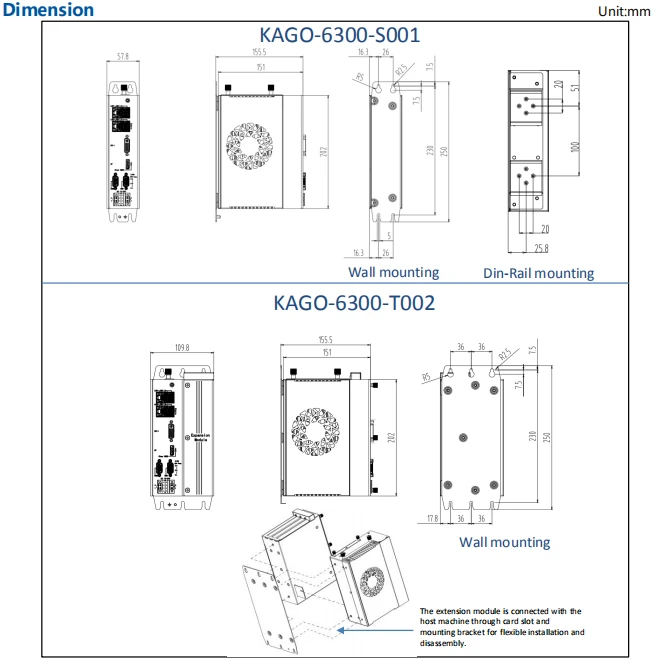

| Dimension | (W*H*D)：S001(202*151*57.8mm), T001(202*151*109.8mm) | |
| Net weight | S001: 2.52KG T002 :3.52KG | |
Environmental | Operating temperature | -20°C~60°C, wide operating temp. SSD |
| Storage Temperature | -40°C~85°C | |
| Storage Humidity | 10~90%@40°C, Non-condensing | |
| Vibration | 5grms/5~500Hz/random/in working(SSD); 1grms/5~500Hz/random/in working(HDD) | |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD） | |
| Certification/EMC | CE/FCC Class B |
