Intel® 12th Gen Alder Lake-S LGA1700 CPU, 2*LAN, 4*USB3.2, 1*VGA, 1*DP, 1*HDMI, 4*COM, 16bit DIO, 1*mSATA, 1*Mini PCIe, 2*SATA3.0, DC 9-36V.

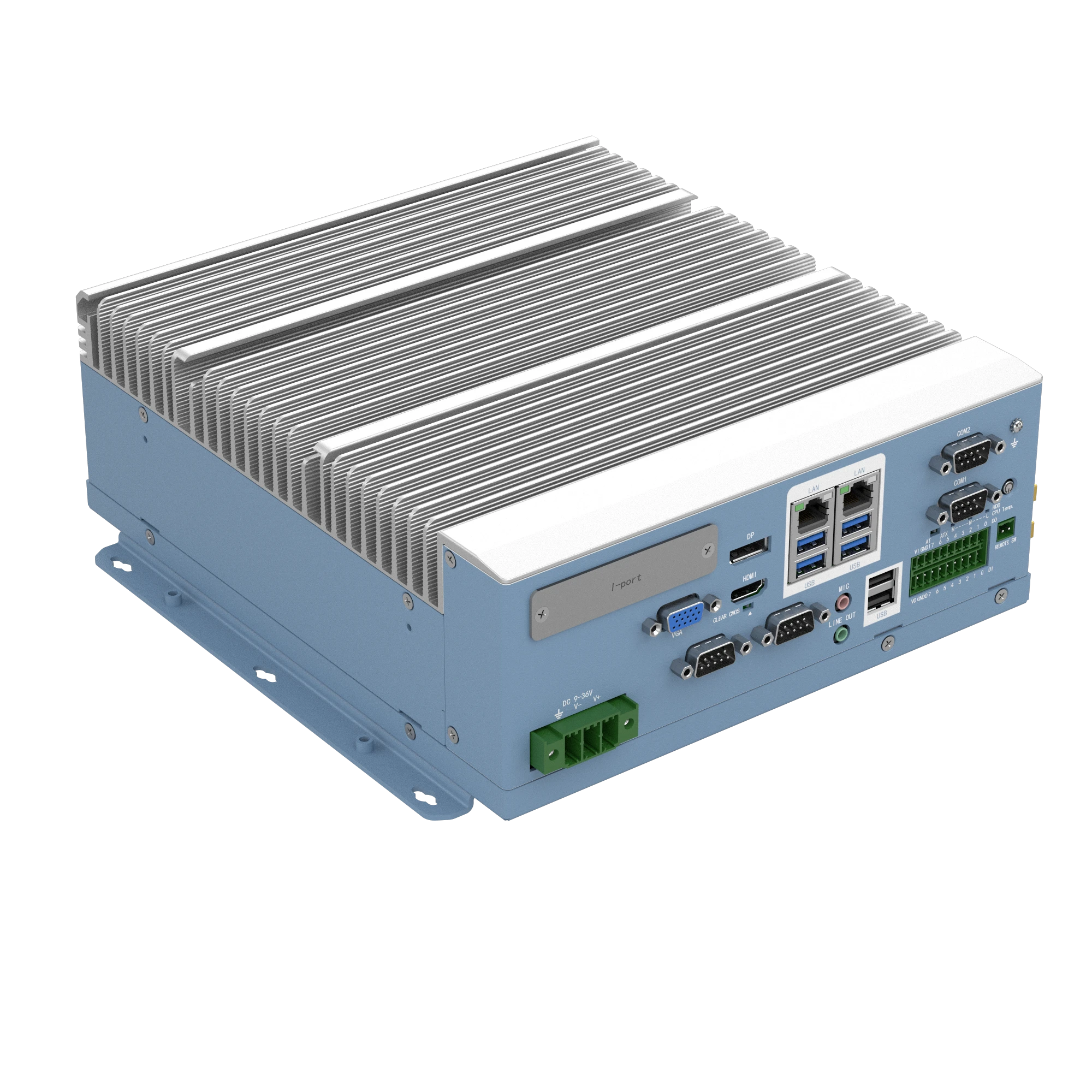

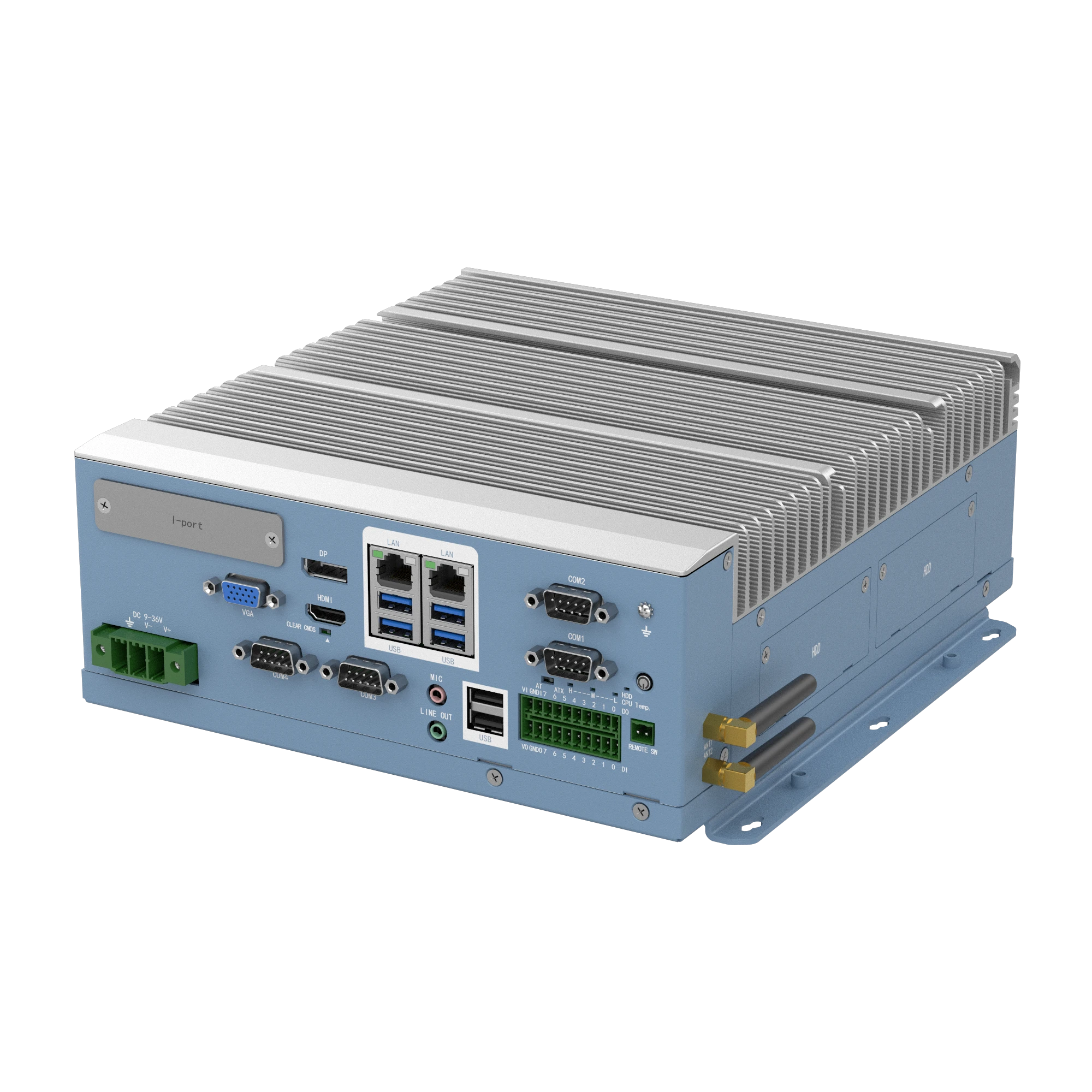

Komputer Industri KMDA-7601 merupakan komputer box fanless dan memiliki performa tinggi yang dilengkapi chipset H610. Ditenagai CPU Intel® 12th Gen Alder lake-S, KMDA-7601 memiliki ukuran yang ringkas dan beragam input output. Sangat cocok digunakan pada otomatisasi industri, jalan tol, pemantauan keamanan, deteksi lingkungan, serta bidang industri lainnya.
CPU+PCH | Intel® Alder lake-S 12th Gen Core™ i9/i7/i5/i3/Pentium/Celeron LGA1700 CPU，Intel® H610 PCH |
System memory | 2*262-Pin SODIMM, dual-channel DDR5 4800MHz, up to 64GB |
Expansion | 1*full size Mini-PCIe(PCIeX1+USB2.0 signal) with SIM card slot, support 4G LTE modem or PCIe signal function module |
Graphics | Intel® UHD Graphics, Supports DirectX 12, OpenGL 4.5, OpenCL 3.0, DP max res. 7680*4320@60Hz, HDMI max res. 4096*2160@60Hz, VGA max res. 1920*1200@60Hz, support 3 independent displays |
Audio | Realtek ALC897 controller, 1*Line out and 1*MIC high fidelity Audio, supports 5.1 channel |
LAN | 1*Intel I226V 2.5G Gigabit Ethernet, full PCIe X1 bandwidth, 10M/100M/1000M/2.5Gbps, support WOL 1*Intel I219LM Gigabit Ethernet, full PCIe X1 bandwidth, 10M/100M/1000Mbps, support WOL |

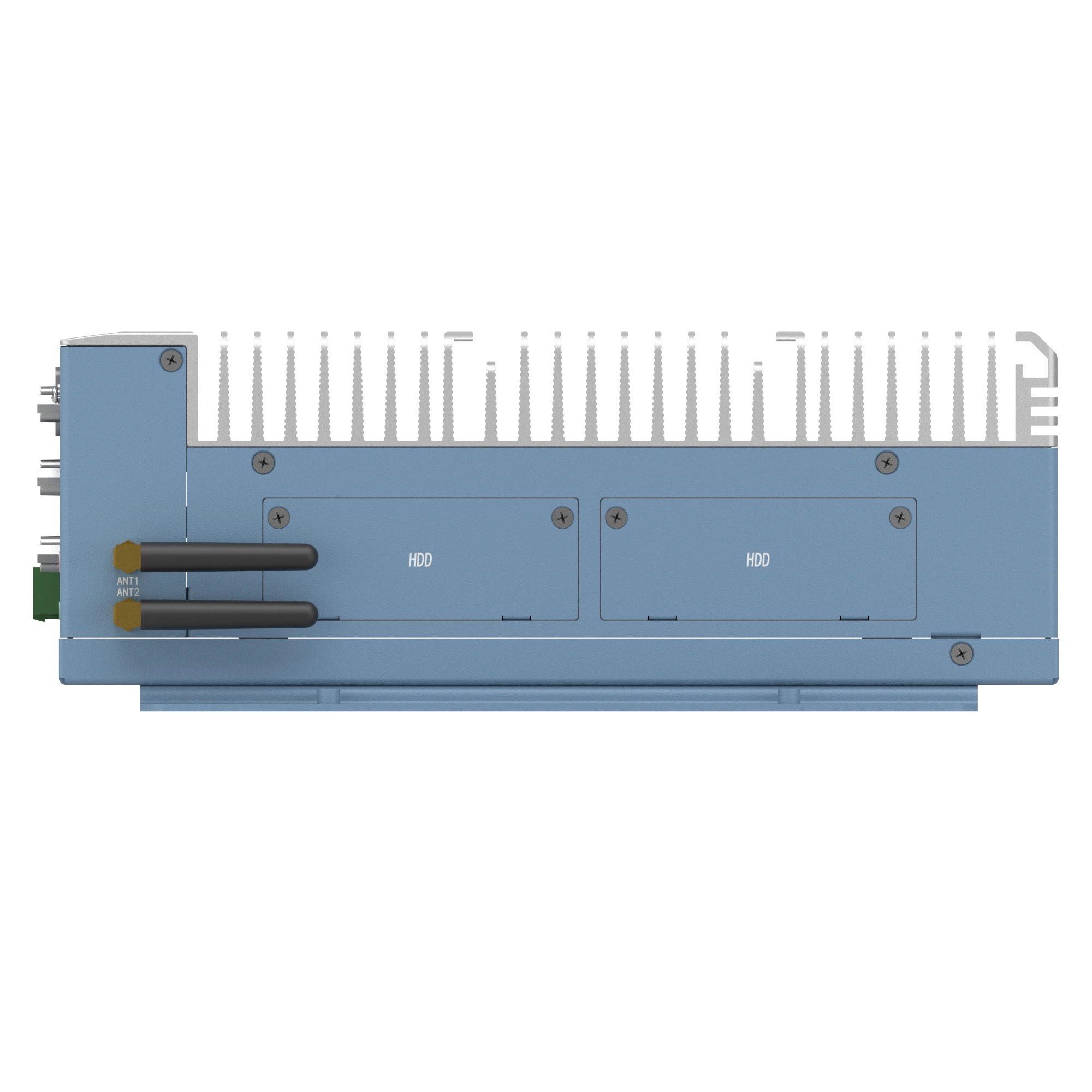

Storage | 2*2.5”easy-plug SATA bay, larger capacity thickness15mm HDD, with SATA3.0 signal max 6Gbps; 1*full size mSATA，with SATA3.0 signal, max 6Gbps |

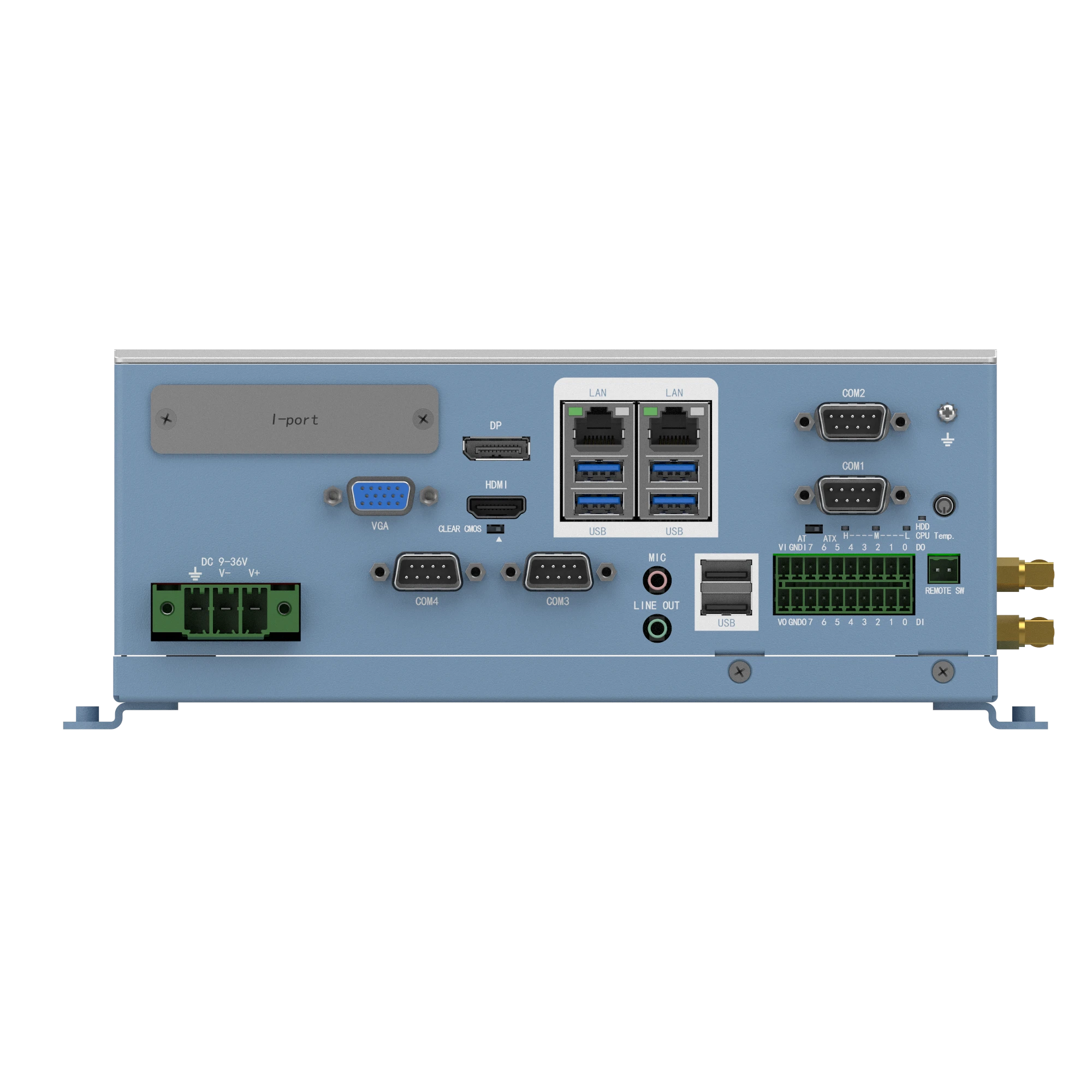

I/O Interface | 2*RJ45 Gig-LAN; 2*USB3.2(gen2.0 10Gbps, Type A); 2*USB3.2 (gen1.0 5Gbps, Type A) ; 2*USB2.0 Type A, 2*USB2.0 (pin header inside); 2*RS232/422/485 (via BIOS , DB9 male), 2*RS232(DB9 male); 16bit Iso. DIO(2*10pin term. block) and 16bit non-iso. DIO(2*10pin header inside); 1*VGA+1*HDMI+1*DP; 1*Line out+1*Mic (3.5mm phone jack); 1*SM Bus and 1*F-Audio(pin header inside) |
I-port | Support 16bit DIO pin header lead wire , USB2.0 or Mini PCIe and other expansion interfaces lead wire |
DIO | 16bit Iso. DIO support NPN (sink) and PNP (Source) mode, and 8-bit DI each channel is equipped with a 2.5KV photocouper for isolated protection; 8-bit DO each DO with isolator chip, each DO chanel current up to 200mA |
LED | 1*Power LED (on the power button), 1*HDD LED, 3*CPU temp LED（Red is warning , Yellow is high, Green is normal） |
Control SW | 1*Power SW, 1*Remote SW, 1*AT/ATX dip, 1*Clear CMOS dip |
Power supply | DC IN 9-36V, 3-pin Term. block 7.62mm，with short circuit(SCP), over voltage(OVP) and over current(OCP) protection; TDP : TBD |
Security | Support TPM2.0 (optional) |
Watchdog timer | Watchdog timeout programmable via software 1 to 255 second |
OS | Windows 11, Windows 10 IoT Enterprise 2021 LTSC, Ubuntu, SuSe, Red Hat Enterprise, Wind River Linux, Wind River VxWorks 7 |
Structure | Aluminium-magnesium alloy chassis and fanless cooling design, SGCC frame |
Color | Pigeon blue + White aluminum grey |
Mounting | Desktop Mounting |
Dimension | (L*W*H)：256.68*267.3*99mm |
Net weight | TBD |
Operating temperature | -20～60℃, SSD, air flow -10～55°C, HDD, air flow |
Storage temperature | -40°C~85°C |
Storage humidity | 10~95%@40°C, Non-condensing |
Vibration | 5grms/5~500Hz/random/in working(SSD); 1grms/5~500Hz/random/in working(HDD) |
Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD） |
EMC/ Certification | CE/FCC Class A |
