Fitur
- Intel® Xeon® E or 9th/8th-Gen Core™ i7/i5/i3 processor
- Intel® Q370/C246 Chipset
- 4*DDR4 2666/2400MHz DIMM, Up to 128GB
- 2*DP,1*HDMI, support 3 displays
- 3*LAN, 6*USB3.1 Gen2, 7*USB2.0, 4*COM
- 1*PCIeX16 or 2*PCIe X8+2*PCIe X 4 slot
- 1*Mini PCIe, with SIM Card slot, support 4G/WiFi/GPS/GSM/BT
- 4*SATA3, 1*M.2 2280 M-Key(PCIe X4)
- Support TPM2.0, Support AMT12.0, Intel® iVpro
- ATX Power(12V/5V/3.3V)
Spesifiaksi Lengkap
System | CPU | Intel® Xeon® E or 9th/8th-Gen Core™ i9/i7/i5/i3 LGA1151 processor，up to 8C/16T |
| Chipset | Intel® Q370 / Intel® C246 | |
| System Memory | 4*288-Pin SODIMM, dual channel DDR4 2666/2400MHz, up to 128GB | |
| Expansion | 1*Full size Mini PCIe(PCIe x1+USB) with SIM slot 2*PCIe X16 slot (PCIe Gen3, support 1 PCIex16 device, When connecting 2 devices, it automatically switches to 2*PCIe X8) 2*PCIe X8 slot (PCIe Gen3, 2*PCIe X4 signal) 1*M.2 2280 M-Key(Gen3, PCIeX4signal) | |
| Graphics | Intel® UHD Graphics, Supports DirectX11.1, OpenGL 5.0 and OpenCL 2.1 DP max. res.4096*2304@60Hz, HDMI max. res. 3840*2160@30Hz, support 3 independed display | |
| Audio | Realtek ALC662VD controller, Support 5.1 channel | |
| LAN | 2*Intel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps; 1*Intel I219LM PCIe Gig. Ethernet, 10/100/1000Mbps, support AMT12.0, support iVpro technology | |
| Keyboard & Mouse | PS/2 & USB Keyboard and mouse | |
| Storage | 4*SATA3, 6.0Gbps HDD/SSD support Raid 0/1/5/10 1*M.2 2280 M-key, Support NVMe storage | |
| DIO | 8 bit TTL signal, programmable input and output | |
| Internal I/O | 2*USB3.1 Gen2, 1*USB2.0 type A, 2*USB2.0 header, 4*COM header, PS/2 wafer 1*F_PANEL header (Power SW, Reset, LED, HDD LED), 8-bit DIO, 1*SM bus | |

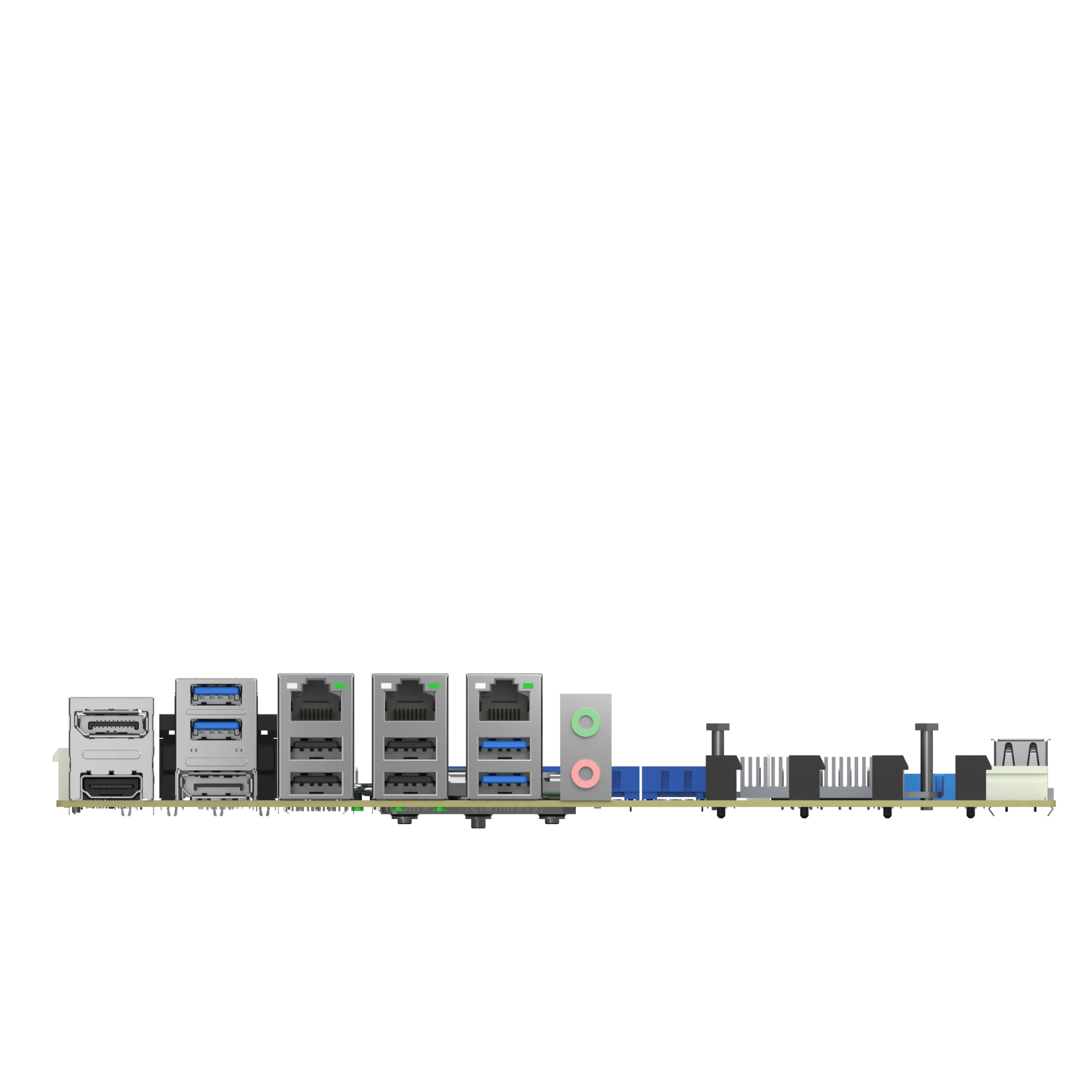

| Rear I/O | 3*RJ45 Gig-LAN 4*USB3.1 Gen2 Type A, 4*USB2.0 Type A Audio out, Mic 1*HDMI +2*DP | |
| Switch&LED | Pin header inside(Power SW, Reset, LED, HDD LED) | |
| Security | Support Infineon TPM2.0 | |
| Power Supply | 24-pin ATX/8-pin ATX 12V; TDP: 374W(I7-8700, 16GB DDR , 2*4TB SATA HDD, GTX-1660 Graphics) | |
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | |
| OS Support | Windows* 10 Enterprise & IOT Enterprise（64-bit）(CFL-R) Windows* Server 2016 (Intel® Xeon® E) Ubuntu*、SuSe*、Redhat Enterprise* 1,2 (Kernel 4.14) (CFL-R) Wind River* VxWorks* 7 (CFL-R) | |
Mechanical & Environmental | Dimension | (W*H): 244*244mm |
| Height | Top Side: 30.80mm; PCB: 1.6mm | |
| Operating Temperature | 0°C~60°C | |
| Storage Temperature | -40°C~85°C | |
| Storage Humidity | 10~90%@40°C, Non-condensing | |
| Certification/EMC | CE/FCC Class B |
