- Intel gen 8/9th Coffee lake-S LGA1151 CPU+H310 PCH
- Dual channel 2xDDR4 2666MHz UDIMM, up to 64GB
- Intel UHD Graphic, VGA+HDMI/ VGA +DVI-D/ HDMI+ DVI-D dual independent display
- 1xI219LM Gig. Ethernet+1xI226V Gig. Ethernet
- 4xUSB3.1, 5xUSB2.0 (two front and one built-in), Audio out and Mic
- 2xRS232/422/485, 1xRS232, optional 1xLPT or 8 bit DIO
- 1xPCIeX16+1xPCI+2xPCIeX4, 1*M.2 2242/2280 M-Key
- 1×3.5″+2×2.5“ SATA3.0 shock resistant and anti-vibration hard disk bay

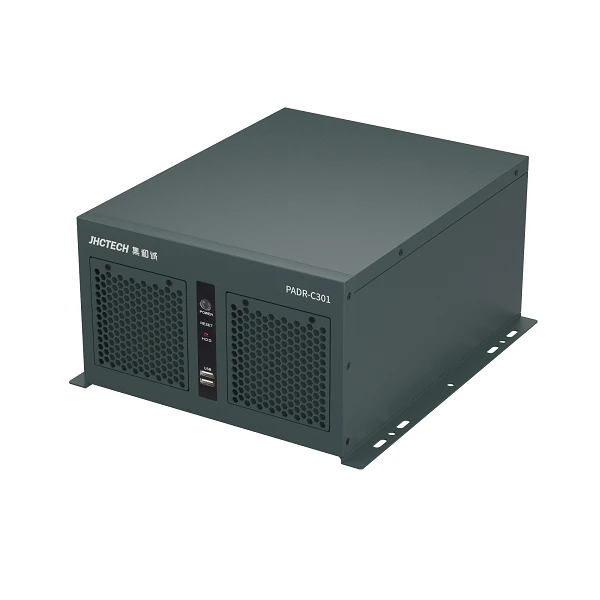

- 4-slot wall mounted chassis, standard 1U Flex power supply, optional for different powers
CPU+PCH | Intel gen 8/9th Coffee lake-S Core i9/i7/i5/i3/Pentium/Celeron LGA1151 CPU, up to 95W, H310 chipset |
Memory | 2×288-pin Non-ECC UDIMM , dual channel DDR4 2666MHz, up to 64GB |
Expansion | 1xPCIeX16 Gen3.0 slot, 2xPCIeX4 Gen2.0 slot (PCIeX1 signal), 1×32-bit PCI slot 1*M.2 2242/2280 M-Key（Gen2.0 PCIe X2 signal） |
Graphics | Intel UHD Graphics, Supports DirectX* 12, OpenGL 4.5 HDMI max. res. 4096*2034@24Hz，VGA max. res. 1920*1200@60Hz, DVI-D max. res. 1920*1200@60Hz |
Audio | Realtek ALC897 controller, Support 5.1 channel |
LAN | 1xIntel I226V，10M/100M/1000M self-adapt，support WOL 1xIntel I219LM，10M/100M/1000M self-adapt，support WOL |
Storage | 1×3.5“+2×2.5”SATA3.0, a set of anti-vibration hard disk bay |
Rear I/O | 2xLAN(RJ45); 1xHDMI+1xVGA+1xDVI-D; 1xLine out+1xMic 2×3.5mm phone jack 4xUSB3.1 Gen1 (5Gb/s, Type A), 2xUSB2.0(Type A)，support USB Power to switch between System mode(+5V) and +5VSB mode through jumper 2xRS232/422/485 (DB9 male), 1xRS232(DB9 male) |
Front I/O | 2xUSB2.0(Type A) |
Internal I/O | 8bit DIO, 2xUSB2.0(one Type A, one pin header), 1*LPT pin header, 3*RS232 pin header, 1xF_AUDIO, 1xAMP, 1xLPC, PS/2 wafer, the built-in interface can be elicited through an extension window |
Switch & LED | Front with Power Button, Reset Button, Power LED, HDD LED, on board with USB Power jumper, AT/ATX jumper, Clear CMOS jumper |
Power Supply | AC100-240V input, standard 1U power supply 300W, optional 500W (With GPU graphics card, up to 140W power graphics card); TDP: TBD |
Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second |
OS Support | Windows7、Windows* 10 Enterprise & IOT Enterprise (64 bit)(CFL-R); Windows* Server 2016 (Intel® Xeon® E) Ubuntu*、SuSe*; Redhat Enterprise* 1,2 (Kernel 4.14) (CFL-R) Wind River* ;VxWorks* 7 (CFL-R) |
Structure and Mounting | SGCC steel plate, metal mold molding; Desktop mounting & Wall mounting |
Cooling | Front two 9025B fans |
Color | Granite grey |
Dimension | (W*H*D) : 270x168x331.2mm (without mounting parts), 315.6×173.5×331.2 (horizontal desktop installation), 213.6×275.5×331.2 (vertical desktop installation) |
Height | 6.3 kg |
Operating Temperature | 0～50℃ (35W-65W CPU with 95W CPU WIND-COOLI; 95W CPU with 125W CPU WIND-COOLI) |
Storage Temperature | -40°C~85°C |
Storage Humidity | 10~95%@40°C, Non-condensing |
Vibration | 5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD) |
Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD） |
EMC/Certification | CE/FCC Class A |
